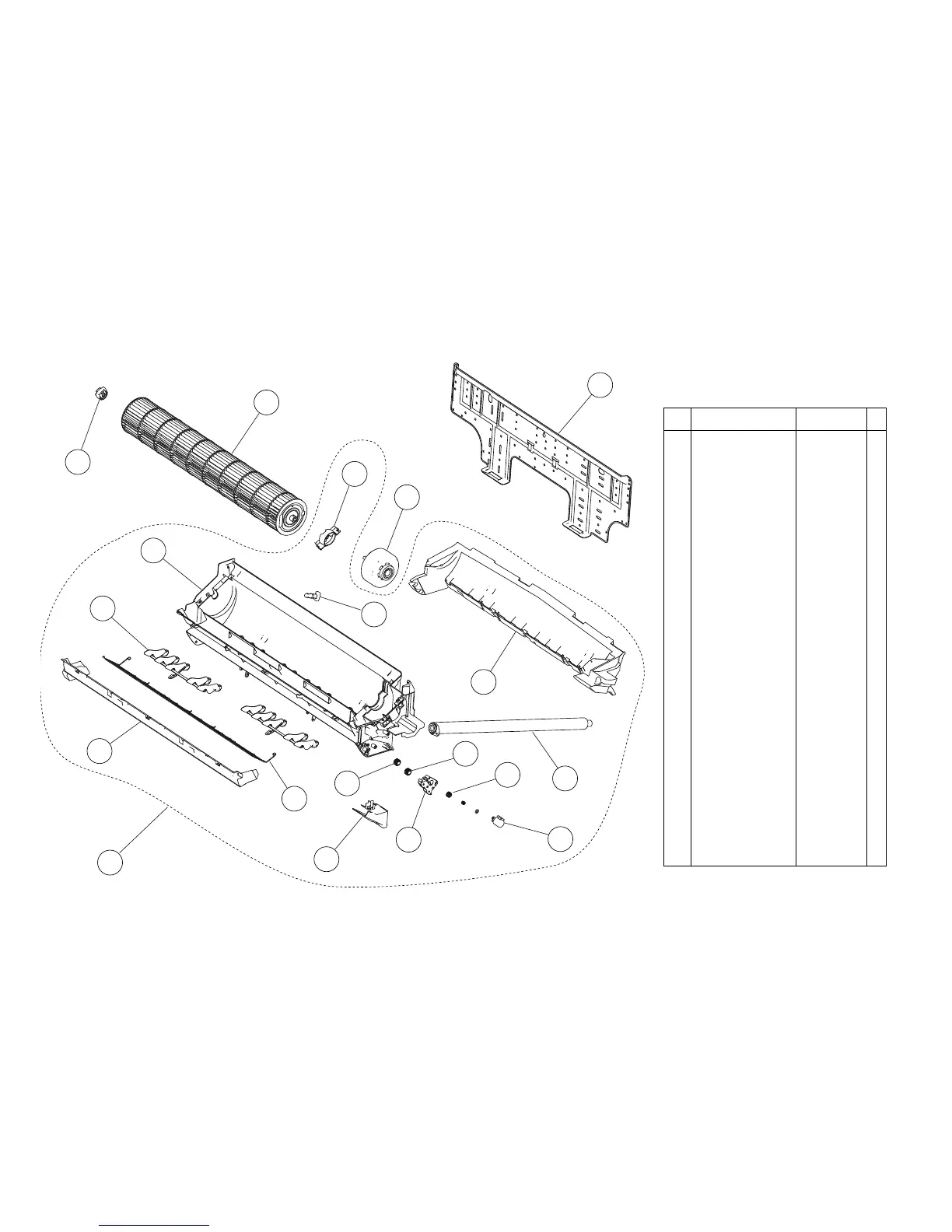

INDOOR UNIT
Casing assy
14
44 Fan Guard 9317182003
45 Fan Motor 9602704002
46 Crossflow Fan Assy 9316830004
47 Shaft Holder C 9306628017
48 Bracket Panel 9316590007
40 Gear A 9309994003
41 Motor Step 9900139193
42 Drain Hose Assy 9316904002
43 Drain Cap 9316177017
34 Cable Guide 9316567009
35 Casing Cover B 9316569003
36 Casing Cover F 9316570009
37 R and L Louver B 9316961005
31 Casing Assy 9316892095
32 Casing 9316563001
33 Motor Cover 9316568006
38 Louver Gear Holder 9316575004
39 Louver Gear 9316574007
Ref. Description Part number
2012.12.26
