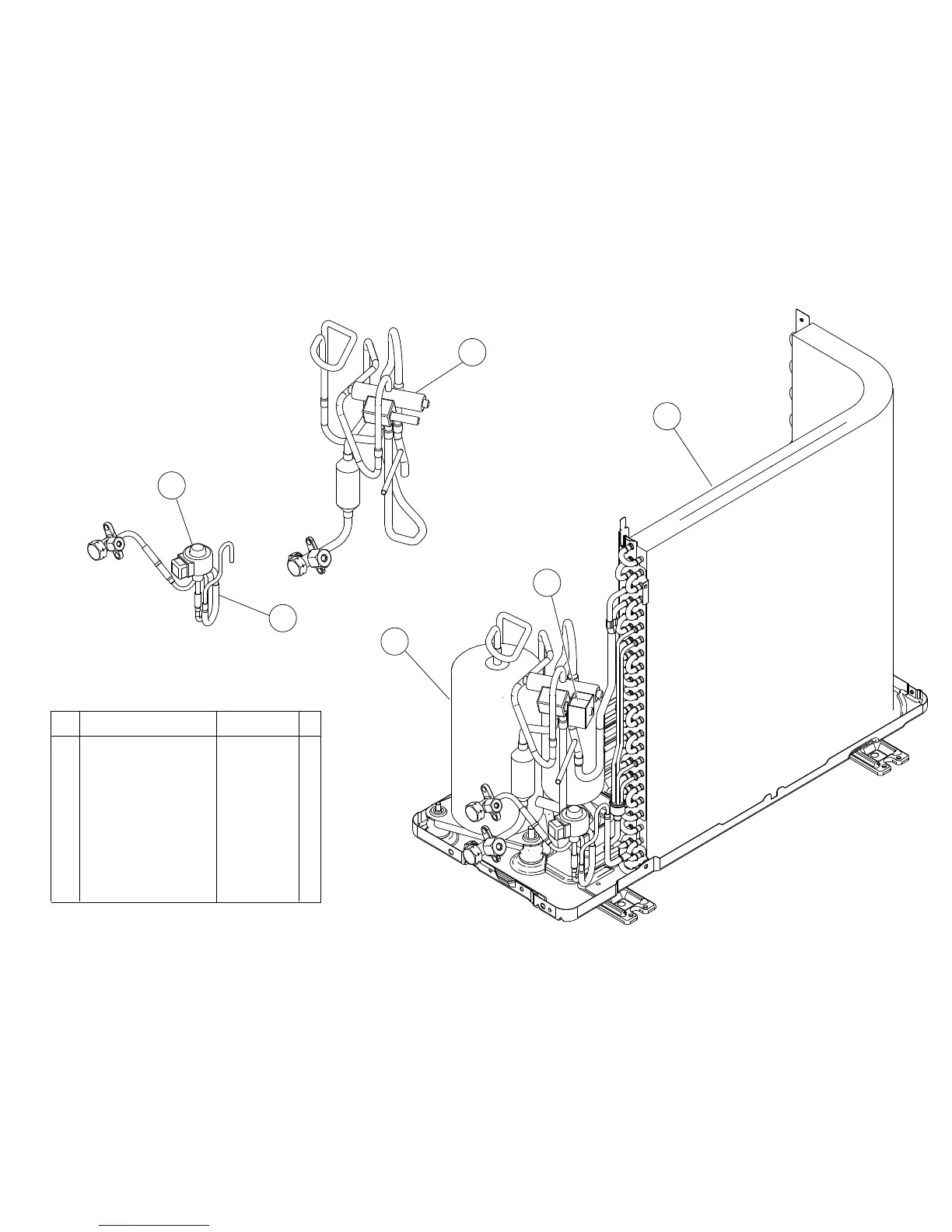

OUTDOOR UNIT
AOYG12LLCC
42
41
43
46
45
44
2013.09.30 19
42 Compressor Assy 9333141008
46
Pulse Motor Valve Sub Assy
9333023007
45 Expansion Valve Coil 9970137013
43 Solenoid 9970079030
41 Condenser Total Assy 9333013008
44 4-way Valve Assy 9333135007
Ref. Description Part number
