8. Remote controller

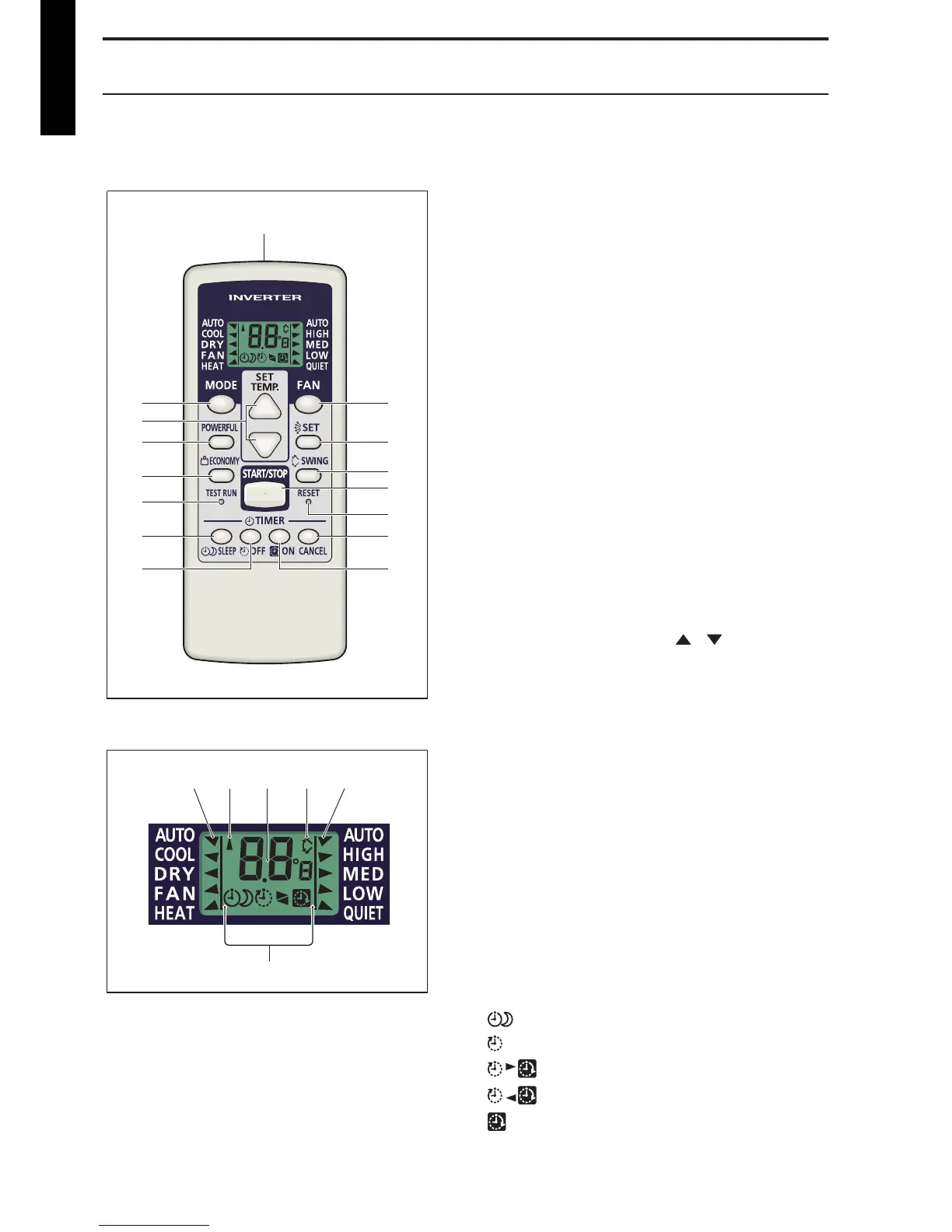

8-1. Wireless remote controller
¢
Overview
o
b
d
e
f
a
c
g
i
j
k
l
n
m
h
Display panel
u
rs
ptq
a FAN button
b SET button
c SWING button
d START/STOP button
e RESET button
f TIMER CANCEL button
g ON TIMER button
h OFF TIMER button
i SLEEP TIMER button
j TEST RUN button
• Used only when installing the air conditioner, and should
not be used under normal conditions, as it will cause the
indoor unit’s thermostat malfunction.
• If this button is pressed during normal operation, the in-
door unit will switch to test operation mode, and the oper-
ation indicator lamp and the timer indicator lamp on the
indoor unit will begin to flash simultaneously.
• To stop the test operation mode, press the START/STOP
button. Then, the air conditioner stops the operation.
k ECONOMY button
l POWERFUL button
m
SET TEMP. (temperature) (
/ ) button
• Sets desired temperature.
• Sets remote controller custom code.
n MODE button
• Switches operation mode (AUTO, COOL, DRY, FAN, and
HEAT).
• Starts/ends the remote controller custom code (max. 4
types) change.
o Signal transmitter
p Operating mode indicator
q Signal transmit indicator
r Temperature and time indicator
• Displays set temperature.
• In timer setting, it displays the timer time. After finishing
the timer setting, set temperature will reappear.
s Swing indicator
t Fan speed indicator
u Timer mode indicator
•
Sleep timer
•
OFF timer
• OFF-ON timer
• ON-OFF timer
• ON timer
DESIGN & TECHNICAL MANUAL
- 14 -
WALL MOUNTED ASYG07-12LLCE

Fujitsu ASYG09LLCE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Inverter technology	Yes
Refrigerating medium	R410A
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	650 g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Heating capacity in watts (nominal) (Average heating season)	3000 W
Airflow	1670 m³/h
Outdoor unit noise level	- dB
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	127 kWh
Hourly energy consumption (cooling)	- kWh
Indoor unit type	Wall-mountable
Indoor unit depth	206 mm
Indoor unit width	820 mm
Indoor unit height	262 mm
Indoor unit weight	7000 g
Indoor unit noise level (high speed)	720 dB
