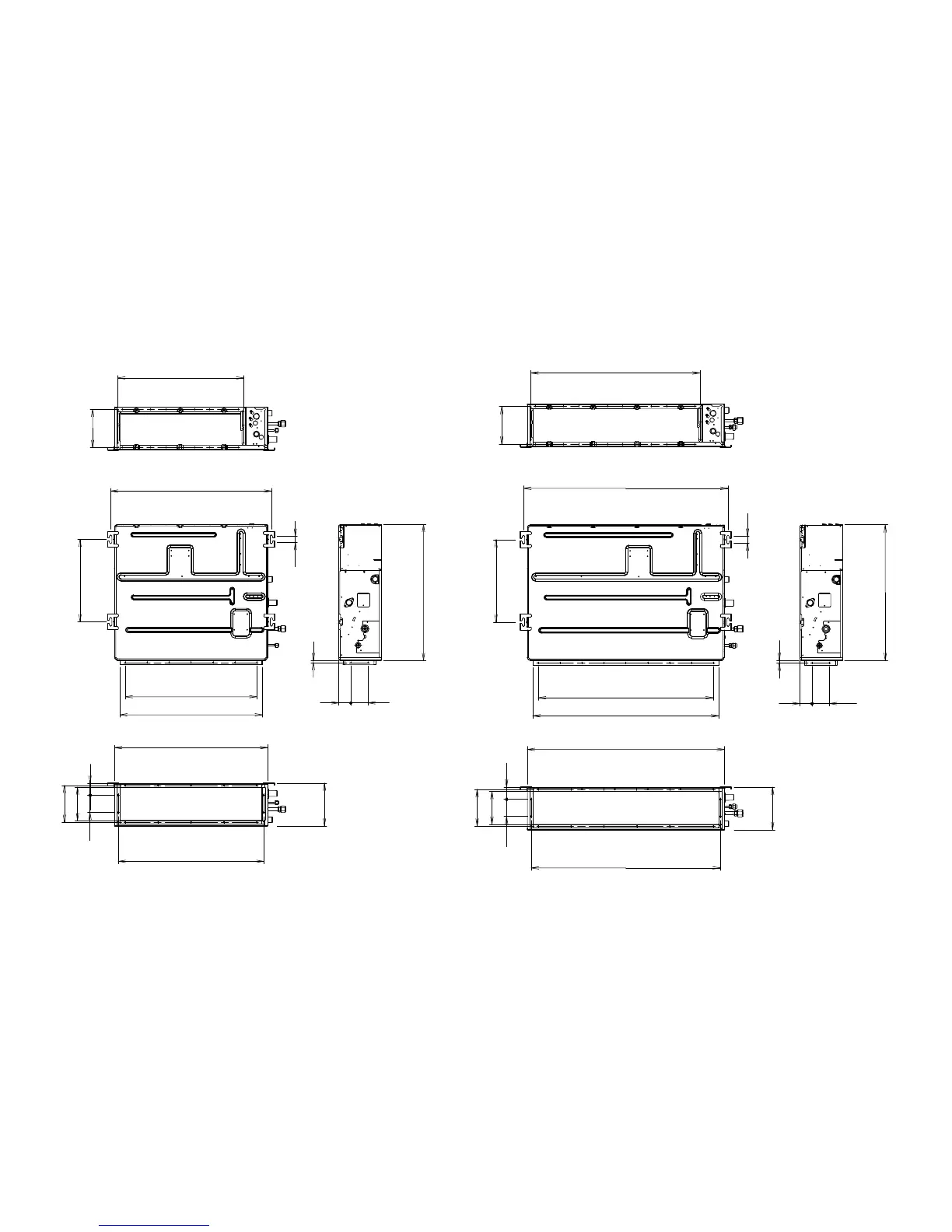

INDOOR UNIT
SLIM DUCT
ARYG07LLTA
ARYG09LLTA
ARYG12LLTA
ARYG14LLTA
ARYG12LLTB
ARYG14LLTB
(Serial number : T)
574 mm
174
100 x 6 = 600
650 mm
734 mm
30
377 mm
78
55
10
620 mm
664 mm
700 mm
198
168
151
78
55
2013.01.22 14
INDOOR UNIT
SLIM DUCT
ARYG18LLTA
ARYG18LLTB
(Serial number : T)
774 mm
174
850 mm
934 mm
100 x 8 = 800
30
377 mm
78
55
10
620 mm
864 mm
900 mm
198
168
151
78
55
Unit : mm
