6. SYSTEM DESIGN

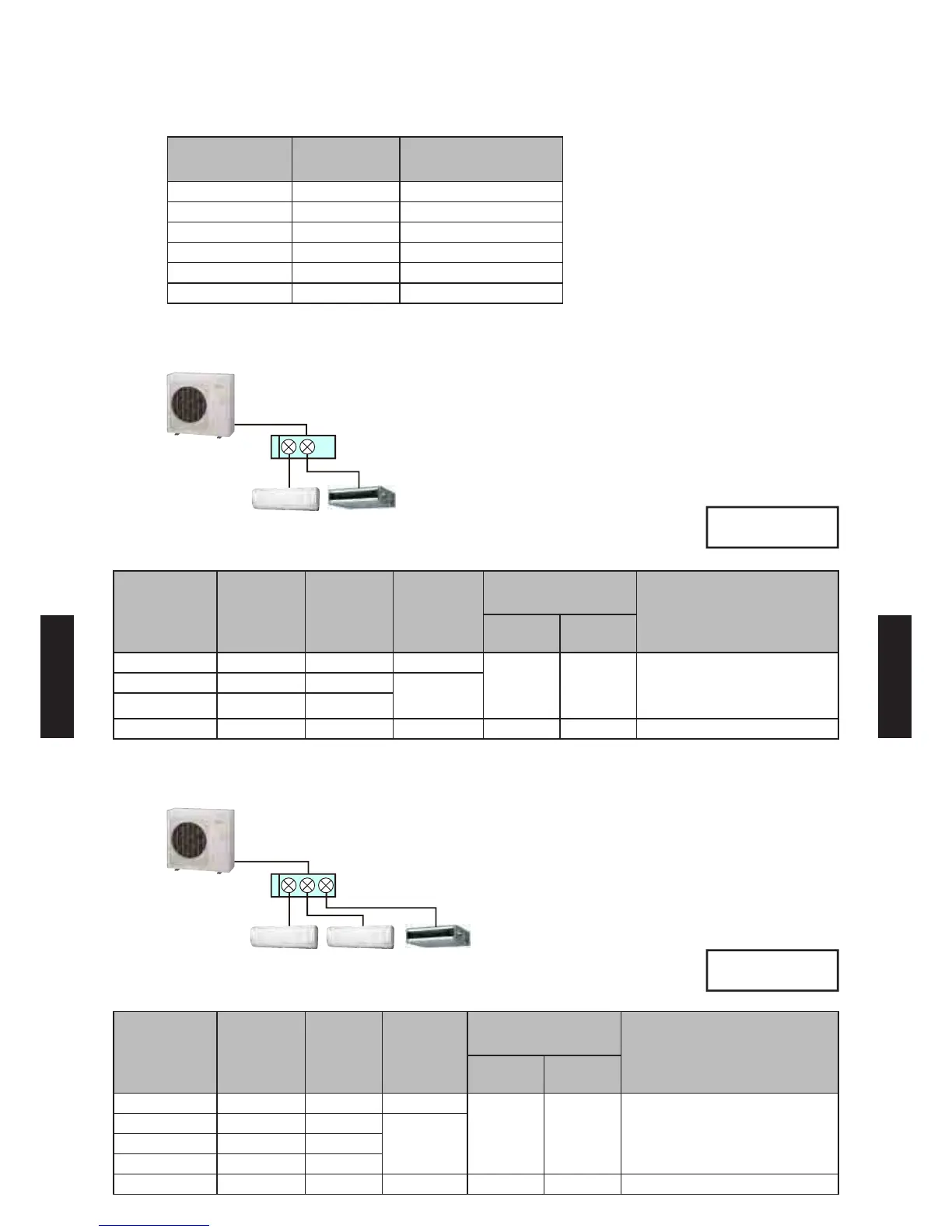

EXAMPLE OF REFRIGERANT SYSTEM

Rated capacity of cooling

Model code
Capacity class
(kW)
Rated capacity of
cooling (kW)
07 2.0 2.05
09 2.5 2.64
12 3.5 3.52
14 4.0 4.10
18 5.0 5.27
24 7. 0 7.0 3
Example 1 (OK)

Outdoor unit
Indoor unit 1
Branch box 1
(2 branches type)
Indoor unit 2
Model
Rated
capacity
of cooling
(kW)
Total
capacity
(kW)
Connectable indoor
unit capacity (kW)
Judgement
Min. Max.
Outdoor unit AO45 14.0 14.0

80%
11.2

130%
18.2





.  .  .  
Indoor unit 1 AS24 7.03

12.3
Indoor unit 2 AR18 5.27
Branch box 1
UTP-PY02A
-
-
- -
-
Example 2 (OK)

Branch box 1
(3 branches type)
Outdoor unit
Indoor unit 1 Indoor unit 2 Indoor unit 3
Model
Rated
capacity
of cooling
(kW)
Total
capacity
(kW)
Connectable indoor
unit capacity (kW)
Judgement
Min. Max.
Outdoor unit AO45 14.0 14.0

80%
11.2

130%
18.2





.  .  .  
Indoor unit 1 AS24 7.03

17.58
Indoor unit 2 AS24 7.03
Indoor unit 3 AR12 3.52
Branch box 1
UTP-PY03A
-
-
- -
-
Capacity ratio
88%
Capacity ratio
126%
- (06 - 03) -
