6. SYSTEM DESIGN

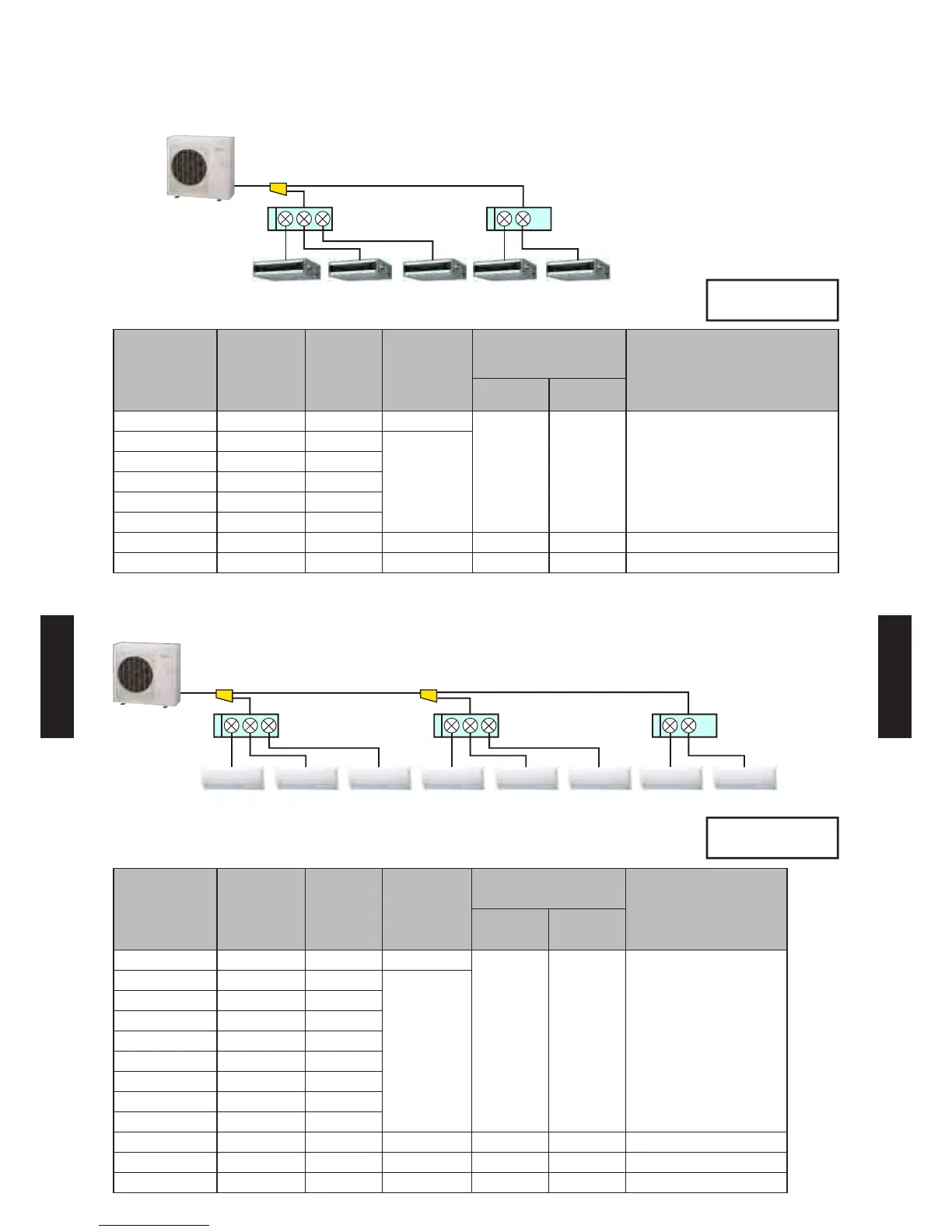

Example 3 (OK)

Outdoor unit
Indoor unit 1
Branch box 1
(3 branches type)
Branch box 2
(2 branches type)
Indoor unit 2
Indoor unit 3
Indoor unit 4
Indoor unit 5
Model
Rated
capacity
of cooling
(kW)
Total
capacity
(kW)
Connectable indoor
unit capacity (kW)
Judgement
Min. Max.
Outdoor unit AO45 14.0 14.0

80%
11.2

130%
18.2





.  .  .  
Indoor unit 1 AR18 5.27

16.71
Indoor unit 2 AR12 3.52
Indoor unit 3 AR09 2.64
Indoor unit 4 AR09 2.64
Indoor unit 5 AR09 2.64
Branch box 1
UTP-PY03A
-
-
- -
-
Branch box 2
UTP-PY02A
-
-
- -
-
Example 4 (OK)

Branch box 1
(3 branches type)
Branch box 2
(3 branches type)
Branch box 3
(2 branches type)
Outdoor unit
Indoor unit 1 Indoor unit 2 Indoor unit 3 Indoor unit 4 Indoor unit 5 Indoor unit 6 Indoor unit 7 Indoor unit 8
Model
Rated
capacity
of cooling
(kW)
Total
capacity
(kW)
Connectable indoor
unit capacity (kW)
Judgement
Min. Max.
Outdoor unit AO48 14.0 14.0

80%
11.2

130%
18.2





.  .  .  
Indoor unit 1 AS07 2.05

16.4
Indoor unit 2 AS07 2.05
Indoor unit 3 AS07 2.05
Indoor unit 4 AS07 2.05
Indoor unit 5 AS07 2.05
Indoor unit 6 AS07 2.05
Indoor unit 7 AS07 2.05
Indoor unit 8 AS07 2.05
Branch box 1
UTP-PY03A
-
-
- -
-
Branch box 2
UTP-PY03A
-
-
- -
-
Branch box 3
UTP-PY02A
-
-
- -
-
Capacity ratio
119%
Capacity ratio
117%
- (06 - 04) -
