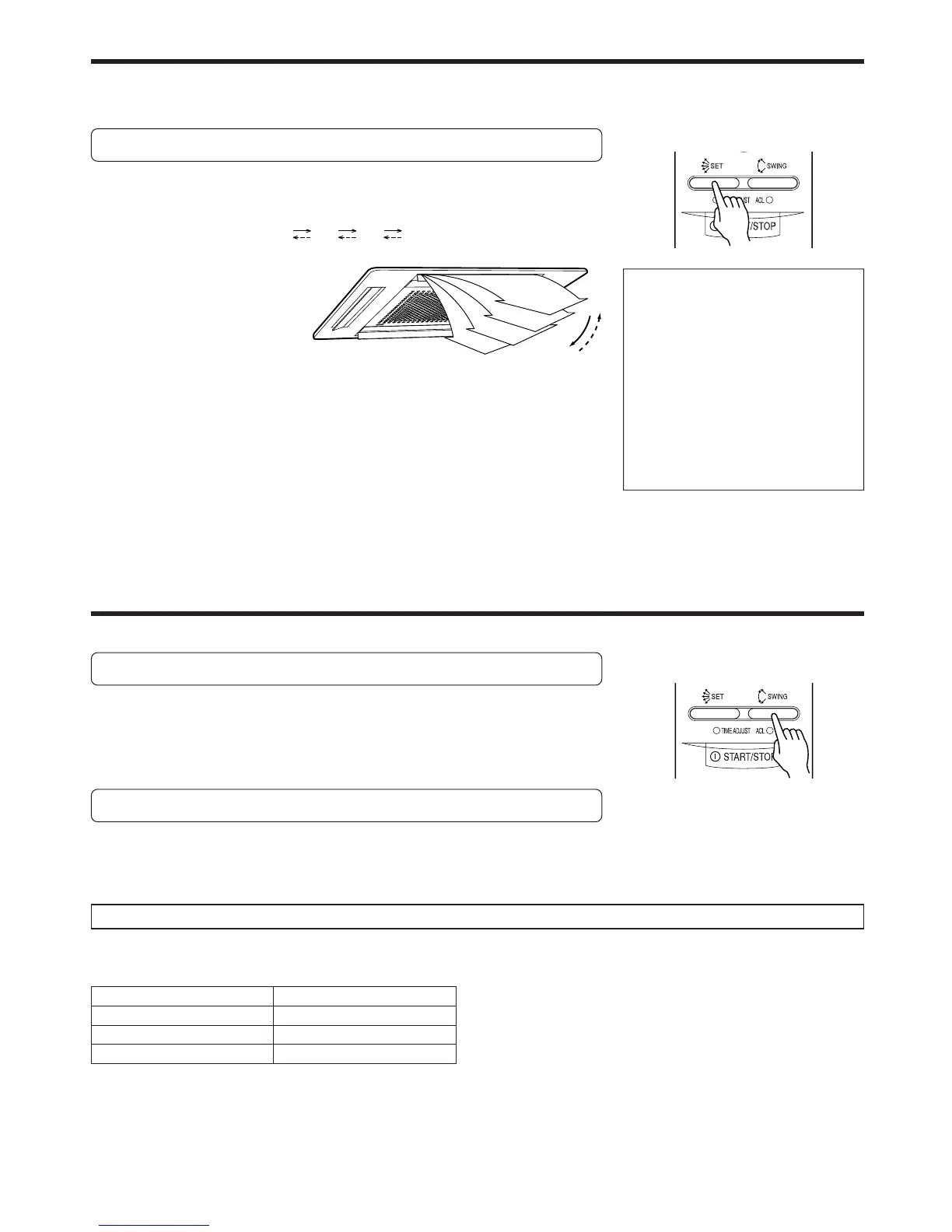

Vertical Air Direction Adjustment
Press the AIR FLOW DIRECTION SET button.
Each time the button is pressed, the air direction range will change as follows:
1
2 3 4
The remote control unit’s display
does not change.
Fig. 8
● Use the air direction adjustments within the ranges shown above.
● The vertical airflow direction is set automatically as shown, in accordance with
the type of operation selected.
During Cooling/Dry mode : Horizontal flow 1
* During Heating mode : Downward flow 4
● During AUTO mode operation, for the first minute after beginning operation,
airflow will be horizontal 1; the air direction cannot be adjusted during this pe-
riod.
ADJUSTING THE DIRECTION OF AIR CIRCULATION
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
Begin air conditioner operation before performing this procedure.
● Always use the remote control unit’s
AIR FLOW DIRECTION SET button to
adjust the UP/DOWN air direction
flaps. Attempting to move them manu-
ally could result in improper operation;
in this case, stop operation and restart.
The louvers should begin to operate
properly again.
● When used in a room with infants, chil-
dren, elderly or sick persons, the air
direction and room temperature
should be considered carefully when
making settings.
SWING OPERATION
Begin air conditioner operation before performing this procedure.
To Select SWING Operation
Press the AIR FLOW DIRECTION SWING button.
The SWING indicator lamp (orange) will light.
In this mode, the UP/DOWN air direction flaps will swing automatically to direct the
air flow both up and down.
To Stop SWING Operation
Press the AIR FLOW DIRECTION SWING button once again.
The SWING indicator lamp (orange) will go out.
Airflow direction will return to the setting before swing was begun.
● The range of swing is relative to the currently set airflow
direction.
Air direction range (See Fig. 8)
● If the swing range is not as desired, use the remote con-
trol unit’s AIR FLOW DIRECTION SET button to change
the range of swing.
● The SWING operation may stop temporarily when the air
conditioner’s fan is not operating, or when operating at
very low speeds.
About Swing Operation
Air flow direction set
1
2, 3
4
Range of swing
1 to 3
2 to 4
1 to 4 (All range)
1
2
3
4
