– 3 –

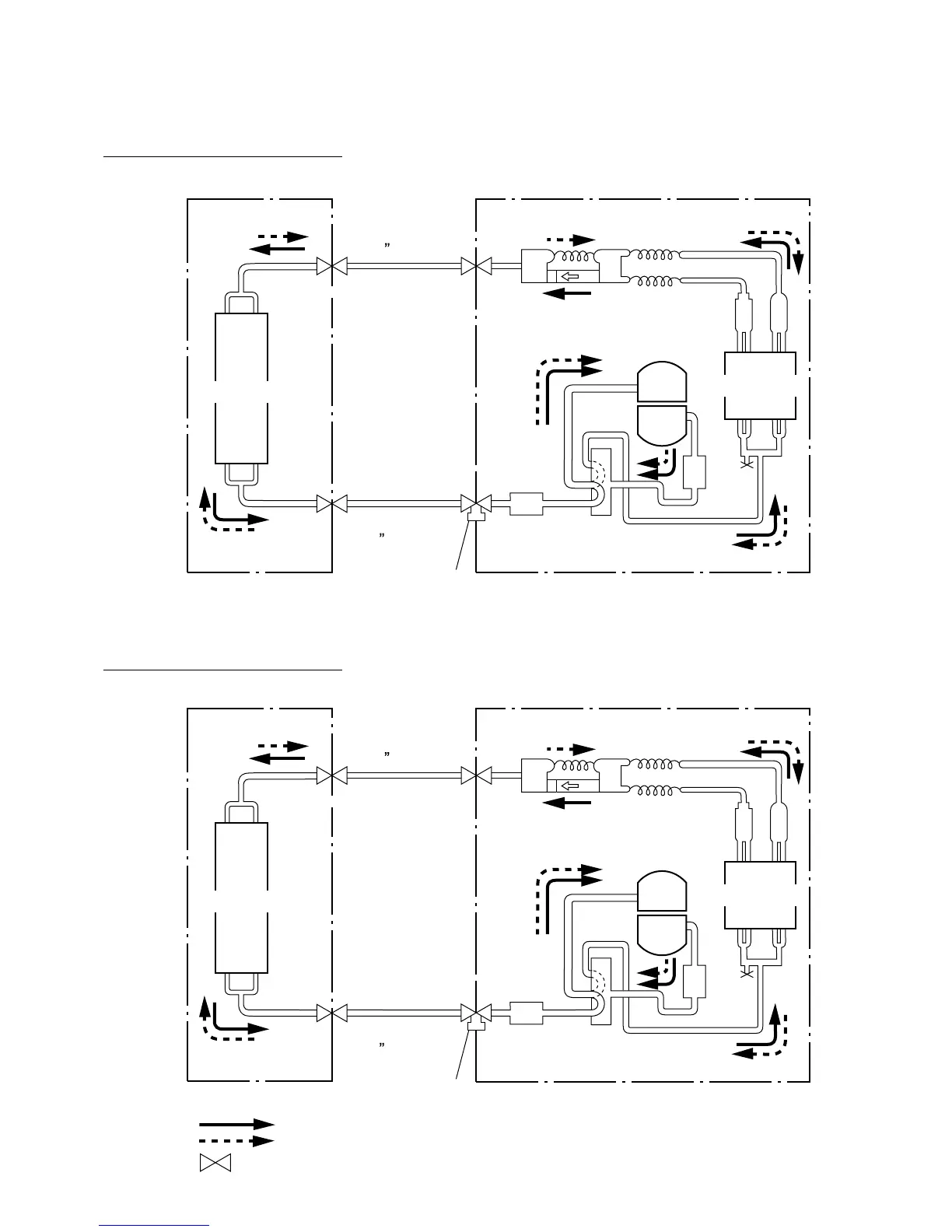

REFRIGERANT SYSTEM DIAGRAM
Models : AUU18RC / AOU18RC
Models : AUU24RC / AOU24RC
Indoor Unit
Refrigerant pipe
ø 3/8”(9.53mm)
Refrigerant pipe
ø 5/8 (15.88mm)
Capillary
tube
Outdoor Unit
Condenser
Muffler
Muffler
Compressor
Strainer
Dryer
4-Way
valve
Cooling
: Flare coupling
Charging valve
Evaporator
Distributor
Indoor Unit
Refrigerant pipe
ø 3/8 (9.53mm)
Refrigerant pipe
ø 5/8 (15.88mm)
Capillary
tube
Outdoor Unit
Condenser
Muffler
Muffler
Compressor
Strainer
Dryer
4-Way
valve
Cooling
Heating
: Flare coupling
Charging valve
Evaporator
Distributor
