– 6 –
OUTDOOR PRINTED CIRCUIT BOARD

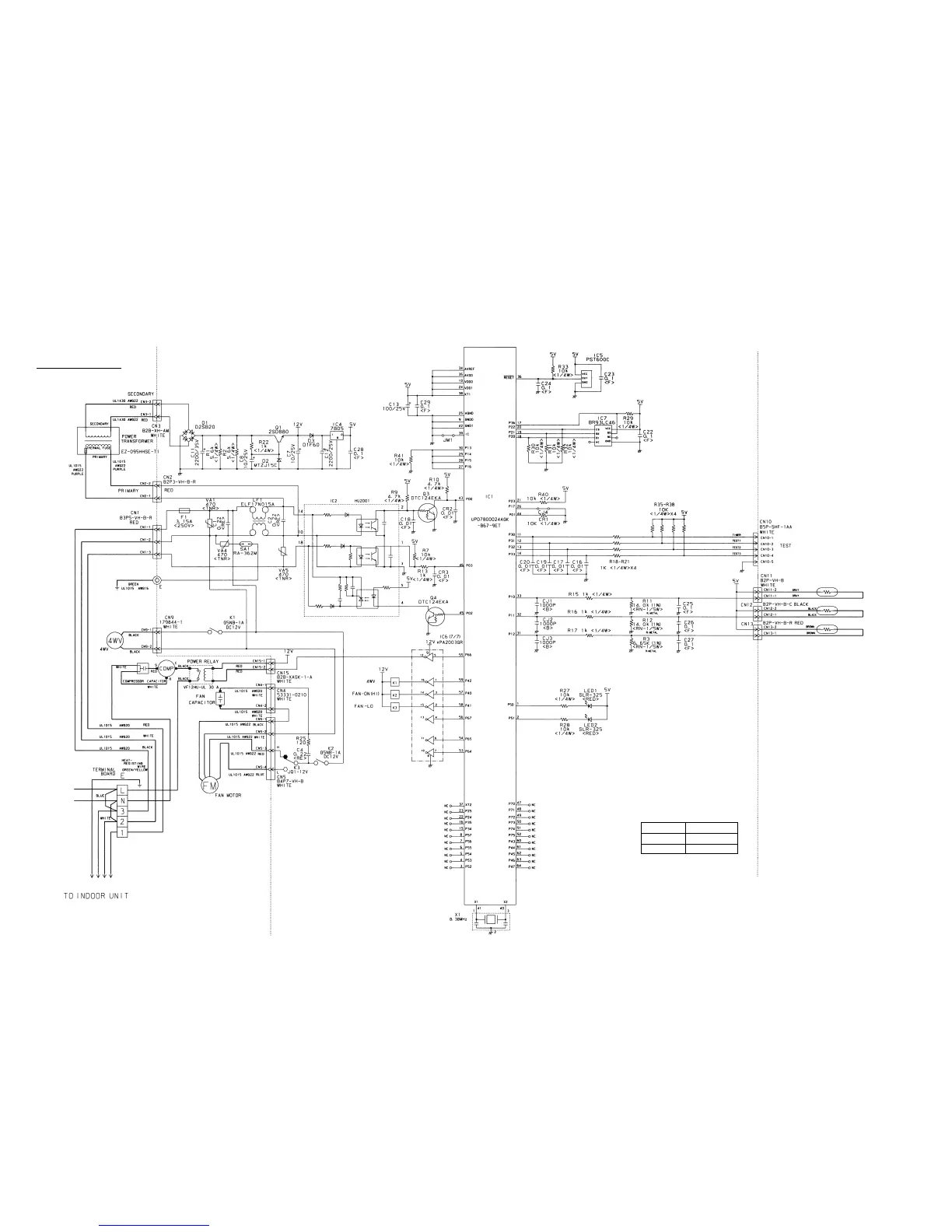

CIRCUIT DIAGRAM
Models : AOU18RC
AOU24RC
POWER
SOURCE
208V/230V
60 Hz
COMPRESSOR CAPACITOR
PIPE TEMPERATURE THERMISTOR
OUTDOOR TEMPERATURE THERMISTOR
DISCHARGE THERMISTOR
CONTROLLER PCB ASSEMBLY
EZ–0010HUE
–
C
MODEL No. CAPACITANCE
AOU18RC 30µF 400VAC
AOU24RC 35µF 400VAC
