11-4. Wall mounted type (KGTE, KMTE, KMCE, KETE, and
KETE-B)
Rotary switchSW302
CN308
SW301

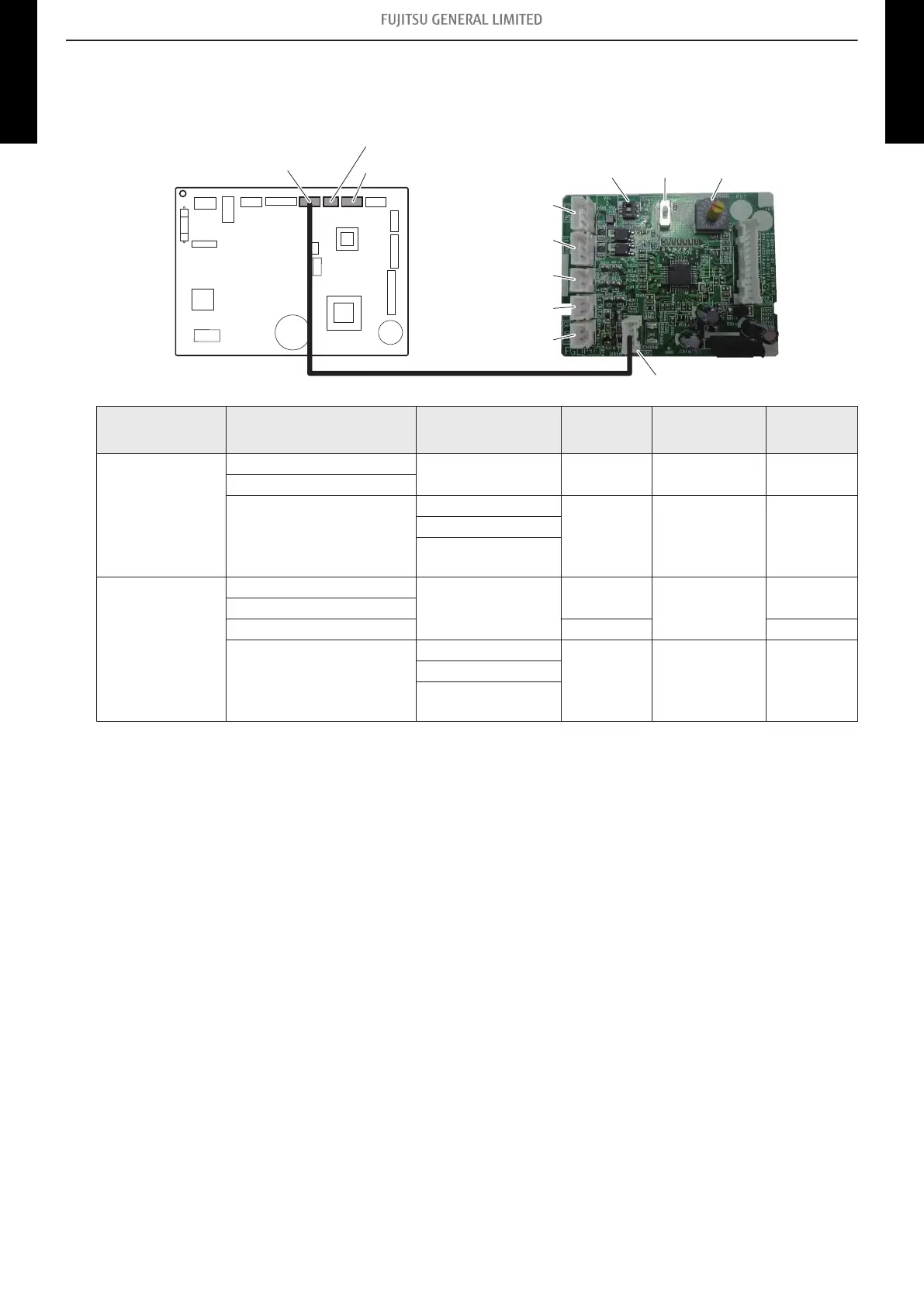

External input and output PCB
Indoor unit PCB
CN314
CN313
CN312
CN311
CN310
CN65
(Ext. in/out PCB)
CN47 (Ext. out)
CN46 (Ext. in)
PCB External input External output Connector Input select
Input
signal
Indoor unit
Operation/Stop
— CN46 Dry contact Edge
Forced stop
—
Operation status
CN47 — —
Error status
Indoor unit fan
operation status
External input
and output
(UTY-XCSXZ2)
Operation/Stop
—
CN313/
CN314
Dry contact/
Apply voltage
Edge/Pulse
Forced stop
Forced thermostat off CN313 Edge
—
Operation status
CN310/
CN311/
CN312
— —
Error status
Indoor unit fan
operation status
