Models: ASYG18KMTE, ASYG22KMTE, and ASYG24KMTE
Unit: mm
for pipe inlet Ø65
50
60
430
52
980 240
280

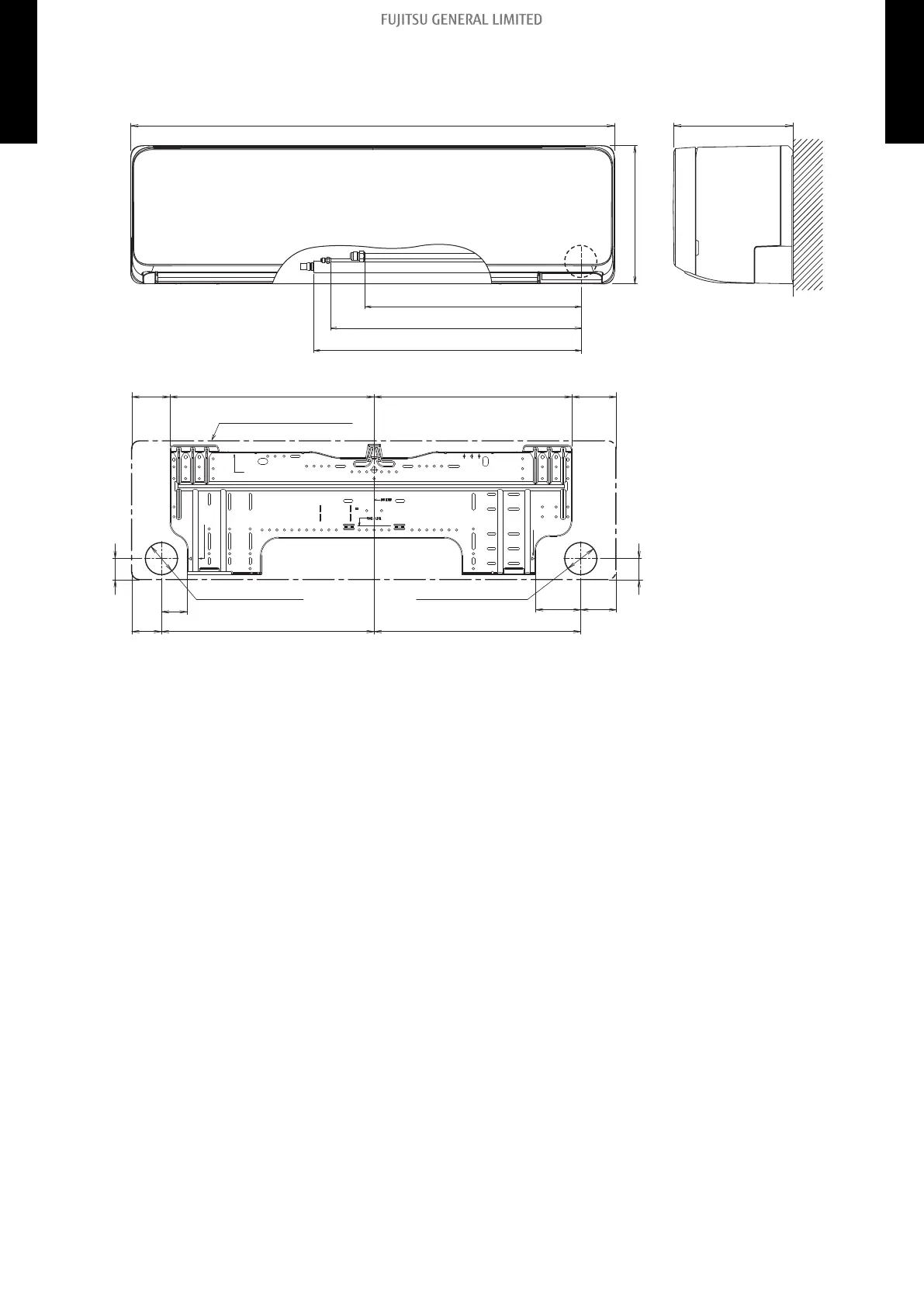

Outline of indoor unit
for pipe inlet Ø65
400413 9077
50
72
418
91
417
482
510
- 45 -
3-5. Wall mounted type 3. Dimensions
4-5 UNIT
MULTI-SPLIT TYPE
4-5 UNIT
MULTI-SPLIT TYPE
