4-4. Indoor unit fan motor

¢ Models: AUXG18KVLA, AUXG22KVLA, and AUXG24KVLA

Check point 1. Check rotation of fan

Rotate the fan by hand when operation is off.

(Check if fan is caught, dropped off or locked motor)

→ If fan or bearing is abnormal, replace it.

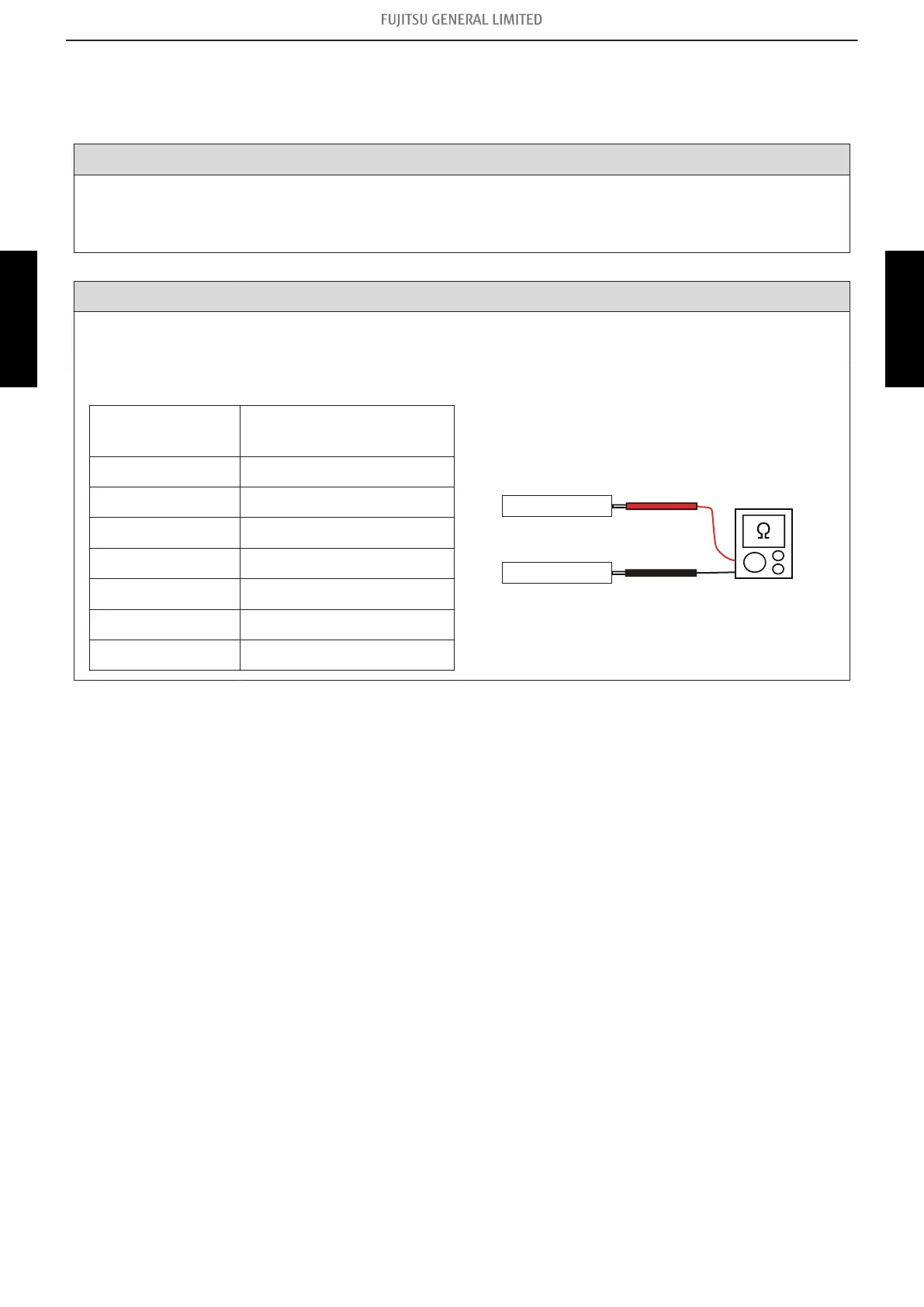

Check point 2. Check resistance of indoor fan motor

Refer to below. Circuit-test “Vm” and “GND” terminal

NOTE: Vm: DC voltage, GND: Earth terminal

→ If they are short-circuited (below 300 kΩ), replace indoor fan motor and controller PCB.

Pin number

(wire color)

Terminal function

(symbol)

1 DC voltage

4 Earth terminal

1 (Red) DC voltage (Vm)

2 No function

3 No function

4 (Black) Earth terminal (GND)

5 (White) Control voltage (Vcc)

6 (Yellow) Speed command (Vsp)

7 (Brown) Feed back (FG)

4-4. Indoor unit fan motor - (03-63) - 4. Service parts information
