Fujitsu AUXG18KVLA Service Manual

1-4. Duct type (setting by DIP switch)
By using some components on the PCB, you can change the function settings.
Related components on the PCB and the applicable settings:
Component Setting content
DIP switch
SW100
1
Remote controller address setting
2
3
4
SW101
1 Setting change prohibited
2 Setting change prohibited
3 Fan delay setting
¢ Component location

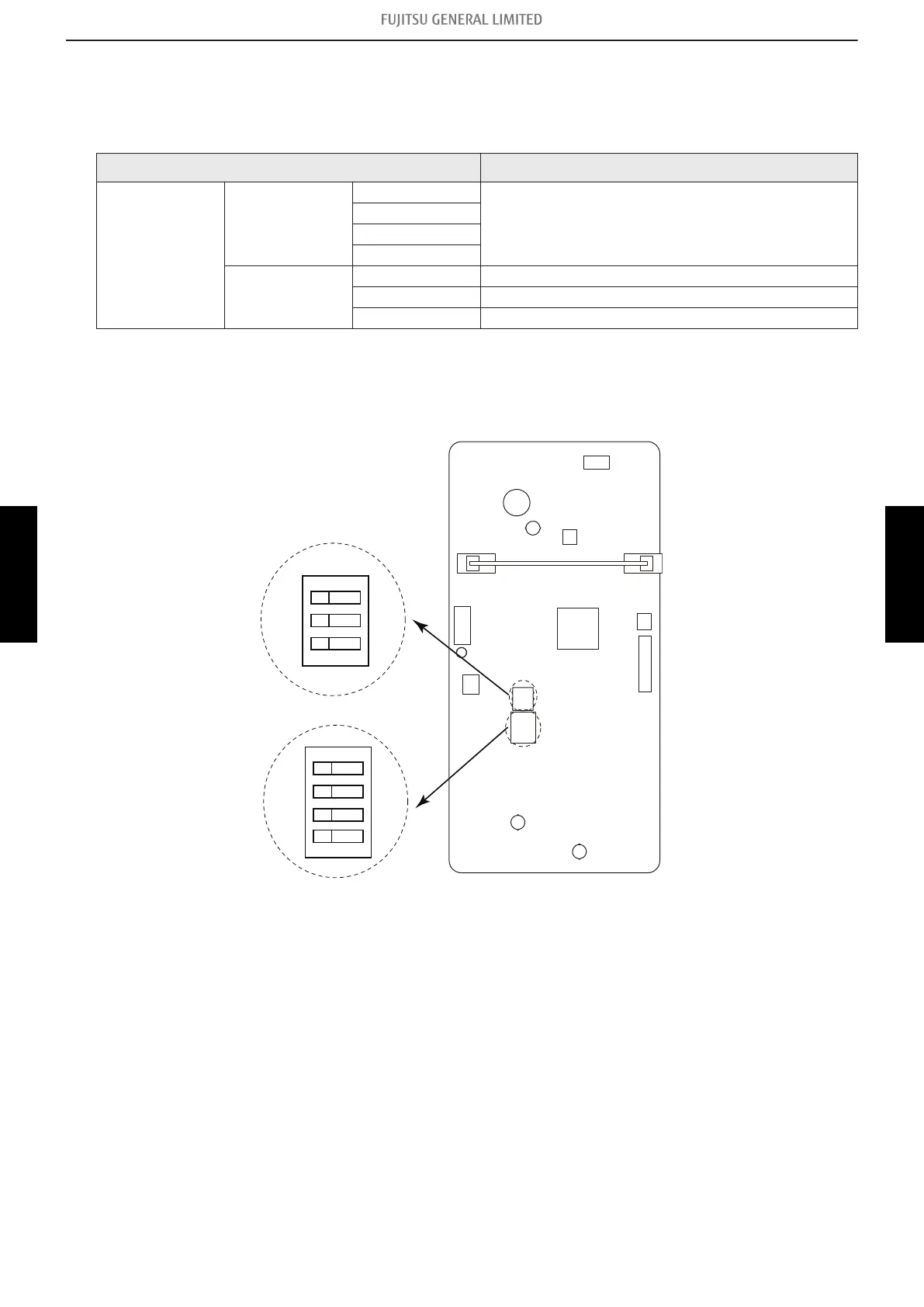

Components on the indoor unit main PCB used for the function settings are located as shown in
the following figure.
SW100
1
2
3
4
SW101
1
2
3
1-4. Duct type (setting by DIP switch) - (05-9) - 1. Function settings
