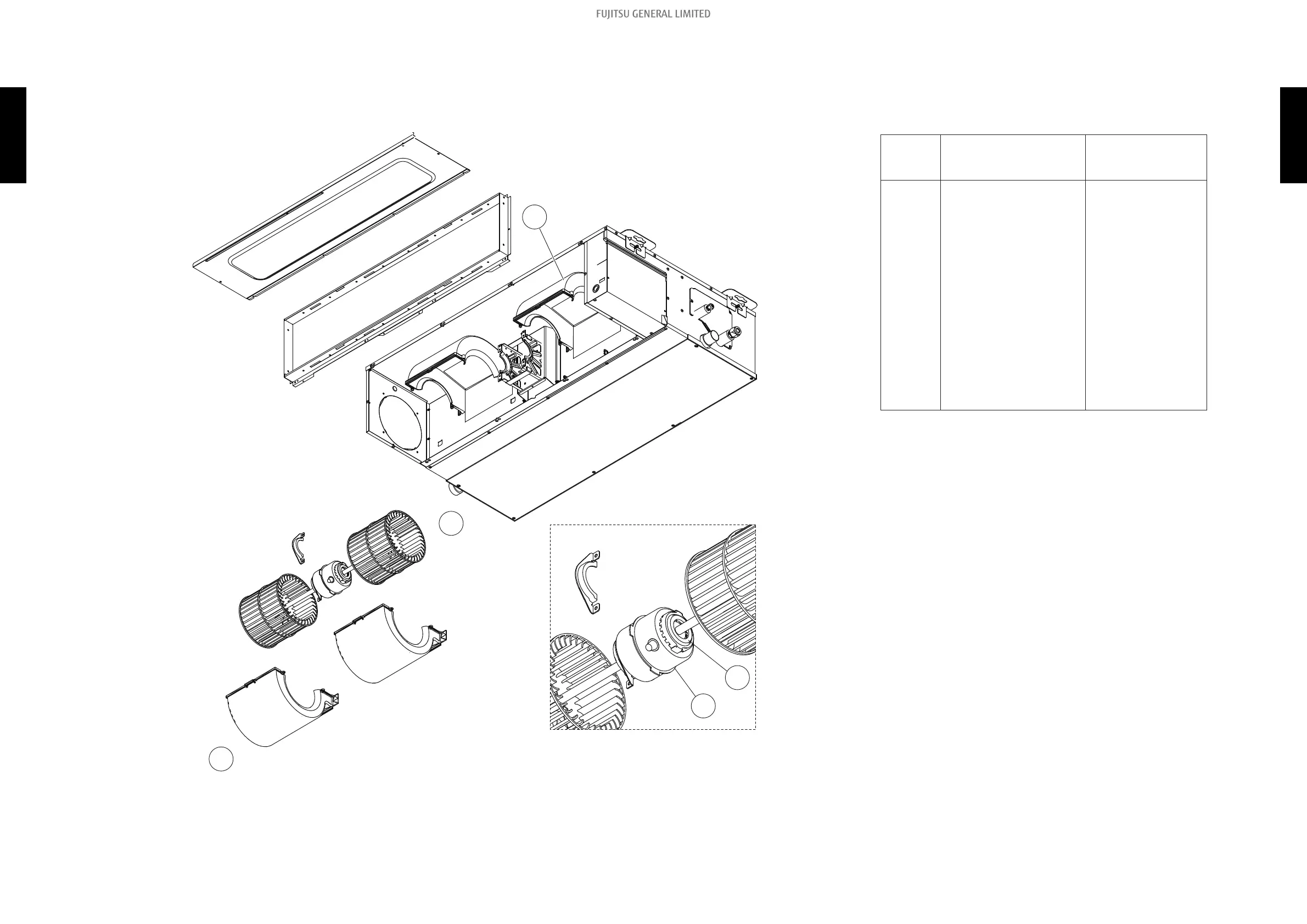

Intake cover sub assy
Intake frame assy
32 Casing B 9374234028
33 Sirocco fan assy 9356531060
35 Rubber 9385102002
31 Casing A 9374233021
34 Fan motor assy 9380718031
Ref.
Description
Part number
35
34
Motor bracket
3-3. Models: ARXG22KMLA and ARXG24KMLA - (02-17) - 3. Indoor unit parts list
