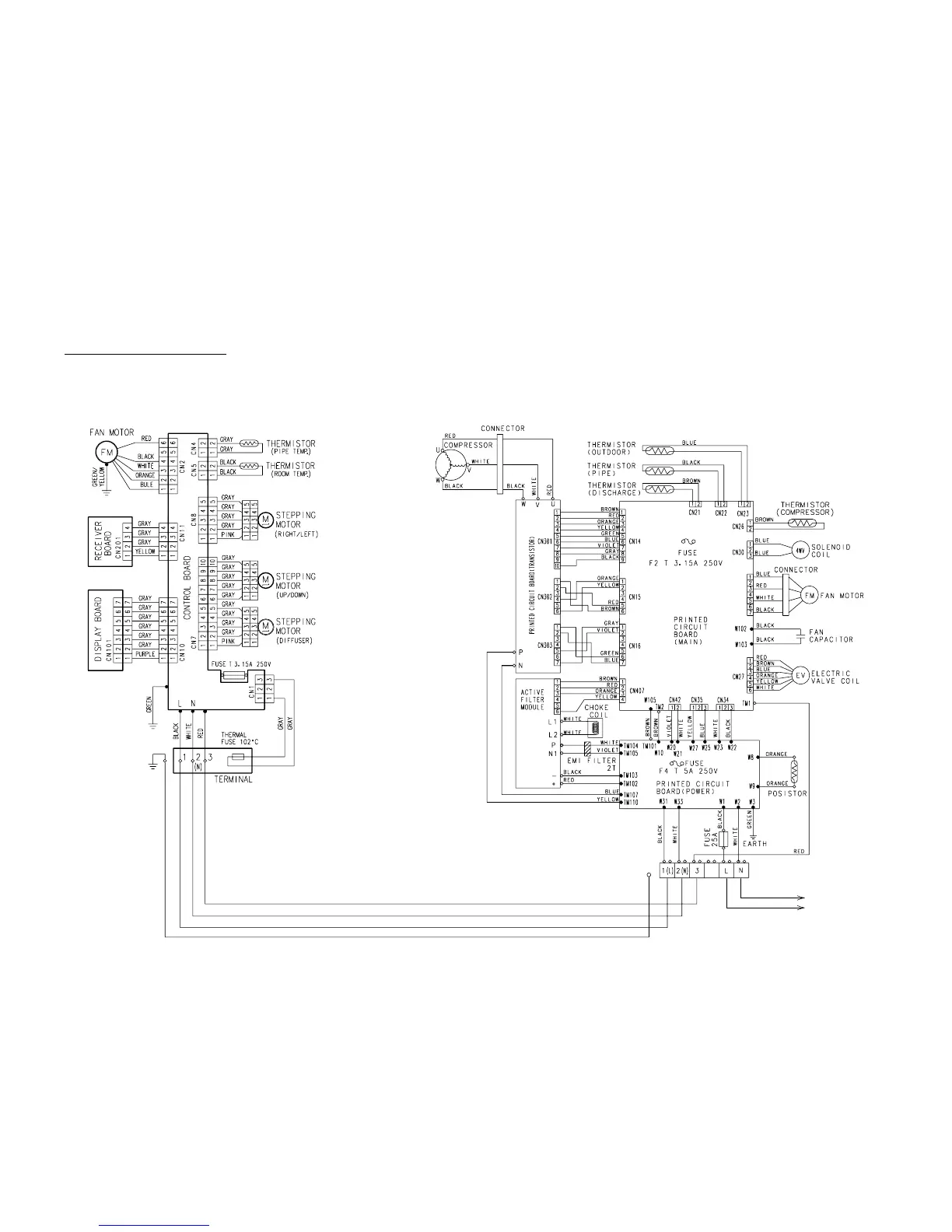

CIRCUIT DIAGRAM
TO POWER SOURCE
OUTDOOR UNIT
INDOOR UNIT
Models : AWY24LBAJ / AOY24LMAL
AWY30LBAJ / AOY30LMAL
