46
2012.12.26

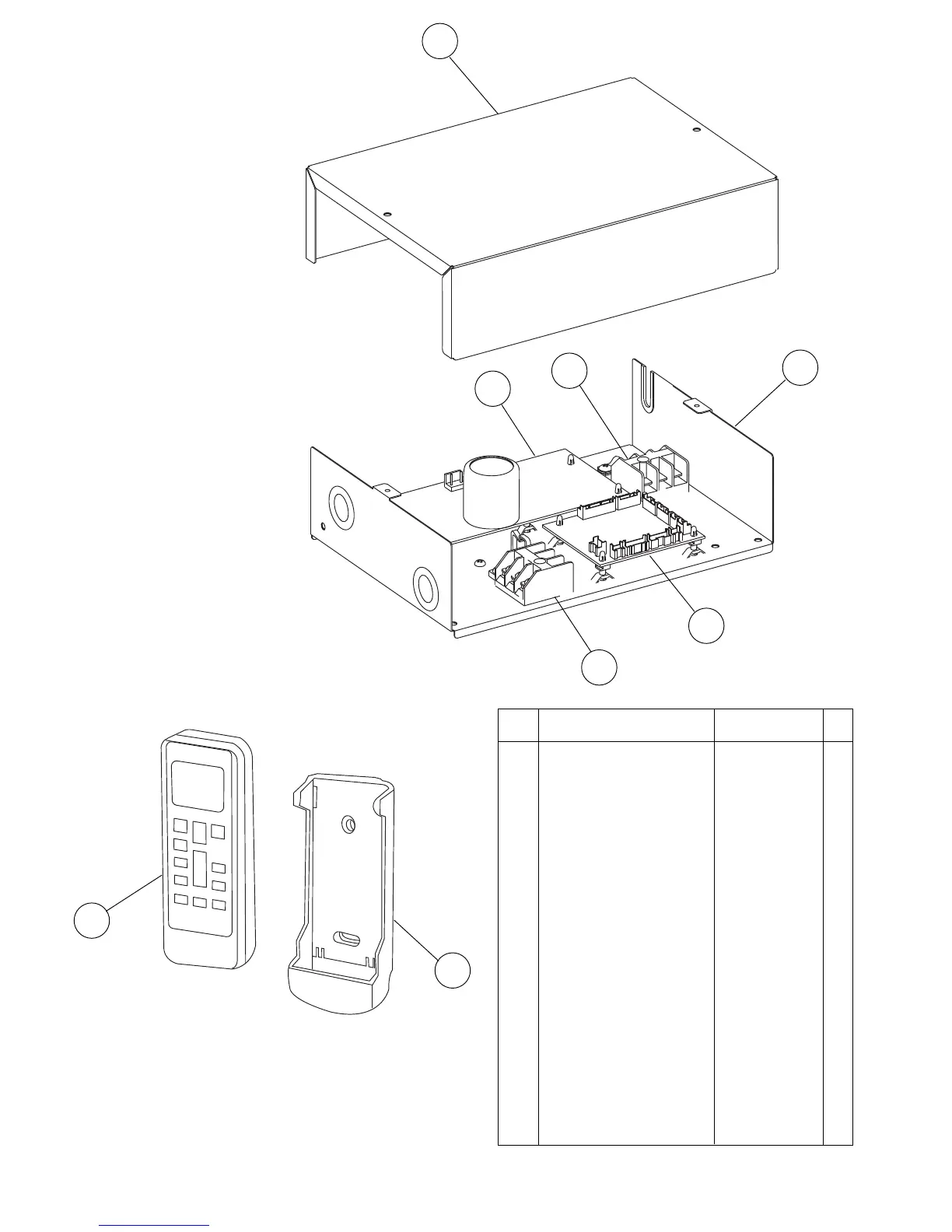

INDOOR UNIT
CASSETTE
AUYG18LVLB
AUYG22LVLA
AUYG24LVLA
41
42
43
44
47
48
45
46
41 Control Box Cover 9375512019
42 Control Box A 9375511012
43
43
Main PCB (22) 9709245514
43 Main PCB (24) 9709245453
Main PCB (18) 9709245446
44
Power Supply PCB
9707398380
45 Terminal 9306489045
46 Terminal 9703345012
-- Pipe Thermistor 9703297014
-- Room Thermistor 9900502003
47 Remote Control 9379219006
48 Remote Control Holder 9305642045
Ref. Description Part number
