26
25

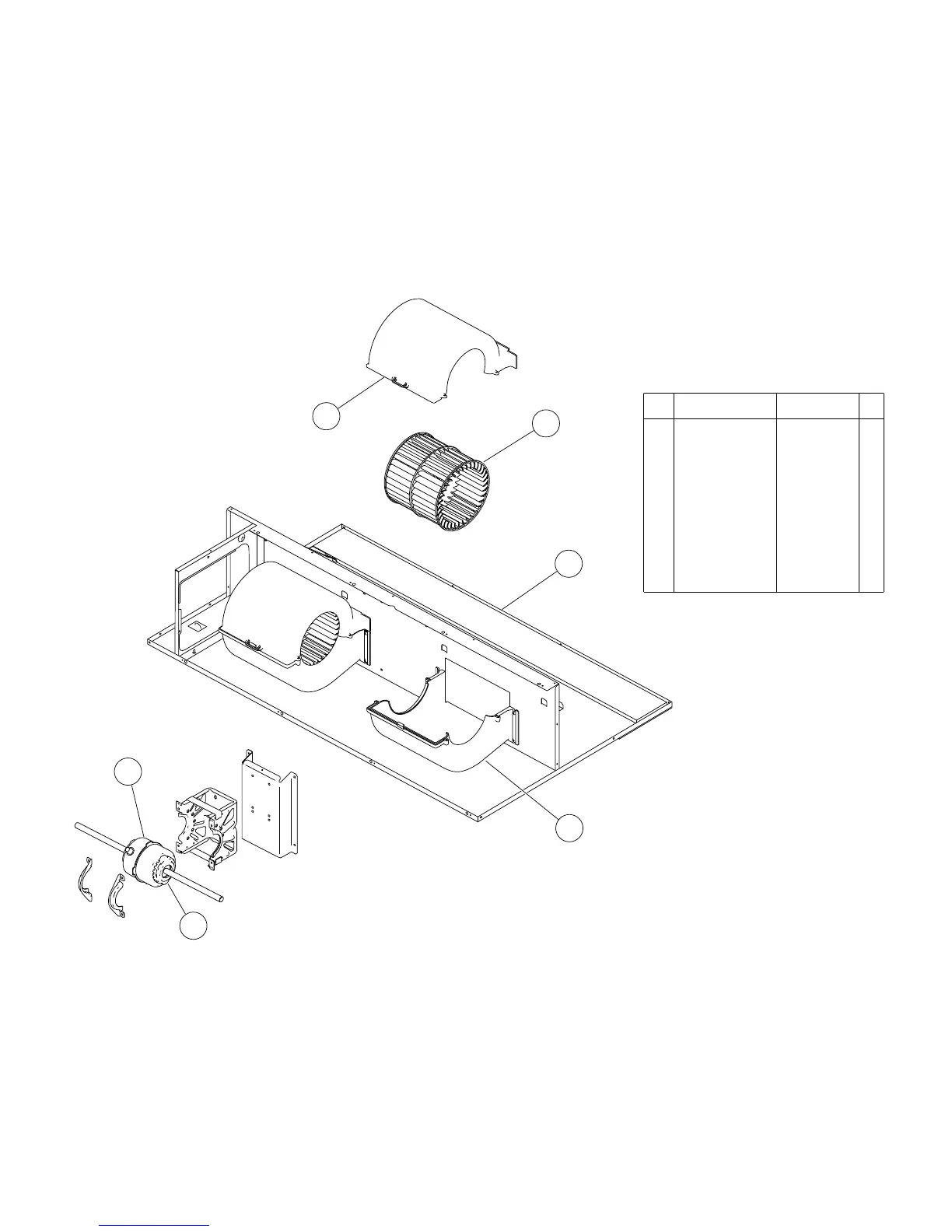

INDOOR UNIT
DUCT
ARYG22LMLA
ARYG24LMLA
22
23
24
21
2012.04.25 58
23 Casing B 9374234011
24 Sirocco Fan Assy 9356531060
26 Rubber 9385102002
21 Base Sub Assy 9374504015
22 Casing A 9374233014
25 Fan Motor 9602433025
Ref. Description Part number
