Fujitsu D1451 - Internal Connectors: Processor Power and Fan; Processor Power Supply Pinout; Fan 1 Connector Pinout

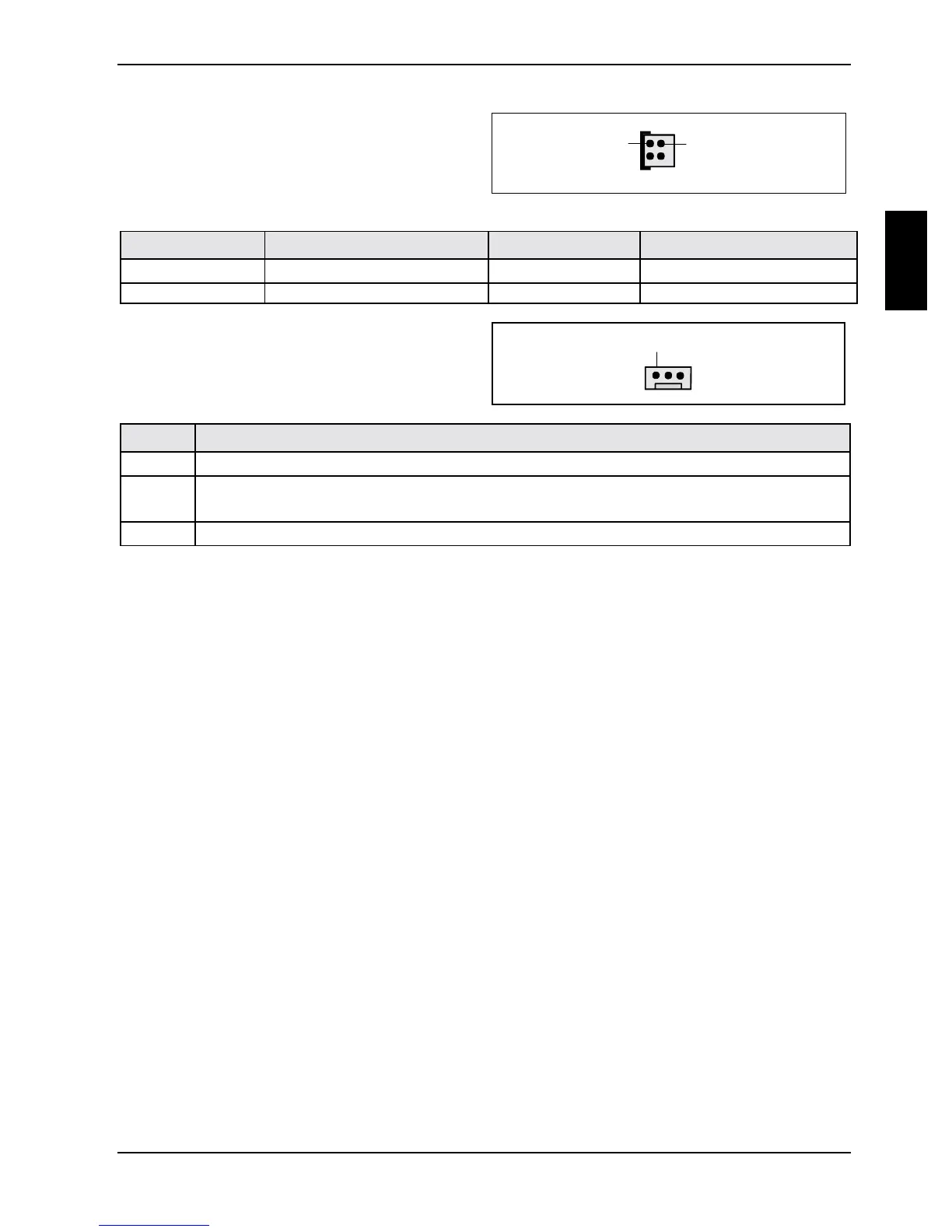

Pin assignment of internal ports
A26361-D1451-Z120-1-6319 English - 13
Prozessor-Stromversorgung /
Processor power Supply
13
Pin Signal Pin Signal
1 GND 3 +12 V
2 GND 4 +12 V
Lüfter 1 / Fan 1
(system fan - supervised)
1
Pin Signal
1GND
2 Controlled Fan voltage (0 V, +6 V ... +12 V, max. 1 A)
or fix Fan voltage (+12 V, max. 1 A)
3 Fan sense
