4.0 INSTALLATION
4.3.4 Ground Snow Depth Table
NOTICE: /RFDOUHFRUGVDQGH[SHULHQFHPXVWEHFRQVLGHUHGZKHQHVWDEOLVKLQJWKHXQLWLQVWDOODWLRQKHLJKW7KHUHLVDSUREDELOLW\WKDW
WKHJURXQGVQRZGHSWKVKRZQLQWKLVWDEOHZLOOEHH[FHHGHGDQQXDOO\'ULIWVKDYHQRWEHHQFRQVLGHUHG7KLVGDWDUHSUHVHQWV
1DWLRQDO:HDWKHU6HUYLFHORFDWLRQVDWZKLFKPHDVXUHPHQWVDUHPDGHDQGDVVXPHVDQDWLRQZLGHVQRZGHQVLW\RIOEIW
3
ALABAMA INDIANA MINNESOTA NEW MEXICO PENNSYLVANIA VIRGINIA
Huntsville
7 Evansville 12 Duluth 64 Albuquerque 4 Allentown 23 Dulles Airport 19
ARIZONA Fort Wayne 17 International Falls 43 Clayton 10 Erie 19 Lynchburg 16
Flagstaff 48 Indianapolis 21
Minneapolis/St. Paul 50 Roswell 8 Harrisburg 23 National Airport 18
Prescott 3 South Bend 44 Rochester 50 NEW YORK Philadelphia 16 Norfolk 9
Winslow 7 IOWA St. Cloud 53 Albany 25 Pittsburgh 22 Richmond 12
ARKANSAS Burlington 17 MISSISSIPPI Binghamton 35 Scranton 16 Roanoke 17
Fort Smith 5 Des Moines 22 Jackson 3 Buffalo 42 Williamsport 20 WASHINGTON
Little Rock 6 Dubuque 38 MISSOURI
NYC – Kennedy Airport 18 RHODE ISLAND Olympia 24
CALIFORNIA Sioux City 33 Columbia 21
NYC – LaGuardia Airport 18 Providence 21 Quillayute 24
Blue Canyon 25 Waterloo 36 Kansas City 18 Rochester 38 SOUTH CAROLINA Seattle-Tacoma 14
Mt. Shasta 69 KANSAS St. Louis 16 Syracuse 35 Columbia 12 Spokane 41
COLORADO Concordia 23 Spring eld 14 NORTH CAROLINA Greenville 4 Stampede Pass 51
Alamosa 15
Dodge City 12 MONTANA Asheville 12 SOUTH DAKOTA Yakima 25
Colorado Springs 14 Goodland 14 Billings 17 Cape Hattaras 5 Aberdeen 42 WEST VIRGINIA
Denver 15 Topeka 19 Glasgow 17 Charlotte 10 Huron 43 Beckley 51
Grand Junction 16 Wichita 11 Great Falls 16 Greensboro 11 Rapid City 14 Charleston 20
Pueblo
7 KENTUCKY Havre 24 Raleigh-Durham 10 Sioux Falls 38 Elkins 21
CONNECTICUT
Covington 12 Helena 18 Wilmington 9 TENNESSEE Huntington 15
Bridgeport 23 Lexington 12 Kalispell 53 Winston-Salem 17 Bristol 8 WISCONSIN
Hartford 29 Louisville 11 Missoula 23 NORTH DAKOTA Chattanooga 6 Green Bay 36
New Haven 15 MAINE NEBRASKA Bismarck 25 Knoxville 8 La Crosse 32
DELAWARE Caribou 100 Grand Island 30 Fargo 34 Memphis 5 Madison 32
Wilmington 13 Portland 62 Lincoln 20 Williston 25 Nashville 8 Milwaukee 32
GEORGIA MARYLAND Norfolk 29 OHIO TEXAS WYOMING
Athens 5 Baltimore 17 North Platte 15 Akron-Canton 15 Abilene 6 Casper 10
Macon
8 MASSACHUSETTS Omaha 20 Cleveland 16 Amarillo 10 Cheyenne 15
IDAHO Boston 30 Scottsbluff 11 Columbus 10 Dallas 3 Lander 20
Boise 6 Nantucket 18 Valentine 22 Dayton 11 El Paso 5 Sheridan 25
Lewiston 9 Worcester 35 NEVADA
Mans eld 17 Fort Worth 6
Pocatello 7 MICHIGAN Elko 20 Toledo Express 8 Lubbock 10
ILLINOIS Alpena 53 Ely 9 Youngstown 12 Midland 2
Chicago O’Hare 18 Detroit City 9 Reno 11 OKLAHOMA San Antonio 3
Chicago 22 Detroit Airport 17 Winnemucca 6 Oklahoma City 5 Wichita Falls 5
Moline 17
Detroit – Willow Run 21 NEW HAMPSHIRE Tulsa 8 UTAH
Peoria 16 Flint 28 Concord 66 OREGON Milford 16
Rockford 25 Grand Rapids 37 NEW JERSEY Burns City 24 Salt Lake City 8
Spring eld 23 Houghton Lake 56 Atlantic City 11 Eugene 17 Wendover 3
Lansing 42 Newark 15 Medford 8 VERMONT
Marquette 53 Pendleton 11 Burlington 37
Muskegon 43 Portland 10
Sault Ste. Marie 80 Salem 7
GROUND SNOW DEPTH – INCHES

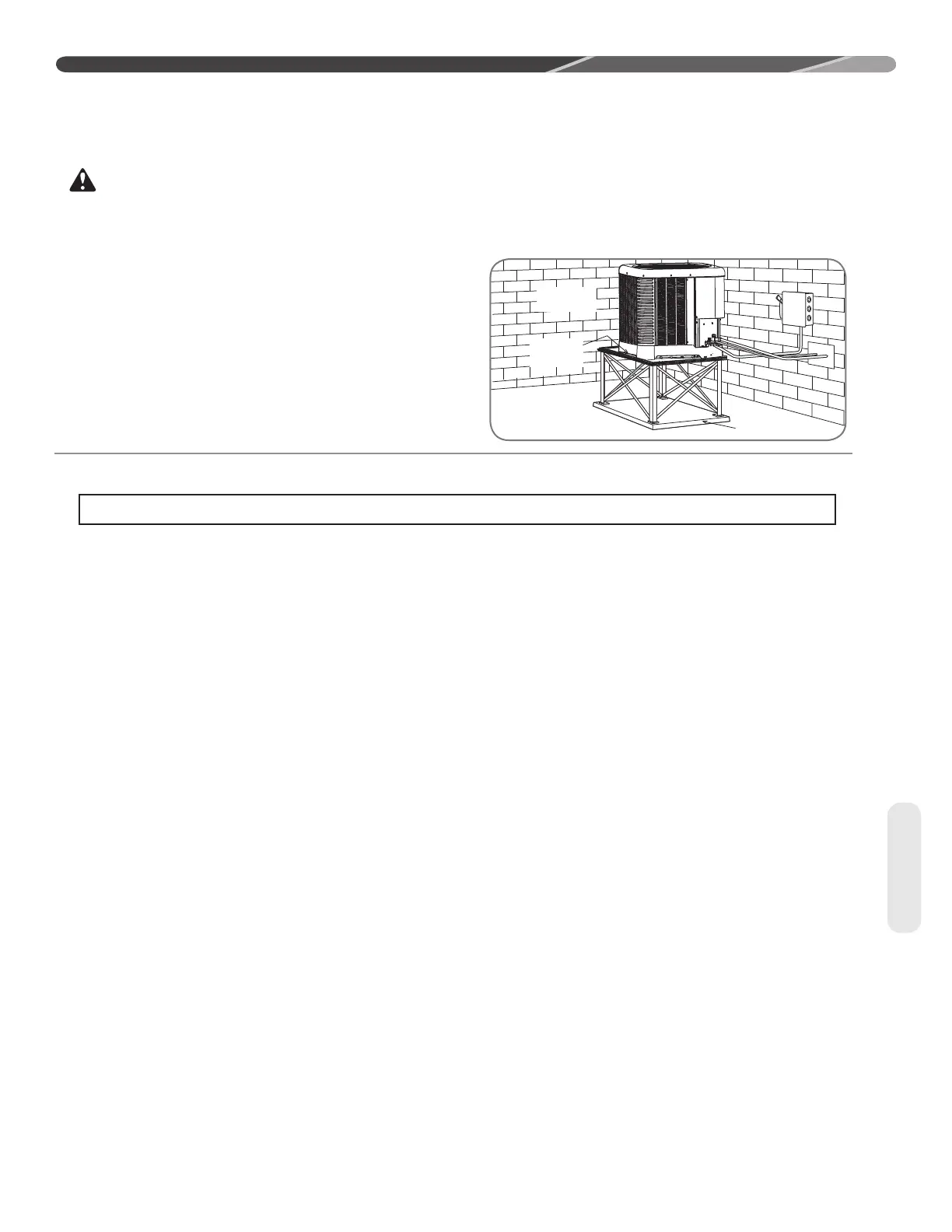

4.3.3 Elevating Unit
WARNING: Secure an elevated unit and its
elevating stand in order to prevent tipping. Failure to do so may
result in severe personal injury or death.
If elevating the heat pump, either on a flat roof or on a slab, observe
WKHIROORZLQJJXLGHOLQHV
• The bottom of the basepan has receptacles for 4" [10.2 cm]
VFKHGXOH39&SLSHWKDWFDQEHFXWWROHQJWKDQGXVHGDVULVHUV
for slab applications.
• If elevating a unit on a flat roof, use 4" x 4" [10.2 cm x 10.2 cm] or
HTXLYDOHQWVWULQJHUVSRVLWLRQHGWRGLVWULEXWHXQLWZHLJKWHYHQO\DQG
prevent noise and vibration.
:KHUHVQRZIDOOLVDQWLFLSDWHGUDLVHWKHXQLWDERYHWKHEDVHSDGWR
prevent ice buildup and coil damage. Mount the unit high enough
WREHDERYHWKHDYHUDJHDFFXPXODWHGDUHDVQRZIDOO6HH´*URXQG
6QRZ'HSWKµFKDUWEHORZIRUUHSUHVHQWDWLYHVQRZGHSWKV
NOTICE: 'RQRWEORFNGUDLQRSHQLQJVRQERWWRP
of unit.
,IXQLWPXVWEHHOHYDWHGEHFDXVHRIDQWLFLSDWHGVQRZIDOO
secure unit and elevating stand such that unit and/or stand
ZLOOQRWWLSRYHURUIDOORII.HHSLQPLQGWKDWVRPHRQHPD\
try to climb on unit.
67$
(/(9$7($%29(
$17,&,3$7(+,*+
612:)$//
'2127%/2&.
23(1,1*6
,1%$6(3$1
%$6(3$'
&21&5(7(2527+(5
68,7$%/(0$7(5,$/
Mounting
