31
32
33
23
24
29
26
27
25
30
22
21
28
Connector :
White
Connector :
Yellow
Connector :
Blue
Connector :
Red

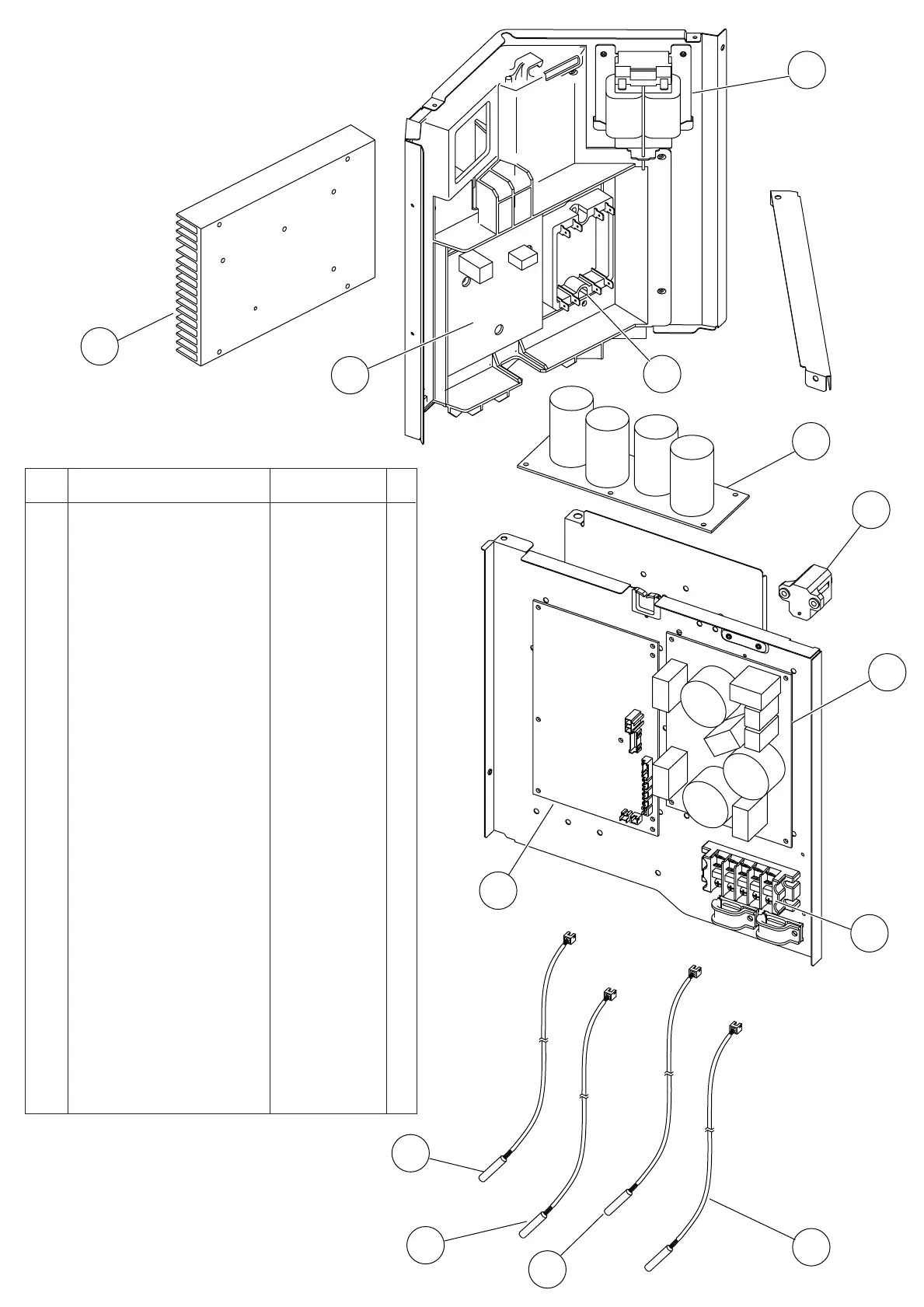

OUTDOOR UNIT
2013.02.07 18
22 ACTPM 9707592016
29 Thermistor (36 only) 9704265012
25 Main PCB (30)
25 Main PCB (36)
9707667868
26 Filter PCB (30) 9707128215
26 Filter PCB (36) 9707128208
24 Capacitor PCB (30) 9707257052
24 Capacitor PCB (36) 9707257045
21 Transistor PCB (IPM) (30) 9707669077
21 Transistor PCB (IPM) (36) 9707669060
23 Choke Coil (30) 9900390020
23 Choke Coil (36) 9900223014
27 Terminal 9900203023
28 Heat Sink 9378530010
30 Discharge Thermitor 9900461003
31 Thermistor (Outdoor) 9900463007
32 Compressor Thermistor 9900466015
33
Heat Exchanger Thermistor
9900462000
9707667875
Ref. Part numberDescription
To Next Page
