Fujitsu General ARHG30LMLE

7
2
8
6
5
4
3

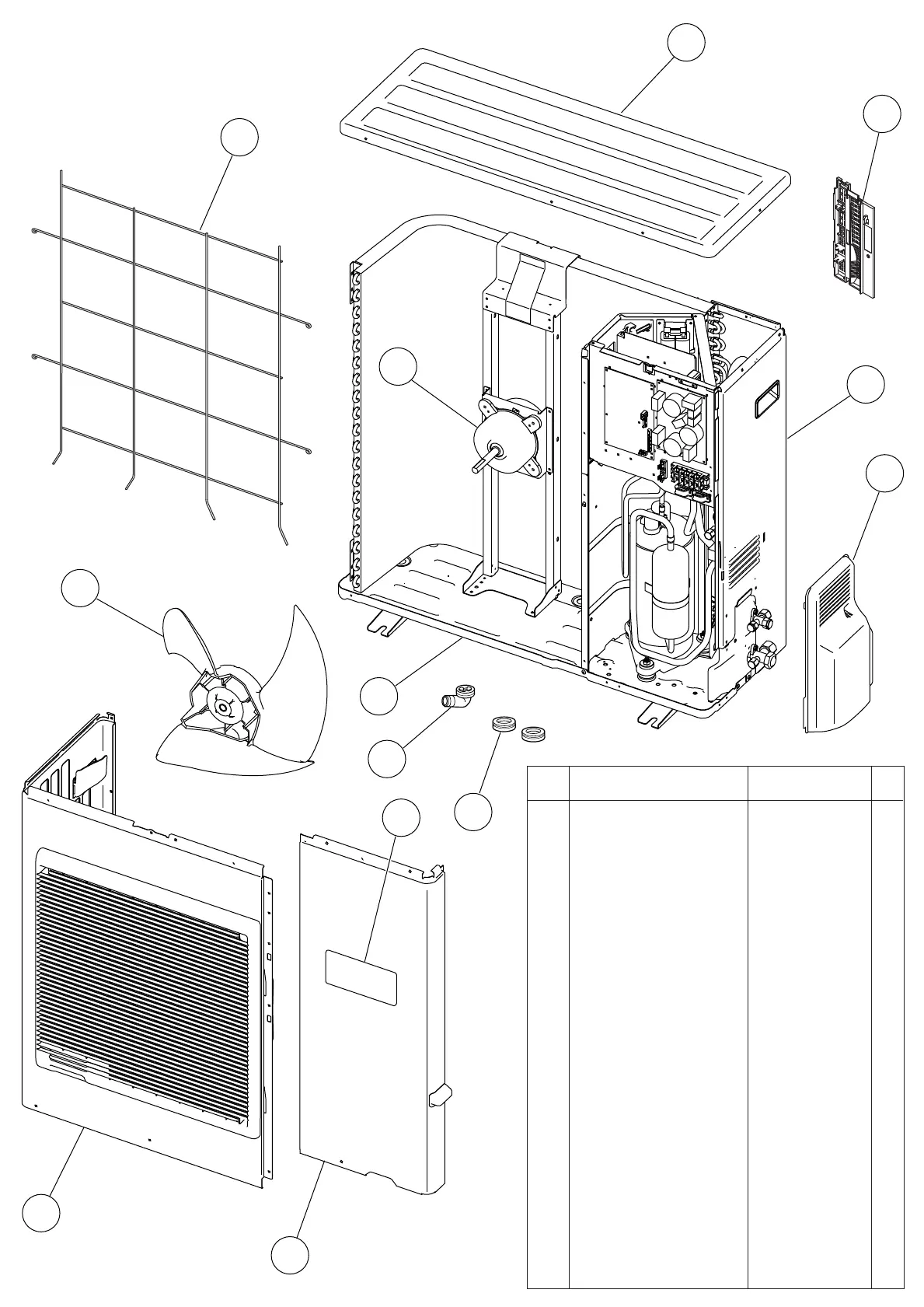

OUTDOOR UNIT
PARTS
2013.02.27 17
3 Top Panel Sub Assy 9374417032
4 Front Panel Sub Assy 9374414079
5 Service Panel Sub Assy 9374415052
7 Right Panel Sub Assy 9374416127
6 Emblem Rear 9372171059
8 Valve Cover 9374174010
1 Protective Net 9375381011
2 Thermo Holder 9375211011
Ref. Part numberDescription
12
13
10
9
1
11
10 Propeller Fan Assy 9366378020
9 Fan Motor 9602843015
11 Base Assy 9374166138
12 Drain Assy 9303029015
13 Drain Cap 313166024302
