18 - English Installing the UMTS/LTE module in LIFEBOOK S751/S752/S781/S782/E751/E752/E781/E782
Installing the UMTS/LTE module
To install the UMTS/LTE module, proceed as follows:
21
Insert the UMTS/LTE module, contacts first, into the bay. Take care not to trap the antenna
cables.
Carefully push the UMTS/LTE module downwards.
Pull any protective tubes carefully away from the antenna contacts.
Secure the UMTS/LTE module with the enclosed screws.
!
Before connecting the antenna cables, you must first remove any protective tubes from the
cables.
!
To prevent damage to the antenna contacts, connect the antenna cables carefully to the
corresponding ports.

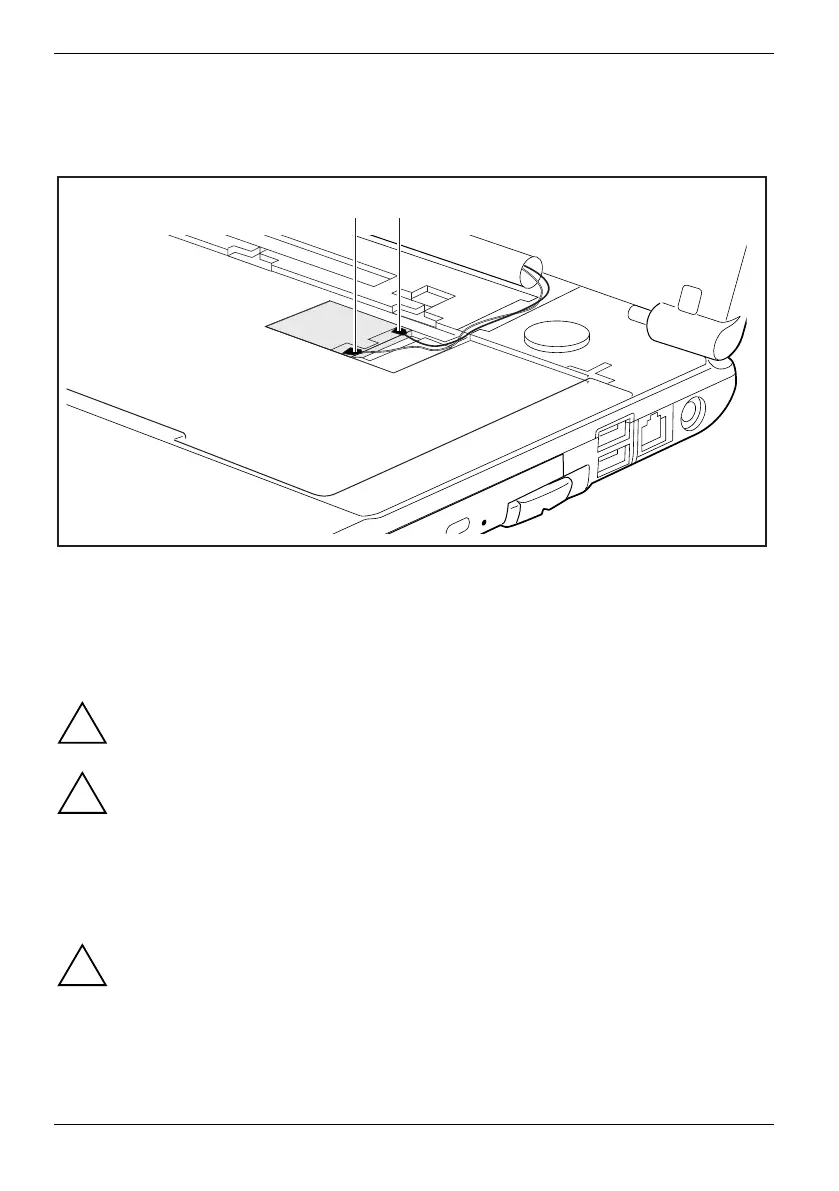

Ensure correct connection of the antenna cables:
Connect the orange antenna (1) to the AUX port
Connect the yellow antenna (2) to the MAIN port
Fasten the two antenna cables.
!
In the case of devices with a TouchStick integrated into the keyboard, make sure the
cables of the TouchStick do not get pulled off.
To fit the cover again, stow the UMTS/LTE cables carefully in the recess of the
UMTS/LTE module bay, as shown.
Carefully put the keyboard in place.
