Fujitsu Mini-Split User Manual

39

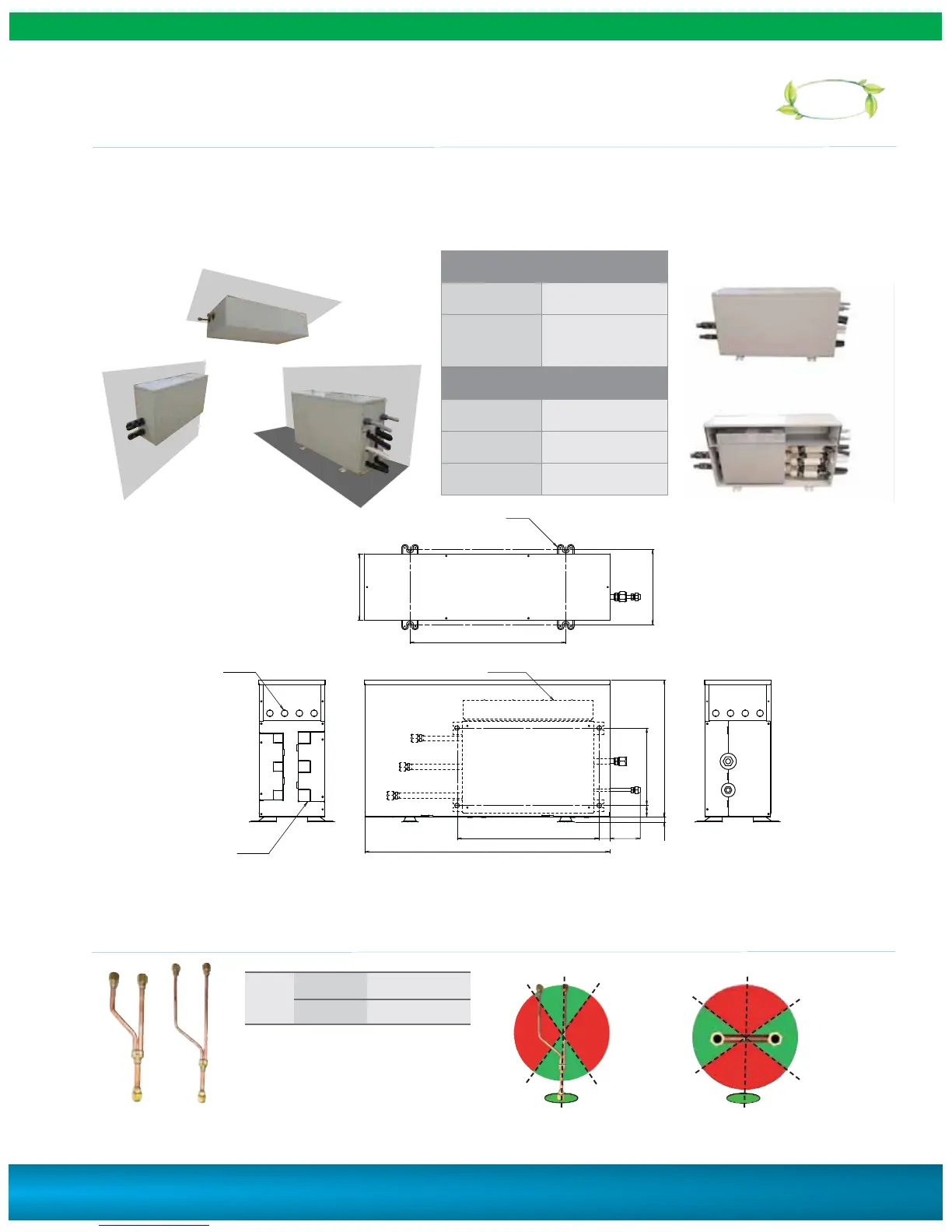

Separation Tube Assembly Kit
UTP-SX248A
Size
Liquid Inch 3/8 x 3/8 x 3/8
Suction Inch 5/8 x 5/8 x 5/8
360° rotation on its vertical axis
+/- 10° of 90° vertical
+/- 10° of 0°
horizontal
360° rotation on its vertical axis
The Branch Box Outdoor Enclosure is used to mount the indoor style Branch Box outdoors. The Branch Box Outdoor
Enclosure is a painted metal cover to match the condensing unit. When Branch Box Outdoor Enclosure is not
required, see Installation Manual for indoor mounting instructions.
Branch Box Outdoor Enclosure
UTP-PX-A
flex
48,000 BTUs
Allowed Mounting Positions
Dimensions in. (mm)
Net (HxWxD)
8-11/16 x 32 x 17-7/8
(220 x 813 x 454)
Gross (HxWxD)
3-15/16 x 33-11/16 x
20-5/16
(100 x 880 x 515)
Weight lbs. (kg)
Net Branch Box
cover only
22 (10)
Net Branch Box
+ Cover
44.1(20)
Gross 30.9 (14)
9-3/4 (248)
20-1/4 (515)
32 (813)
18-7/16 (469)
1-7/16 (36)
1-9/16 (39)
10-1/16 (256)
17-7/8 (454)
5/8 (16)
8-11/16 (220)
Control Box
Knock out hole
for wiring
3-15/16 (100)
Knock out hole
for piping
Foot (Accessory)
Dimensions In (mm)
20-1/4 (515)
8-11/16 (220)
9-3/4 (248)
Foot (Accessory)
Control Box
Knock Out Hole
For Wiring
Knock Out
Hole For
Piping
8-7/16 (469)
32 (813)
3-15/16 (100)
1-7/16 (36)
17-7/8 (454)
10-1/16 (256)
1-9/16 (39)
