33

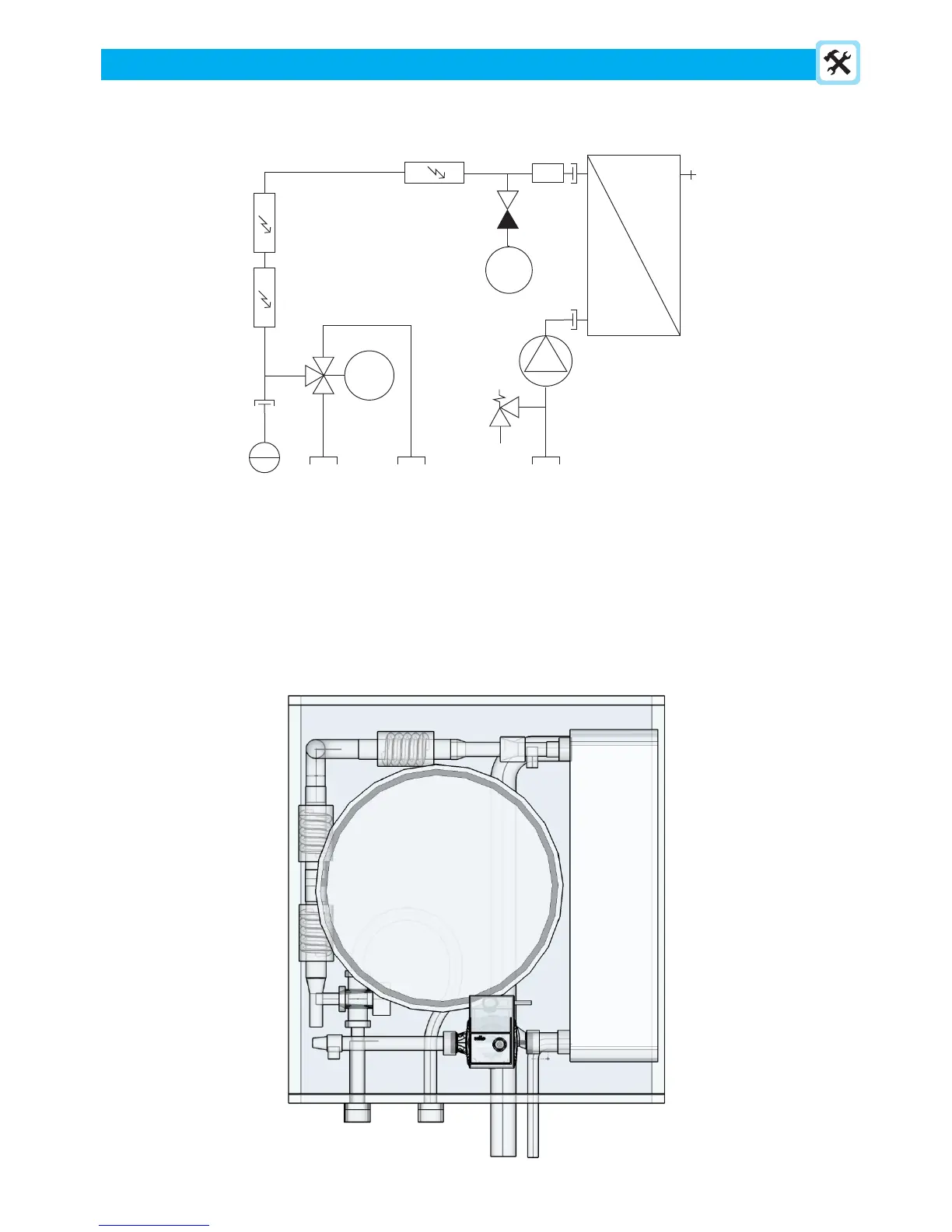

Hydraulic circuit design documents
1. Refrigerant/water exchanger
2. Circulator
3. Safety valve 2,5 Bar
4. Manual bleeding valve
5. Pressure sensor 0-4 Bar
6. Electric heater 2kW
7. 3-way valve
8. Expansion tank 8l
9. Heating water output
10. DHW heating water output
11. Input water
12. Flowmeter
Indoor unit equipment
P
M
1
12
2
3
4
5
6
6
7
8
9
6
11
10
9
8
7
6
6
6 12
5
4
3
2
1
11
10
