40
Modular RAID Controllers
Modular RAID 6Gb/s (SAS2.0)
Connectors

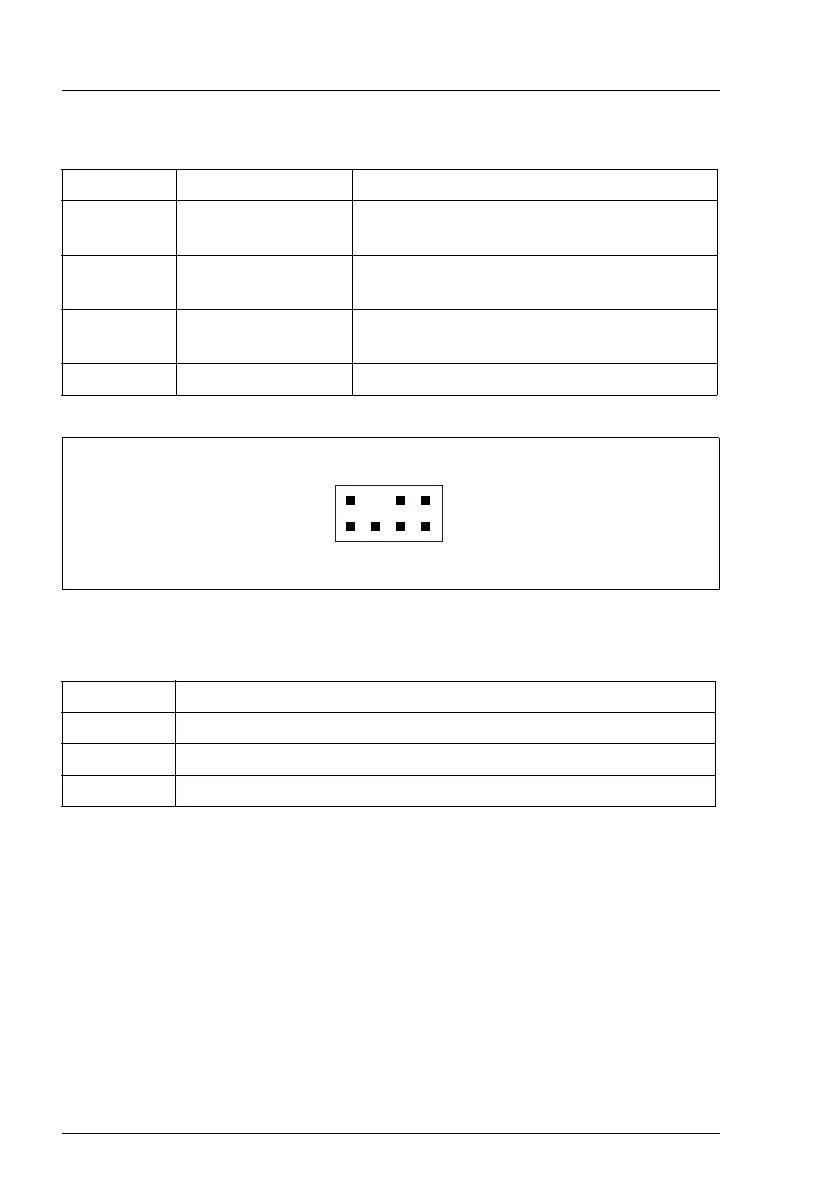

Figure 12: HDD LED connector
Indicators
Connector Type Description
SAS MLC1 x4 SAS, ports 0 - 3 SFF 8087 Mini SAS connector for SAS IO
cable to backplane and HDDs
SAS MLC2 x4 SAS, ports 4 - 7 SFF 8087 Mini SAS connector for SAS IO
cable to backplane and HDDs
HDD LED HDD activity
indication LED
8-pin connector
Pin 6 to connect activity LED
iBBU 1-20 Connector to attach remote iBBU
LED Description
L1 (HB) Heart Beat
L2 (WP) Write in cache pending
L3 (WA) Warning
