Fujitsu PRAID CP400i User Manual

84 Modular RAID Controllers
Modular RAID 12Gb/s (SAS3.0)

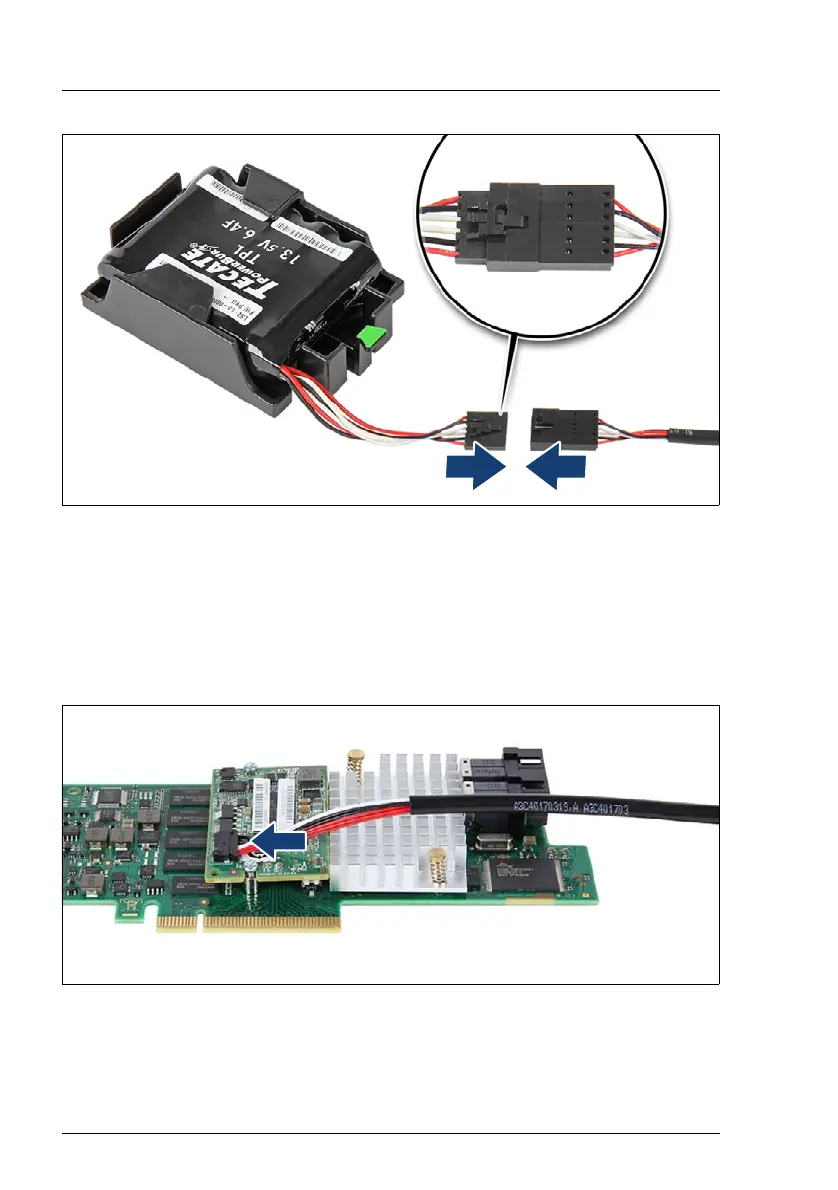

Figure 28: Connecting the FBU adapter cable to the FBU
Ê Connect the cable end of the FBU cable to the FBU adapter cable as shown.
Ê Secure the FBU to the server chassis as described in the server
documentation.
Connecting the FBU adapter cable
Figure 29: Connecting the FBU adapter cable
Ê Connect the loose end of the FBU adapter cable to the TFM on the RAID
controller (see section "Connectors and indicators" on page 77).

Fujitsu PRAID CP400i Specifications

General

Brand	Fujitsu
Model	PRAID CP400i
Category	Controller
Language	English
