RX2530 M4
Operating Manual 55
Example HVDC PSU 380 V

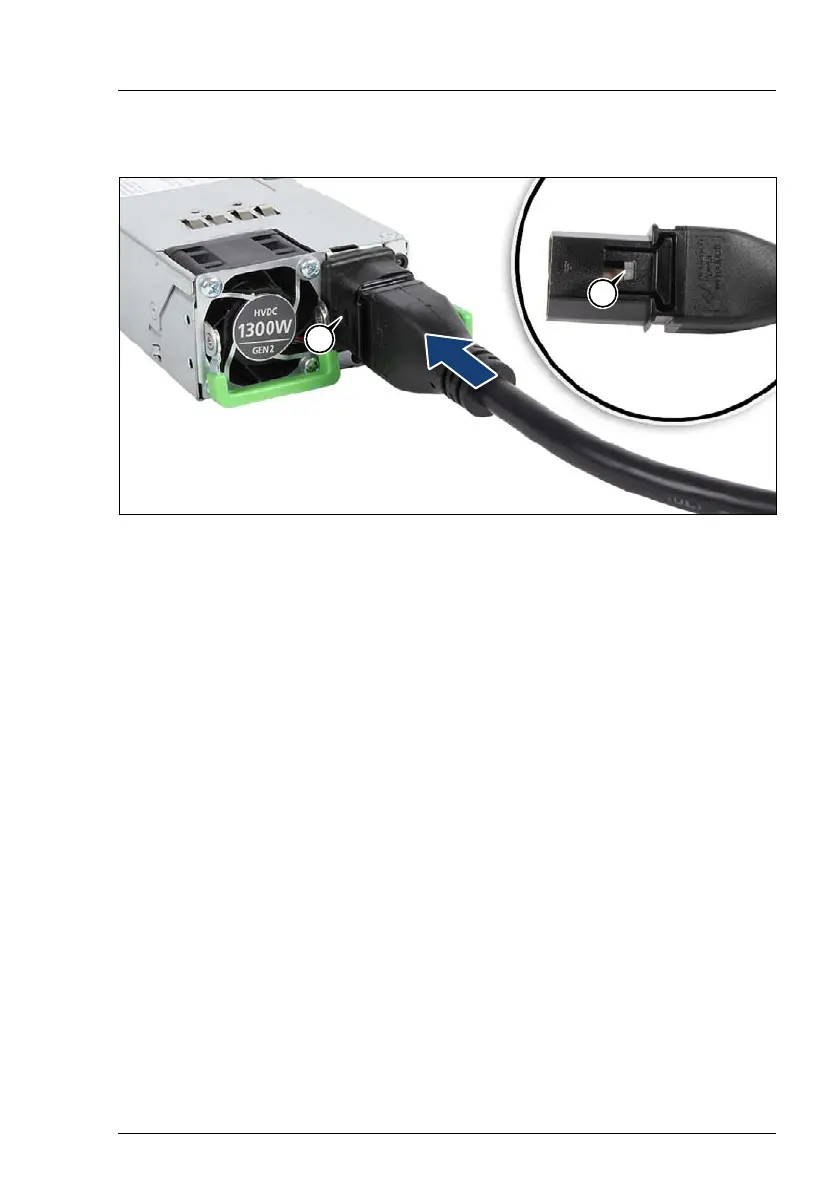

Figure 7: Connecting the server to the DC voltage - example HVDC PSU 380 V
Ê Push the power cord plug into the PSU connector until it clicks in. The nose
of the power cord plug (A) engages in the recess of the PSU connector (B).
Ê Connect the wire labeled "Ground" to an appropriate earth ground.
Ê Connect the other two wires of the power cable to the current bar on the rack
(see Technical Manual of the rack).
