5.5.1 Connecting the server to the direct current
(optional DC PSU)
Example DC PSU -48 V

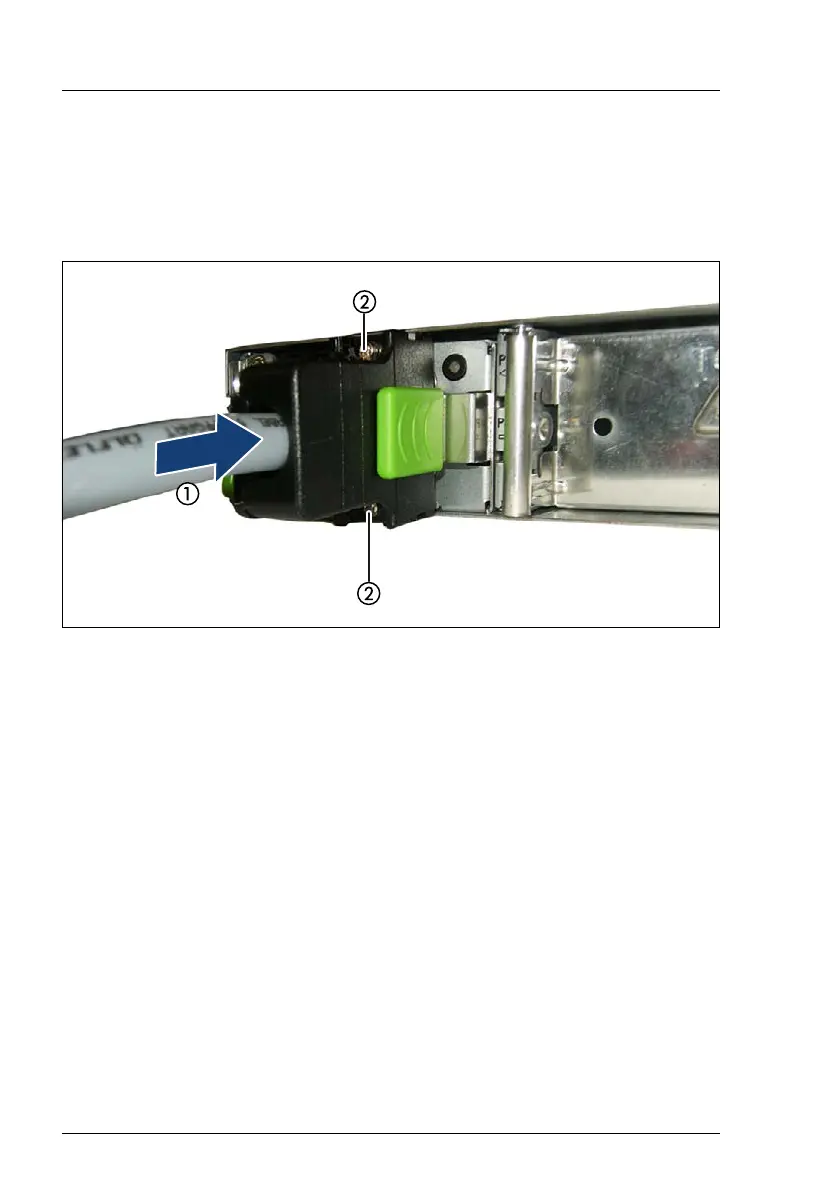

Figure 6: Connecting the server to the DC voltage - example DC PSU -48 V
Ê Connect the power cord with the connector to the PSU of the server (1).
Ê Attach the connector with the 2 screws (2).
Ê Connect the wire labeled "Ground" to an appropriate earth ground.
Ê Connect the other two wires of the power cable to the current bar on the rack
(see Technical Manual of the rack).
