SWITCH POSITION

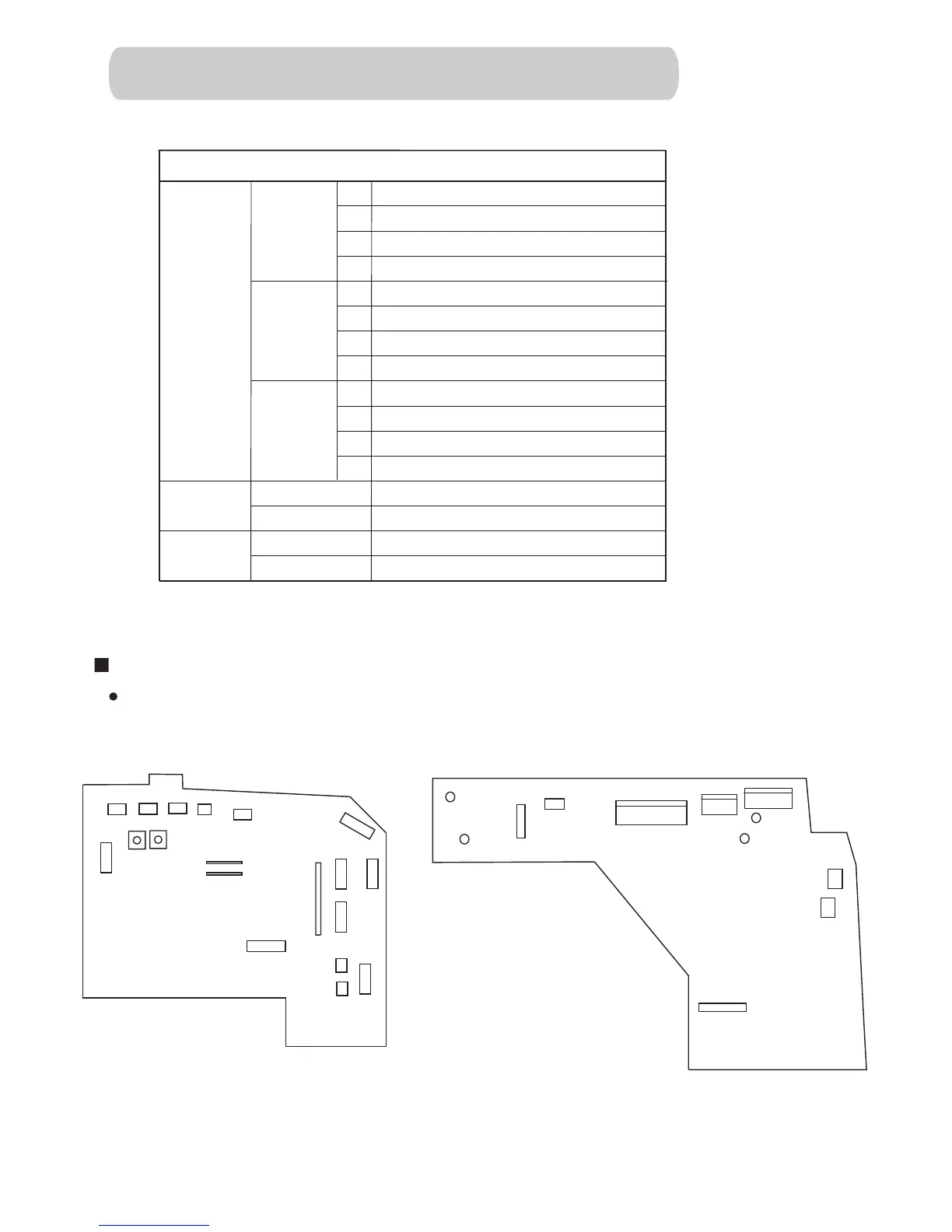

Compact wall mounted type indoor unit control circuit board
CN7
CN4
CN101
CN6
CN9
CN1
CN108
CN12
CN2
CN107
CN8
CN10
CN3
CN11
SW4
W101
SW5
SW1 SW2
SW3
JM1
JM2
CN104
CN105
CN102
CN103
CN106
W102
W103
W104
Controller PCB
Power supply PCB
2-1-2 INDOOR UNIT CONTROL CIRCUIT BOARD
(COMPACT WALL MOUNTED TYPE)
Indoor unit
SW 1
SW 2
DIP SW
SW 3
SW 4
Forbidden(Indoor unit fan speed switch 1)
Forbidden(Indoor unit fan speed switch 2)
Forbidden(Indoor unit model code)
1
2
3
4
1
2
3
4
1
2
3
4
Forbidden(Indoor unit model code)
Wireless remote controller custom code
Indoor unit address switch
Forbidden
Rotary SW
Forbidden
Auto restart validity / invalidity
Refrigerant circuit address switch
Refrigerant circuit address switch
SW 5
Indoor unit address switch
Refrigerant circuit address switch
Indoor unit address switch
Refrigerant circuit address switch
JM 1
JM 2
Jumper
wire
Wireless remote controller custom code
02-02
