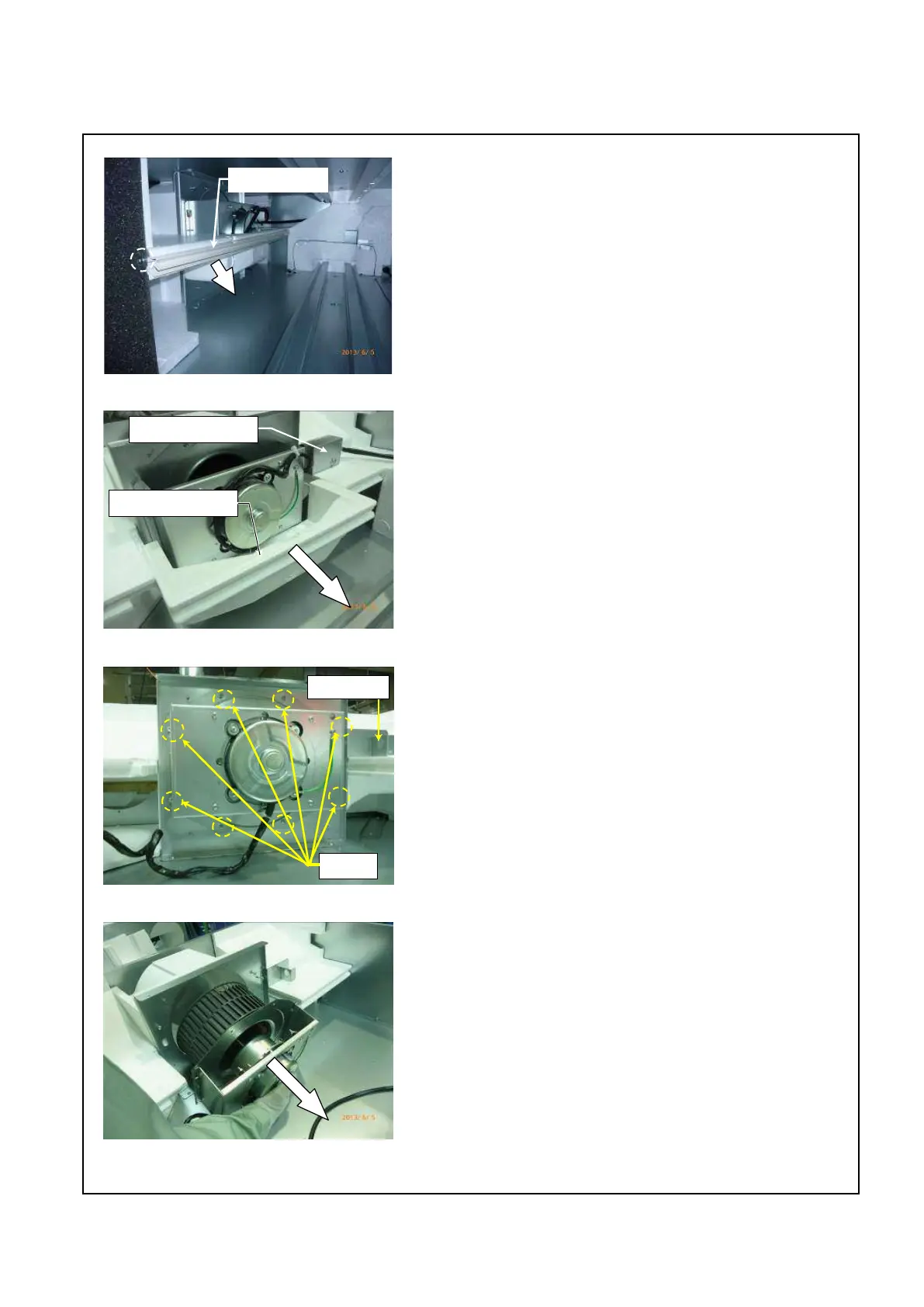

3. Method of remove the Motor Assembly (UTZ-035B/ 050B/ 035C/ 050C)
07
3: Pull the partition board A out to the direction of arrow.
1: Remove the filter and the Heat Exchange Element.
Refer to the attached "Method of remove the Heat
Exchange Element and the filter".
2: First remove the screw (1 piece) and then remove
the Grooved Rail.
5: Pull it out to the direction of arrow and outside of product.
4: Turn 8 pieces of screw on the Motor ASSY
and remove the wired connector.
Grooved Rail
Partition Board A
Connector box
Screw
Connector
To Next Page
