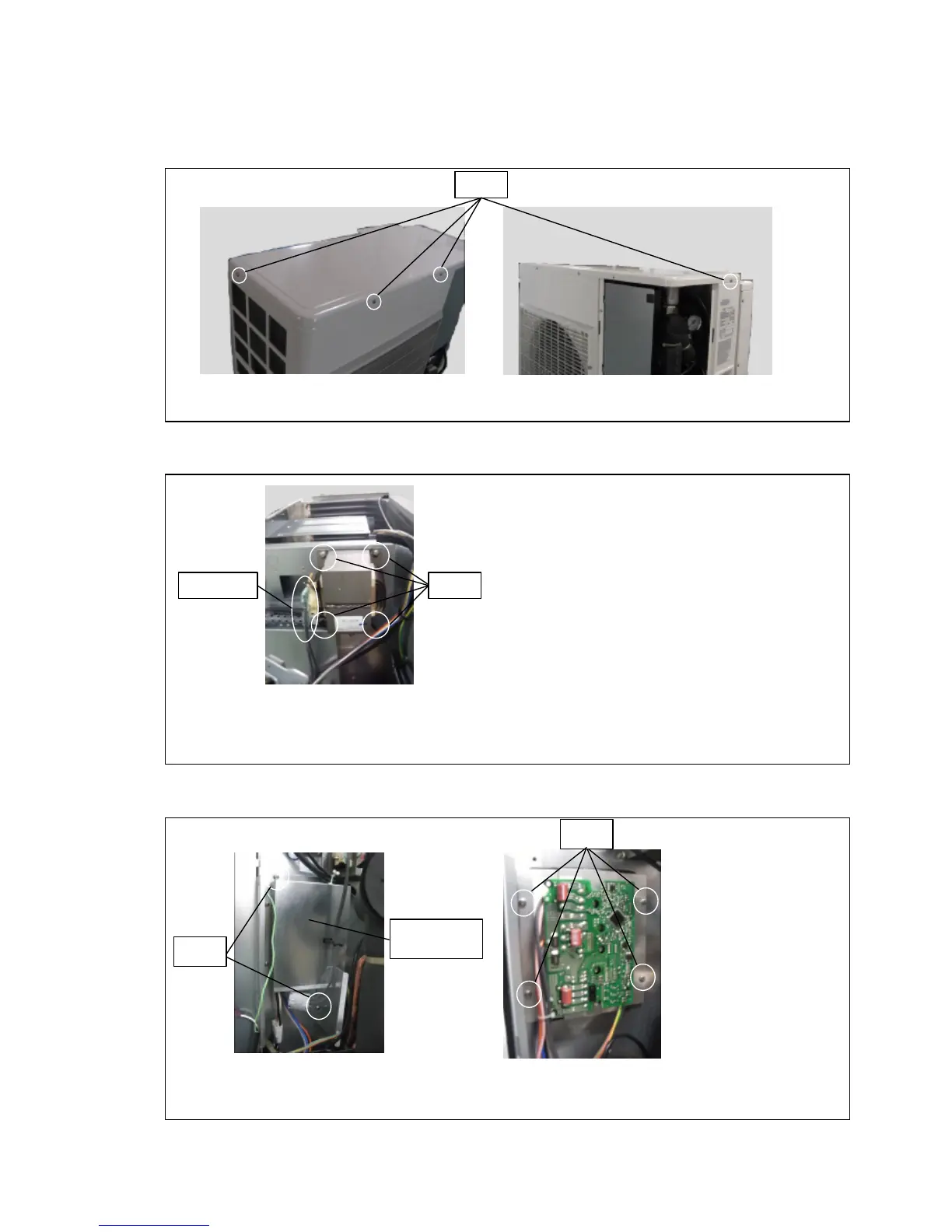

５.TOP PANEL removal
Remove the screws. (4 places)
Remove the TOP PANEL.
６.REACTOR removal
Remove the connectors.
Remove the screws. (4 places)
Remove the REACTOR.
７.MODULE PCB removal
Remove the screws. (2 places) Remove the screws. (4 places)
Remove the cover. Remove MODULE PCB with the heat sink.
Screw
ScrewConnector
Fire protection
cover
Screw
Screw
-20-
