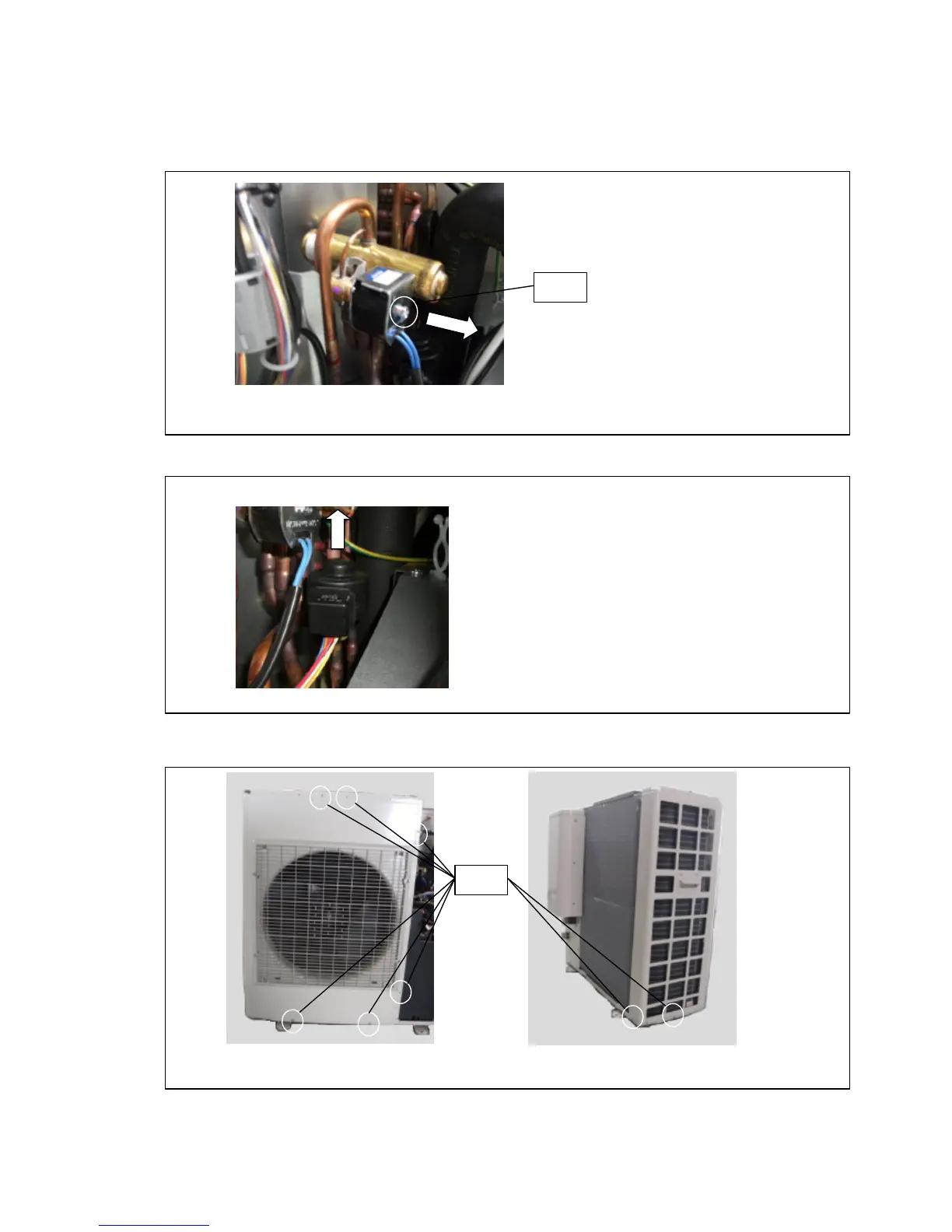

８.SOLENOID COIL (4way valve) removal
Remove the screw. (1 place)
Remove the SOLENOID COIL (4way valve).
９.EEV COIL removal
Remove the EEV COIL by hand.
１０ .FRONT PANEL(LEFT) removal
Remove the screws. (8 places)
Remove the FRONT PANEL(LEFT).
Screw
Screw
