8. QUICK ACCESS MENU AND BASIC OPERATIONS

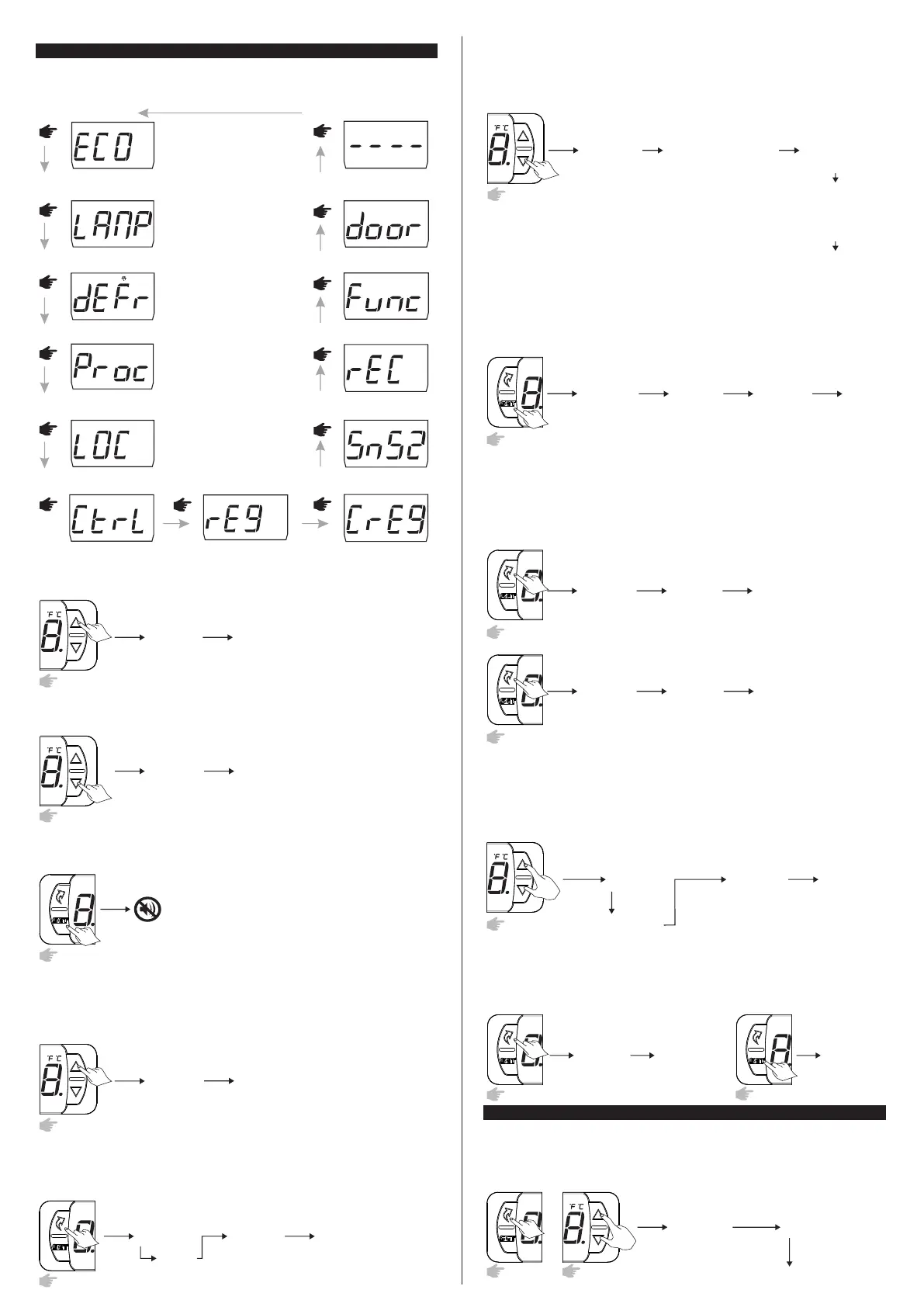

8.1. Quick Access Menu Map
You can navigate through the function menus by pressing the ;key (Flatec). See items below for further
details. The map of functions is shown below:
;
POWER-SAVING MODE
LIGHT
CONTROL FUNCTIONS
SHUTDOWN
EXIT THE FUNCTION
;
NUMBER OF TIMES THE
DOOR WAS OPENED
CURRENT PROCESS DISPLAY
ERASE MAX. AND MIN.
VALUES
MIN. AND MAX.
TEMPERATURE RECORD
DEFROST (ON/OFF)
FUNCTIONS LOCK
;
;
;
;
;
;
;
;
DISPLAY SENSOR S2
TEMPERATURE (EVAPORATOR)
;
FUNCTION SELECTION
;
PRESET SELECTION
;
8.2 Turning power-saving mode on/off
To switch power-saving mode on/off, press<with quick touch or use the quick access menu (Item 8.1).
Quick touch
8.3 Switch the light on/off
To switch the light on/off, press> with quick touch or use the quick access menu (Item 8.1).
Quick touch
8.4 Silencing the alarm
To silence the audible alarm, press the /key (quick touch).
8.5 Manual Defrost
To start/stop a manual defrost, regardless of the schedule, press and hold the < key for 6s, until the
[dEFr]message appears. Then release it. The [On,,] message will appear when it has started and
the [OFF,] message when it has been stopped. It can also be accessed through the quick access
menu (Item 8.1).
Press for 6 sec.
[ECO,] [On,,]
[Off,]
on
off
release
the key
[lamp]
[defr]
8.7 Display process stage and current setpoint
To see which process stage is underway, press and hold the > key for 4s, until the[Proc]message
appears. Then release it. The stage of the process which is in progress will be displayed, showing the
desired temperature (setpoint) in use, in relation to the current operating mode (normal/power-
saving).It can also be accessed through the quick access menu (Item 8.1).
Current stage
of the process
Shows the current desired
temperature (setpoint)
This message will
be displayed
This message will
be displayed
Quick touch
This message will
be displayed
This message will
be displayed
[On,,]
[Off,]
on
off
release
the key
[On,,]
[Off,]
on
off
release
the key
Press for 4 sec.
[Proc]
release
the key
[dEL,]
[Fan,]
[rEFr]
[Pre,]
[dEFr]
[dRAi]
[----]
Initial delay
Fan delay
Refrigeration
Pre-defrost
[,,2.0]
Ex:
Defrost
Draining
Control
functions
switched off
8.6 Display temperature in sensor S2 (evaporator)
The temperature in sensor S2 (evaporator) can be viewed by pressing the ;key (quick touch) until the
message [Sns2] is displayed. If the sensor is disabled the indication[----]will be displayed.
Quick touch
[SnS2]
Until this message
is displayed
8.8 Change Preset
To select the desired preset, press and hold the / key for 2s, until the [rEc,]. message appears,
and then release it. Use the < or > keys to select the desired preset (1,2 or 3) and press/to
confirm.
Press for 2 sec.
[rec,]
This message will
be displayed
press /
to confirm
[,,,1]
Preset
Use
< or >
to select
the preset
[,,,2]
[,,,3]
8.9 Maximum and Minimum Temperature Recording
The Maximum and Minimum Temperature Record can be viewed by pressing the ;key until the
message [rEg,] is displayed (see item 8.1 on the map):
To delete the current minimum and maximum values, press the ;key (quick touch) until the message
[Creg] is displayed. Press / to confirm. Another way to erase the records is by pressing the / key
for 2s while the records of maximums and minimums are being displayed. The message [rSet]
confirms that data has been erased.
This message will
be displayed
[rEg,]
The maximum and
minimum temperatures
will be displayed
Quick touch
[CreG]
This message will
be displayed
ERASING THE MINIMUM AND MAXIMUM VALUES
press /
to confirm
8.10 Selecting the unit temperature
The temperature of the controller can be viewed either in degrees Celsius (°C) or in degrees Fahrenheit
(°F). To set the units of measurement that the instrument will use to operate, enter function [,F01]
using the access code [,231], and then press /. Then select the desired units desejada({or})
using the <or> key. Press /to confirm.
Whenever the units are changed, the configuration of the functions assumes the factory default, thus
requiring reconfiguration.
[,F01]
[,231]
Access
code
Press
simultaneously
[,=C,]
Temperature
unit
[,=F,]
Celsius
Fahrenheit
Function
9. ADVANCED OPERATIONS
9.1 Changing the configured setup
The functions menu can be accessed through the quick access menu, option [Func] or by
pressing<and>simultaneously during the temperature display. To allow a change of parameters,
enter[,F01] by pressing /(quick touch) and enter code 123.
Quick touch
[func]
press /
to confirm
This message
will be displayed
[,F01]
Function
[,123]
Access
code
MODE 1: MODE 2:
OR
press /
to confirm
press /
to confirm
Press
simultaneously
Quick touch
press /
to confirm
press/
to confirm
[,,2.0]
Shows the temperature
of sensor 2 (evaporator)
Ex:
This message will
be displayed
[door]
8.11 View the number of times the door was opened
The number of times the door was opened can be viewed by pressing the ;key (quick touch) until the
message [door]is displayed, and then the number is shown.
To reset this number to zero, press the/key while the number is being shown until the indication
[rSEt]is displayed.
Quick touch
[t-2,]
Until this message
is displayed
[t-2,]
Indicates the temperature
in S2
([----]: if disabled)
[SP,,]
([sp-e]: if it is in
power-saving mode)
This message will
be displayed
This message will
be displayed
[rset]
This message will
be displayed
[rset]
Keep pressed
Number of times the
door was opened
[1520]
Ex:
RESET THE NUMBER TO ZERO
