Fuller Brush FB-QM - How to Assemble the Vacuum

5
Installation and removal of dust cup component
When dust cup is installed, please firstly check whether internal parts
of dust cup component are installed completely or not. Missed
installation should be avoided. Please firstly align to clamp at the
bottom of dust cup during installation. After the bottom of dust cup is
correctly aligned, dust cup component can be directly pulled into main
body, and reliable assembly can be ensured after locking sound is
heard.
If dust cup is should be removed, dust cup release button should be
pressed, and the dust cup should be removed according to direction in
the drawing.
Installation and removal of dust cup component
When dust cup is installed, please firstly check whether internal parts
of dust cup component are installed completely or not. Missed
installation should be avoided. Please firstly align to clamp at the
bottom of dust cup during installation. After the bottom of dust cup is
correctly aligned, dust cup component can be directly pulled into main
body, and reliable assembly can be ensured after locking sound is
heard.
If dust cup is should be removed, dust cup release button should be
pressed, and t
he dust cup should be removed according to direction in
the drawing.

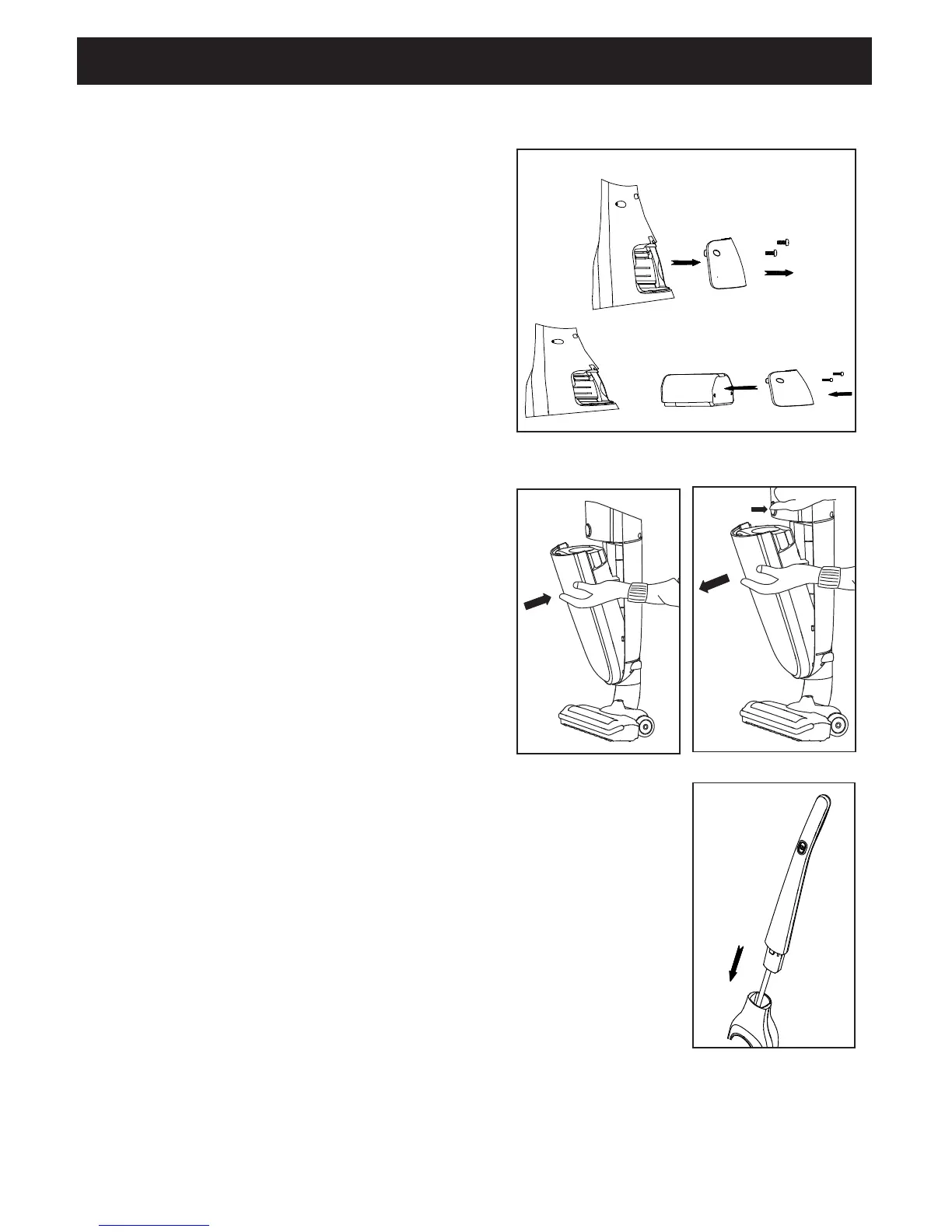

Fig. 1
Fig. 2
Fig. 4
Fig. 3
Installing the Battery
Remove the two screws from the battery cover.
Push the battery into the battery compartment to
ensure a connection. Replace the battery cover
with two screws (Fig. 1).
Removing the Battery
Remove the battery cover. Then remove the
battery (Fig. 1).
Attaching the Dust Cup Assembly
Line up the bottom of the dust cup with the base
of the vacuum. Then push the top of the dust cup
into the vacuum until it clicks into place (Fig. 2).
Removing the Dust Cup Assembly
Push the dust cup release button and remove the
dust cup assembly from the vacuum (Fig. 3).
Attaching the Handle
With the On/Off button facing the front of the
vacuum, insert the handle into the top of the
vacuum (Fig. 4) until it clicks into place.
Screw
Battery cover plate
Screw;
Battery pack;
Battery cover plate
Screw
Battery cover plate
Screw;
Battery pack;
Battery cover plate
How to Assemble the Vacuum
