FUNAI DPVR-2605 - Page 52

1-11-2 H9300DWFP

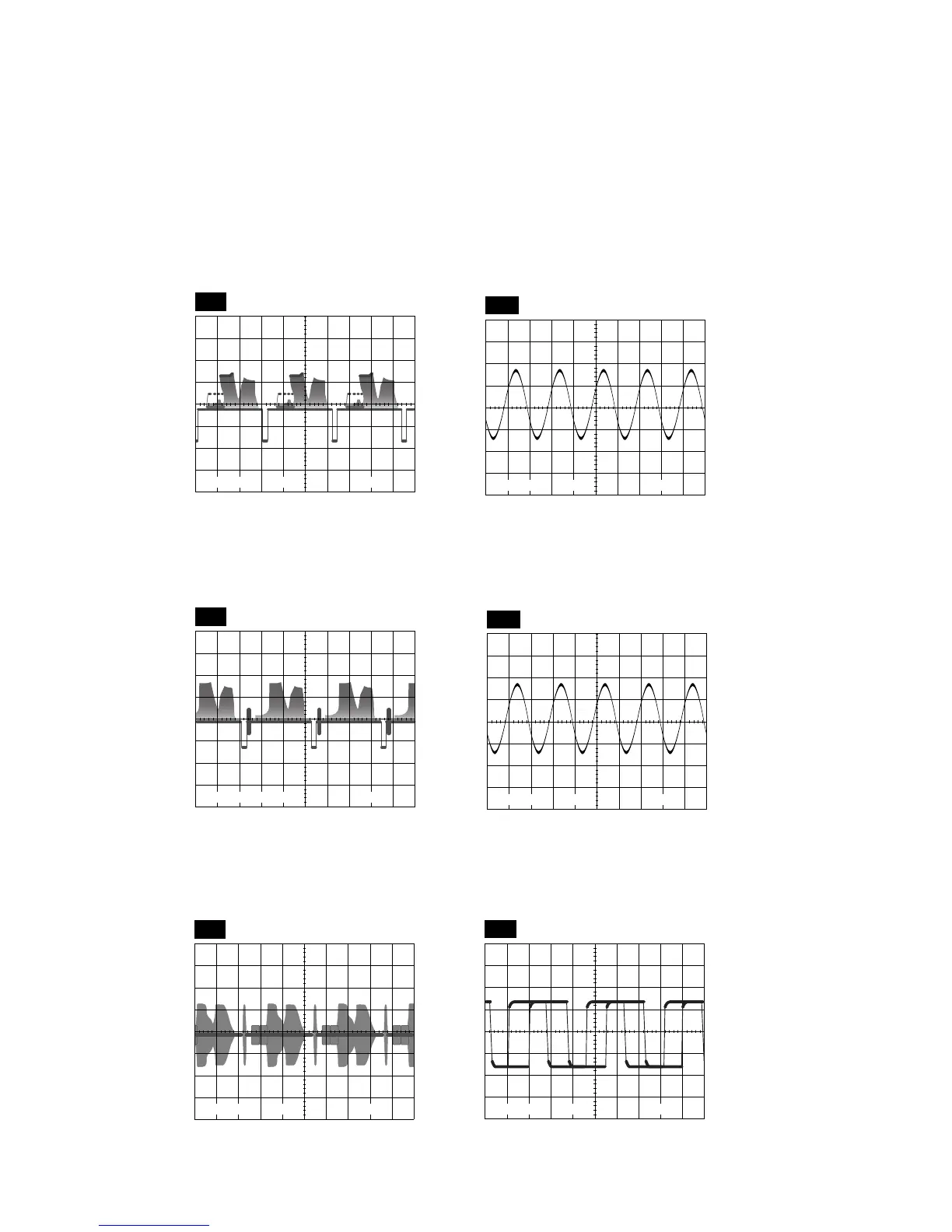

WAVEFORMS
NOTE:
Input
CD: 1kHz PLAY
(WF4~WF6)
DVD: POWER ON (STOP) MODE
(WF1~WF3)
WF6
SPDIF
Pin 18 of CN1601
1V 0.2usec
WF1
Pin 5 of CN1601
WF3
Pin 9 of CN1601
WF4
AUDIO-L
Pin 13 of CN1601
1V 0.5msec
WF5
AUDIO-R
Pin 15 of CN1601
1V 0.5msec
WF2
Pin 7 of CN1601
VIDEO-Y
0.2V 20usec
VIDEO-CVBS
0.5V 20usec
VIDEO-C
0.2V 20usec
