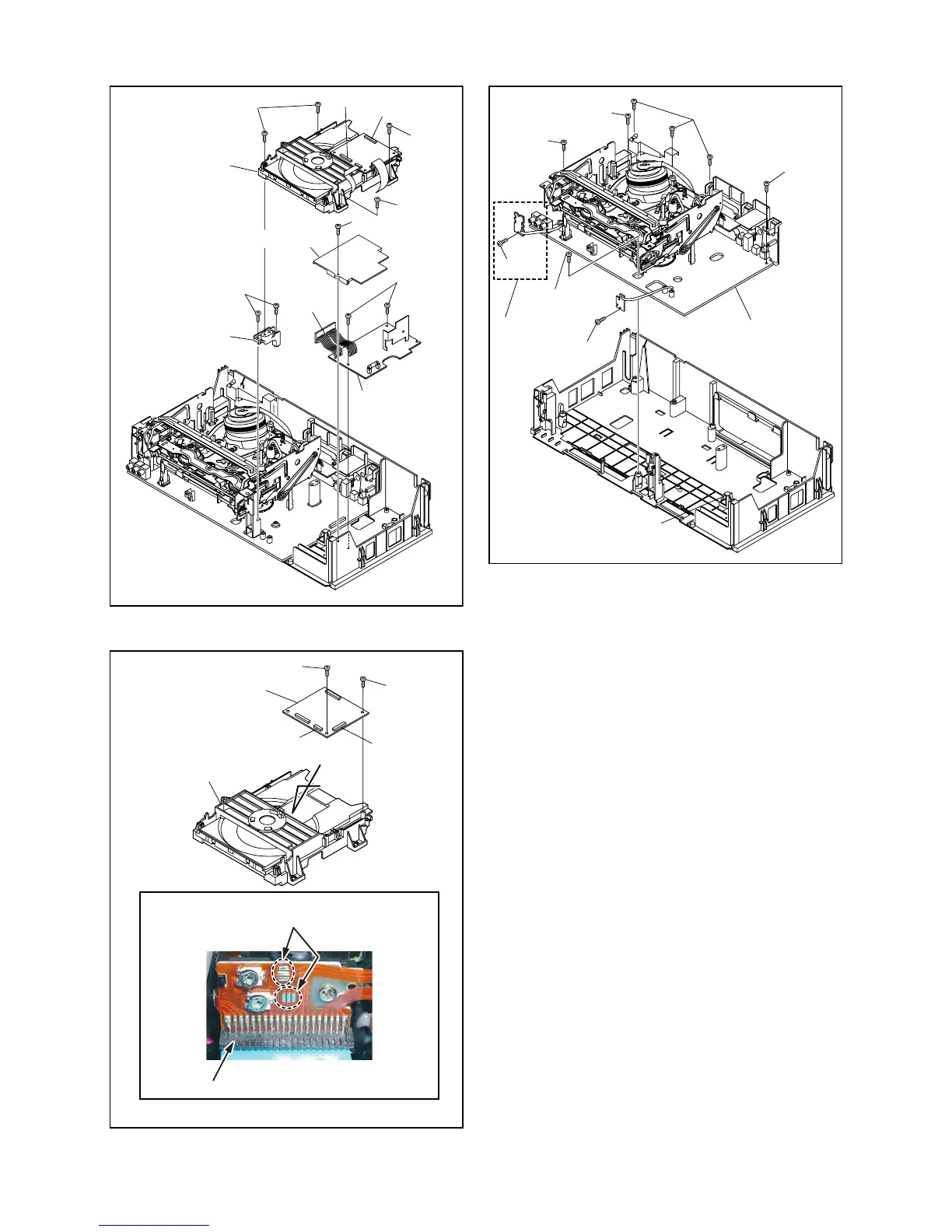

FUNAI DPVR-7630D - Page 15

1-6-3 E8B05DC
(S-3)
(S-5)
(S-4)
(S-6)
CN501
CN401
CN601
(S-3)
(S-3)
[5] Partition Plate
[6] Power
Supply CBA
[7] Loader
Holder
[4] DVD
Mechanism
Assembly
Fig. D3
CN201
CN301
(S-7)
[8] DVD Main
CBA Unit
DVD Mechanism
A
Fig. D4
(S-7)
View for A
Short the three short lands by soldering.
(Either of two places.)
Connector
(S-8)
(S-9)
(S-9)
(S-8)
(S-8)
[DBVR-7730D
only]
(L-3)
[9] VCR Chassis Unit
Fig. D5
(S-10A)
(S-10B)
