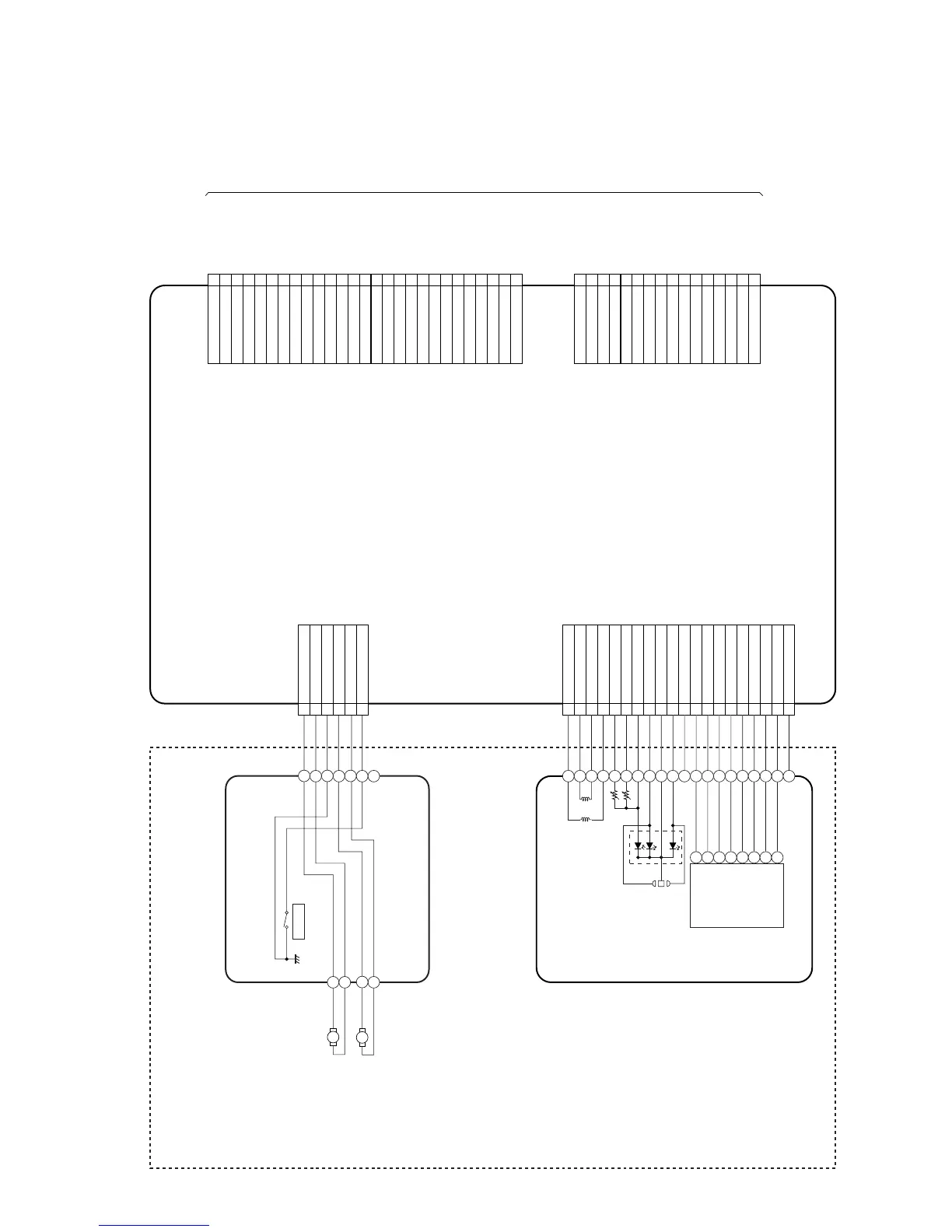

WIRING DIAGRAM < DVD SECTION >
DVD MECHANISM
DVD MAIN CBA UNIT
TO WIRING DIAGRAM <VCR SECTION>
TO MAIN CBA CL1051 (JW006) TO MAIN CBA CN1601 (JW007)
CN301
1 SP(+)
2 SP(-)
3 GND
4 SL(-) 5 SL(+)
6 TRAY-IN
TRAY-IN
DRIVE CBA
M
SLED MOTOR
M
SPINDLE MOTOR
CN401
PICK UP UNIT
CN201
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20
TS(+) TS(-) FS(-) CD-LD FS(+) GND(DVD-PD) GND(CD-PD) PD-MONI DVD-LD VREF E GND B DVD-P-ON+5V CD/DVD D A C F GND(LD)
DETECTOR
FSTS
7 9
11
2 3 6 5 4
CN601
EV+1.2V 4 EV+1.2V 5 EV+3.3V 6 EV+3.3V 7 EV+3.3V 8
DVD-P-ON+3.3V 9
DVD-P-ON+5V 10
EV+11V 12 EV+11V 11
GND 13 GND 14 GND 15 GND 16 GND 17 GND 18 GND 19
PWRCON 20
FP-DOUT(NU) 21
FP-DIN 22
FP-CLK 23 FP-STB 24
REMOTE-DVD 25
DVD-POWER 26
DVD-OPEN/CLOSE 27
DVD-PLAY 28
DVD-STOP 29
OUTPUT-SELECT 30
VIDEO-Y(I) 1
I/P-SW(NU) 2
ASPECT 3
VODEO-Pr/Cr 4
GND 5 GND 7 GND 9 GND 11 GND 15
VIDEO-Pb/Cb 6
VIDEO-Y(I/P) 8
VIDEO-C 10
DVD-AUDIO(L) 12
DVD-AUDIO-MUTE 13
DVD-AUDIO(R) 14
SPDIF 16
