Before You Start
EN

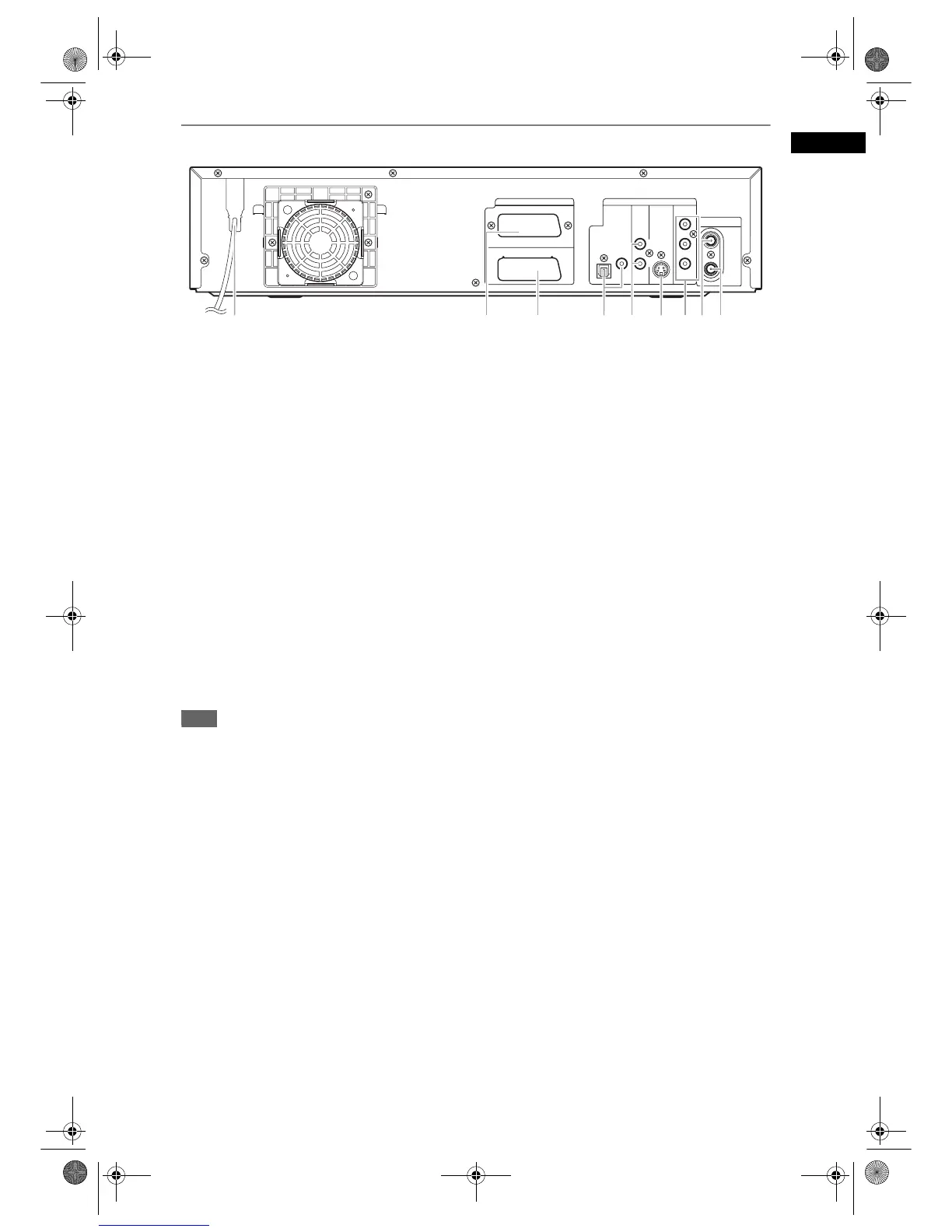

Rear Panel
1 Mains cable:
Connect to a standard AC outlet.
2 AV2(DECODER) (HDD/DVD/VCR):
Connect to VCR, camcorder, or other
Audio-Video equipment. Use a commercially
available Scart cable.
3 AV1(TV) (HDD/DVD/VCR):
Connect to the Scart jack on your TV. Use a
commercially available Scart cable.
4 DIGITAL AUDIO OUT (OPTICAL /
COAXIAL) jacks (HDD/DVD):
Connect to an amplifier with a digital input jack
such as a Dolby Digital decoder, DTS decoder or
MPEG decoder. Use a commercially available
Optical or Coaxial cable.
5 AUDIO OUT jacks (HDD/DVD):
Connect to the audio input jacks on your TV. Use
a commercially available Audio cable.
6 S-VIDEO OUT jack (HDD/DVD):
Connect to the S-Video input jack on your TV.
Use a commercially available S-Video cable.
7 COMPONENT VIDEO OUT jacks
(HDD/DVD):
Connect to an optional component video cable
through the component video input jacks of a TV.
8 ANTENNA IN (HDD/DVD/VCR):
Connect to an antenna cable.
9 ANTENNA OUT (HDD/DVD/VCR):
Connect to the Aerial jack on your TV, cable box
or direct broadcast system.
Use the supplied RF cable.
Note
• Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
• This unit does not have an RF modulator.
OUT
HDD
/
DVD
/
VCR
ANTENNA
AV2
(DECODER)
AV1
(TV)
AUDIO
OUT
L
R
Y
P
B
/C
B
P
R
/C
R
S-VIDEO
OUT
COMPONENT
VIDEO OUT
HDD/DVD
DIGITAL
AUDIO OUT
COAXIALOPTICAL
IN
8
7
2134 5 96
