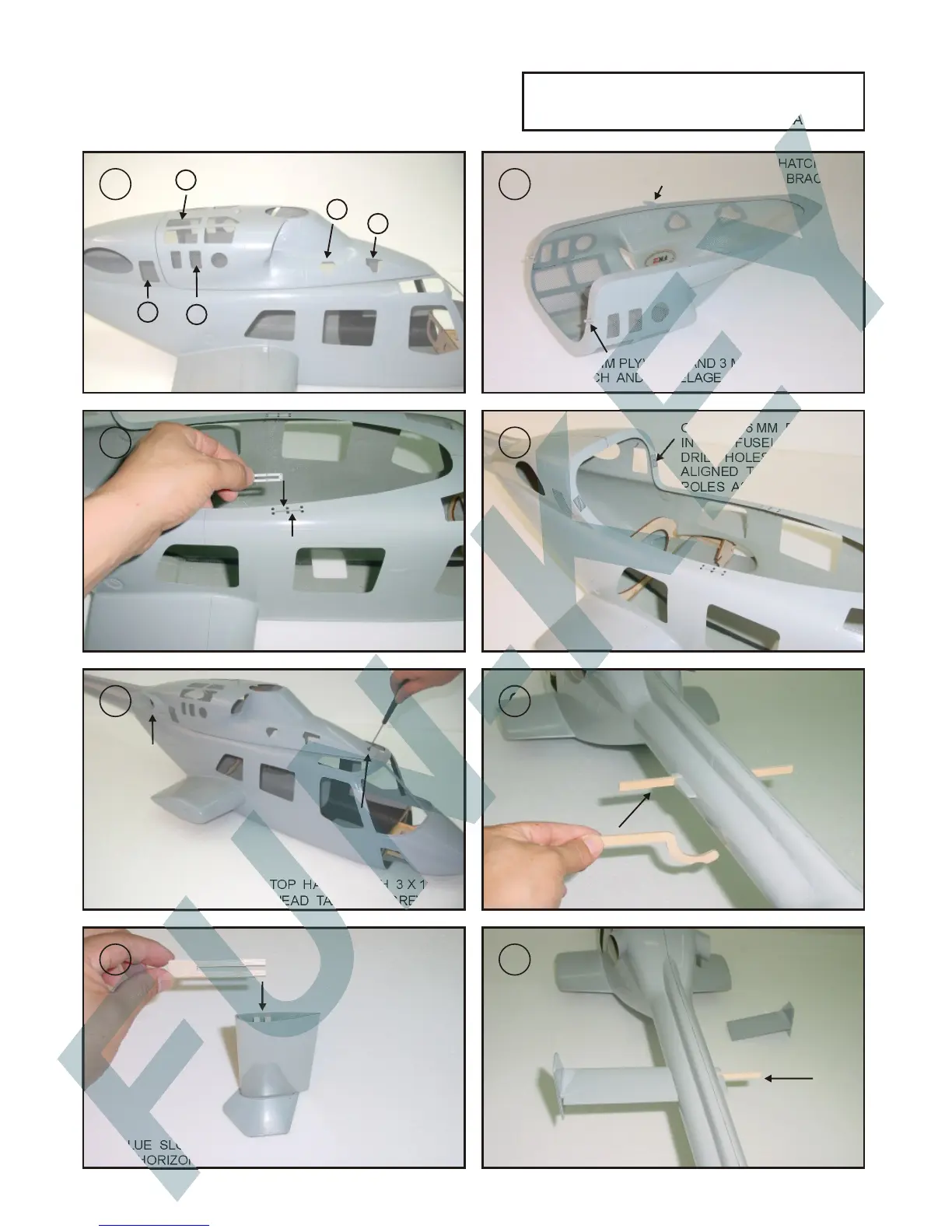

GLUE SLOTTED BALSA AND VERTICAL FINS
IN HORIZONTAL STAB. AS SHOWN.
GLUE PLYWOOD JOINER INSIDE FUSELAGE.
BELL 222
ENGINE SIZE:60
GENERAL INSTALLATION MANUAL
2
4
5
7
3
1
6
8
CUT 2.5x11 MM SLOTS IN THE HATCH.
GLUE THE PLASTIC MOUNTING BRACKETS
INSIDE.
MOUNT THE SLOTTED PLASTIC PLATES
WITH 1.4x4 MM FLAT HEAD TAPPING SCREWS.
GLUE 3x16 MM PLYWOOD
IN THE FUSELAGE.
DRILL HOLES WHICH
ALIGNED TO THE ALUM.
POLES DIAGRAM. AS IN
CUT MESH ACCORDING TO THE TEMPLATE
PROVIDED. GLUE MESH WITH CA INSIDE
FUSELAGE AND TOP HATCH.
GLUE EXHAUST
ON FUSELAGE.
GLUE 3x10x10MM PLYWOOD AND 3 MM ALUM. POLES
FOR TOP HATCH AND FUSELAGE ALIGNMENT.
A
B
C
D
E
P.1
NOTICE: USE EPOXY UNLESS STATED.
SAND INSIDE FUSELAGE WITH #180 SANDING
PAPER BEFORE PARTS GLUING IN PLACE.
GLUE AND ALIGN HORIZONTAL STABS.
FASTEN TOP HATCH WITH 3 X 12 MM
SOCKET HEAD TAPPING SCREW
