Funkwerk bintec R230a Technical Data

16 bintec User’s Guide Technical Data
2
bintec R230aw
2.5 Pin Assignments
2.5.1 Serial Interface
For connecting a console bintec R230aw provides a serial interface. Baud
rates between 1200 and 115200 Bit/s are supported.
The interface is connected through a 5-pole MiniUSB socket:

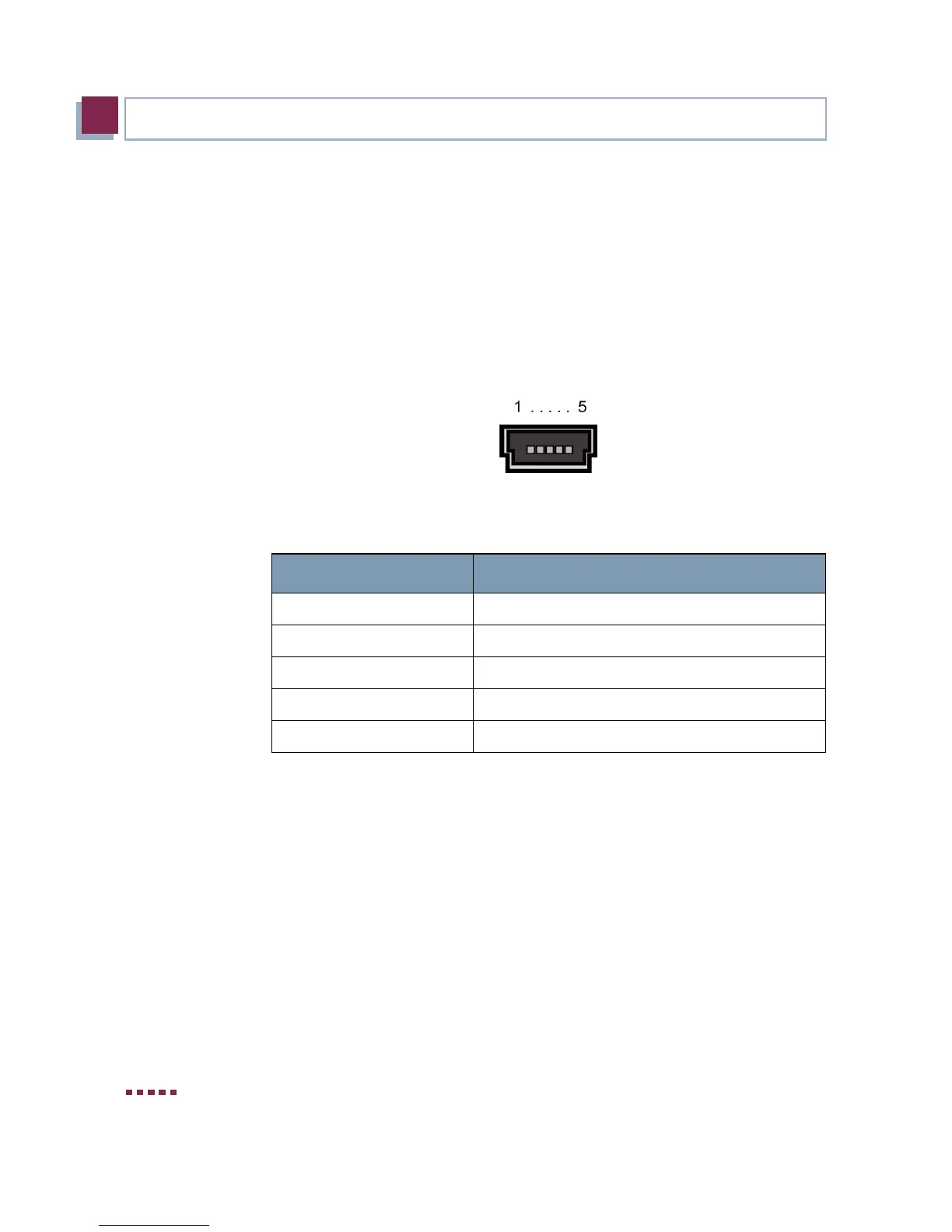

Figure 2-3: 5-pole MiniUSB socket
The pin assignment of the socket is as follows:
Table 2-3: Pin assignment of the serial socket
2.5.2 Ethernet Interface
bintec R230aw offers an Ethernet interface with integrated 4-port switch
for LAN connection. It can be used to connect single PCs as well as addi-
tional switches.
Pin Function
1 not used
2 Rx
3 GND
4 not used
5 Tx
