bintec R232bw
4.5 Pin Assignments
4.5.1 Serial Interface
For connecting a console bintec R232bw provides a serial interface. Baud
rates between 1200 and 115200 Bit/s are supported.
The interface is connected through a 5-pole MiniUSB socket:

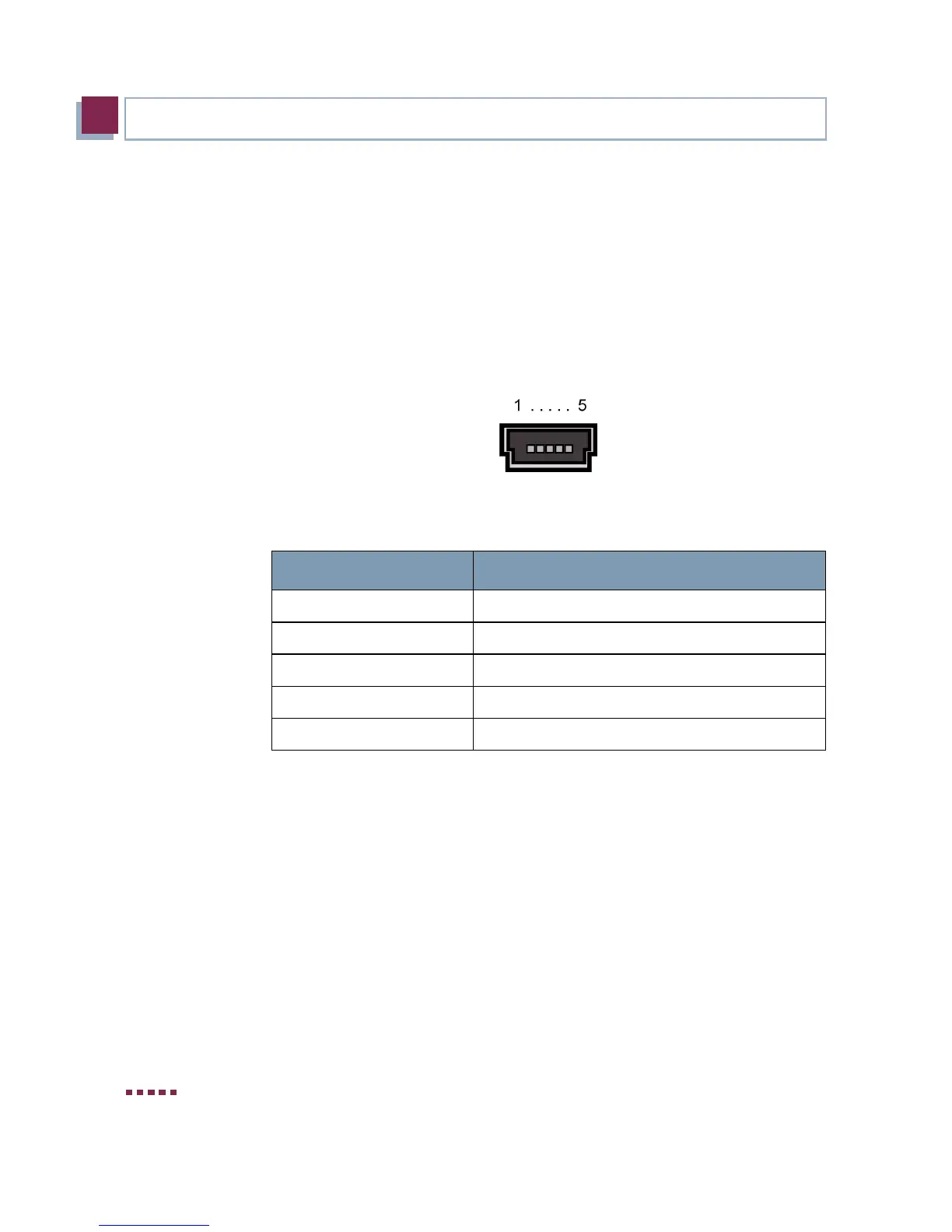

Figure 4-3: 5-pole MiniUSB socket
The pin assignment of the socket is as follows:
Table 4-3: Pin assignment of the serial socket
4.5.2 Ethernet Interface
bintec R232bw offers an Ethernet interface with integrated 4-port switch
for LAN connection. It can be used to connect single PCs as well as addi-
tional switches. Furthermore, the gateway is equipped with a fifth Ether-
net interface.
Pin Function
1 not used
2 Rx
3 GND
4 not used
5 Tx

Funkwerk bintec R230a Specifications

General

Brand	Funkwerk
Model	bintec R230a
Category	Gateway
Language	English
