2x
Short Tee
D-101
Insert Band Tube flush with through hole.
3

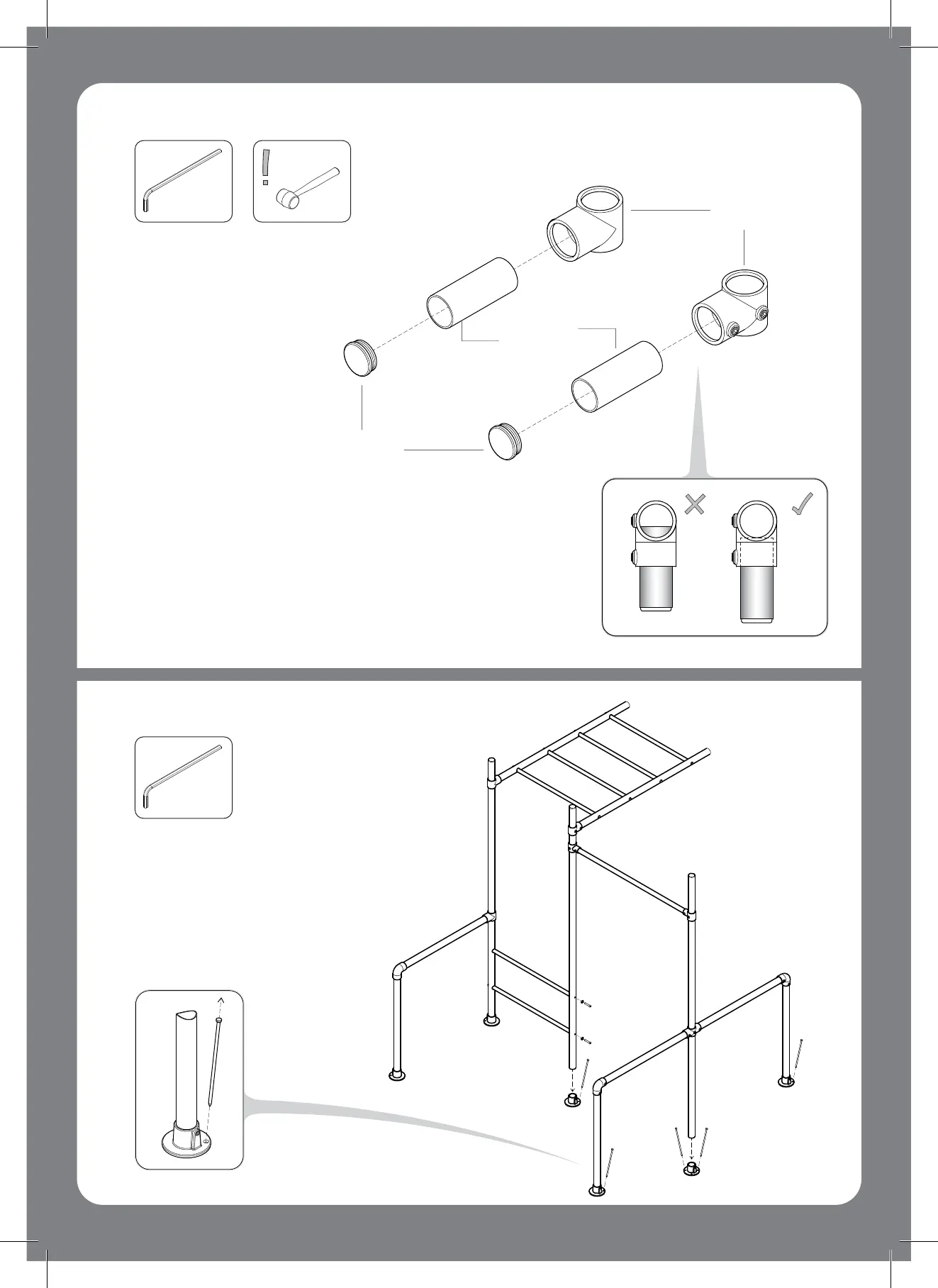

ASSEMBLE RESISTANCE BAND SUPPORTS
1. Tap plastic end caps into band tubes.
2. Insert tubes into short tees and tighten
grub screws.
Page 18
4
PREPARE FRAME FOR INSTALLATION
1. If your gym bar is already installed you will need
to remove a number of fittings in order to fit the
band supports. In most cases it will be easier
to install from the base, upwards.
2. Remove any pegs, bolts and fittings required
to install your resistance band supports.
2x
Plastic End Cap
50Dia. x 120mm
2x
Band Tube
Remove pegs.
To Next Page
