Base Plate
D-131
5x
Peg
1x
Straight Through
D-119
2x
Reducing Tee
D-101 D48-B34
1x
Base Plate
D-131-4 Hole
50Dia. x 2300mm
1x
Gym Leg Tube
33Dia. x 1150mm
1x
Chin up Tube
50Dia. x 900mm
2x
Twirly Tube
FITTINGS & HARDWARE
TUBES
A
B
C
D
1x
Plastic End Cap
The Gym bar add-on accessory can be
attached to any of the 4 outside poles A-D.
This could be a swing leg or adjustable leg.
In either case a twirly whirly must
be removed from the selected
leg and added to the
gym bar set-up.

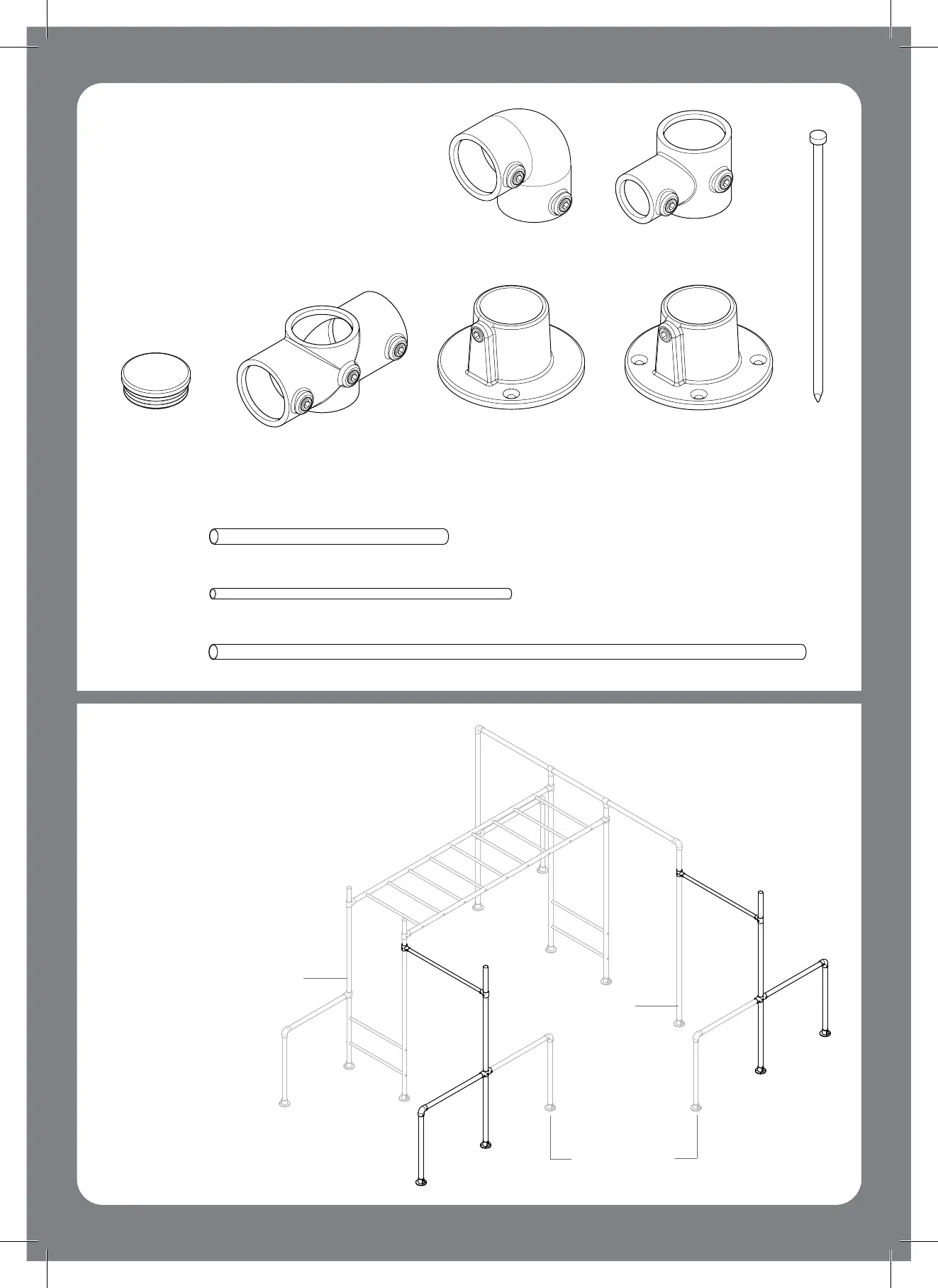

ASSEMBLY INSTRUCTIONS - GYM BAR (chin up bar)
1
CHECK INVENTORY - (not to scale)
Check that you have the following
items before assembling your
Funky Monkey Bars® Gym Bar.
Page 25
Adjustable leg.
(A & B)
Swing leg.
(C & D)
Relocated twirly
whirly bar from
leg (A & C)
SELECT DESIRED LOCATION OF GYM BAR (chin up bar)
(Assembly options shown on Chimp frame)
2
1x
Elbow
D-125
