3

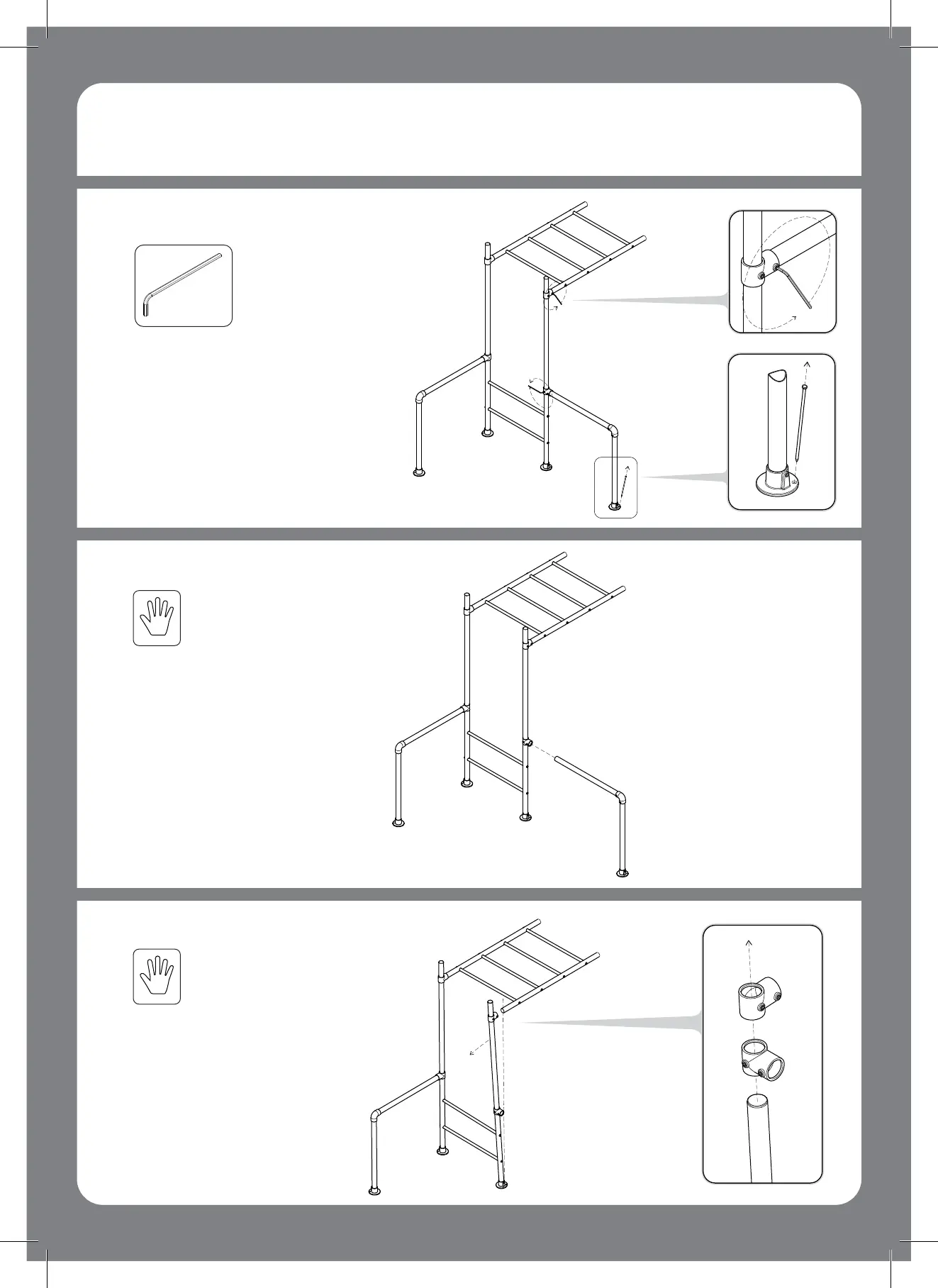

REMOVE TWIRLY WHIRLY BAR - PREPARATION
1. Loosen all grub screws on short tees A & B
2. Remove peg from twirly whirly base plate
on leg where gym bar is to be installed.
THE FOLLOWING GYM BAR ADD-ON ASSEMBLY INSTRUCTIONS WILL BE DEMONSTRATED ON LEG A (STEP 2)
Installation on a swing leg (D or C -step 2) also involves removing the twirly whirly bar, but requires the top
elbow to be removed rather than the monkey ladder bar short tee.
4
REMOVE TWIRLY WHIRLY BAR
Remove twirly whirly from
leg and place to one side
for later re-installation.
5
REMOVE SHORT TEES
Pull leg away from ladder and
remove both short tees A & B.
Keep to side for later re-installation.
