Furius FIX 201 - Technical Data and Table Symbols; Duty Cycle

11
Input Voltage
Frequency
Open Circuit
Voltage
Output Current
Range 220V
Output Current
Range 110V
Duty Cycle
at 40°*
110V / 220V – 1ph
(+/- 10%)
50/60 Hz
65V
20–200A
20-130 A
40%
Min. recommended fuse
Output
current
type
Insulation
class
IP
Weight
25A
DC
I.CL.H
IP 21 S
Kg
TECHNICAL DATA AND TABLE SYMBOLS
4.
Details
• Voltage 110/220V 50/60Hz.
• DC current output, recommended for 6013, 7018 1/8” electrodes.
• TIG scratch.
• ARC FORCE, HOT START and MMA.
• DIGITAL DISPLAY.
• 200A DC.
• 40% duty cycle at 40°C*.

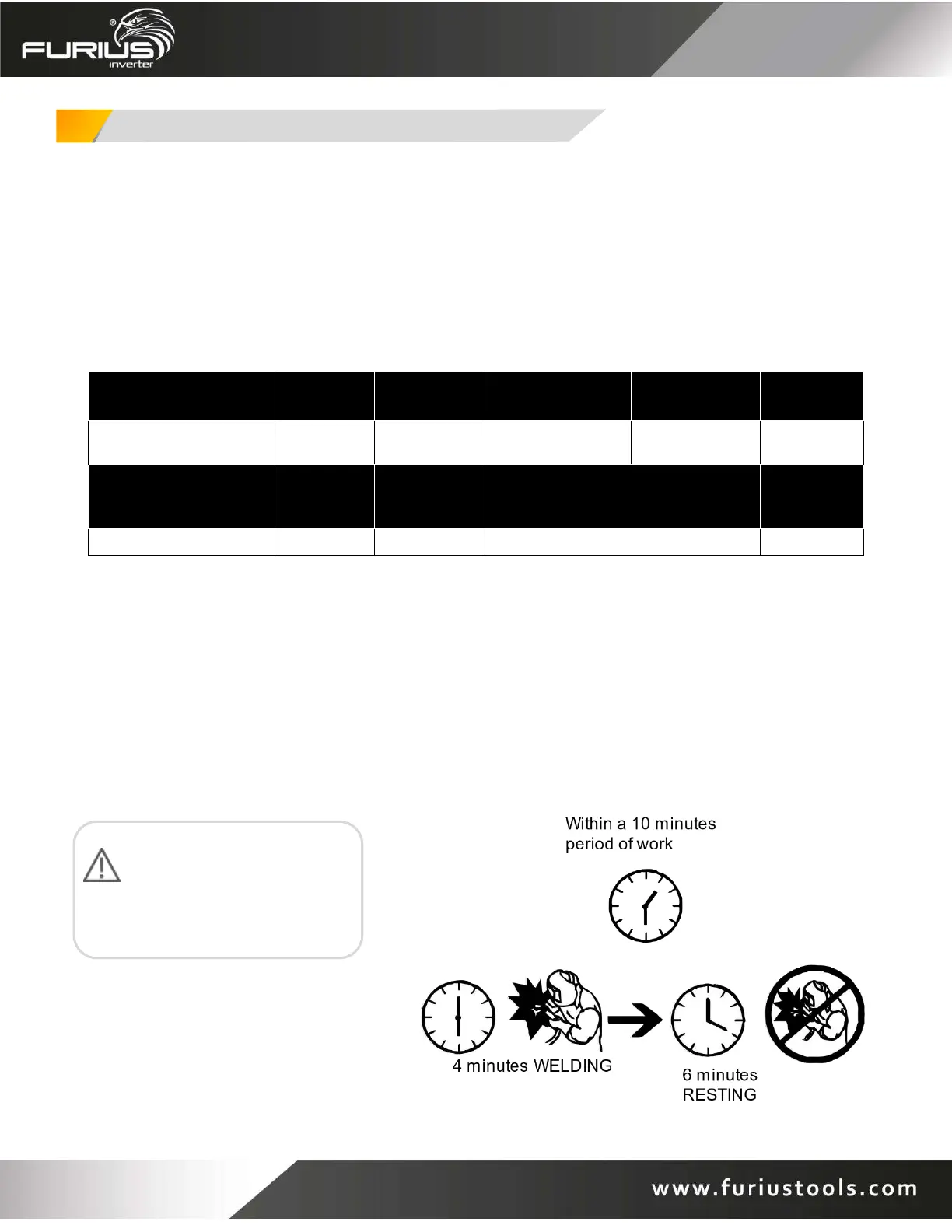

Duty cycle
Duty cycle is the percentage of time that the welding machine can deliver continuous welding
current, in a period of 10 minutes. In the Furius FIX 201 this value is 40% when the output current is
set at the maximum and the ambient temperature is 40 ° C. This percentage increases as the set
output current decreases and / or the ambient temperature decreases.
This means that the machine can deliver its maximum output continuously for 4 minutes, and after
this period the thermal control device will be activated, and the user must let the machine rest (it
should be left turned on) at least for 6 minutes. After this period, you can resume work normally.
The duty cycle may decrease if the ambient temperature rises above 40 ° C.
Warning! Do not exceed the
duty cycles established on the
tech plate included in the
welder and in this instruction.
