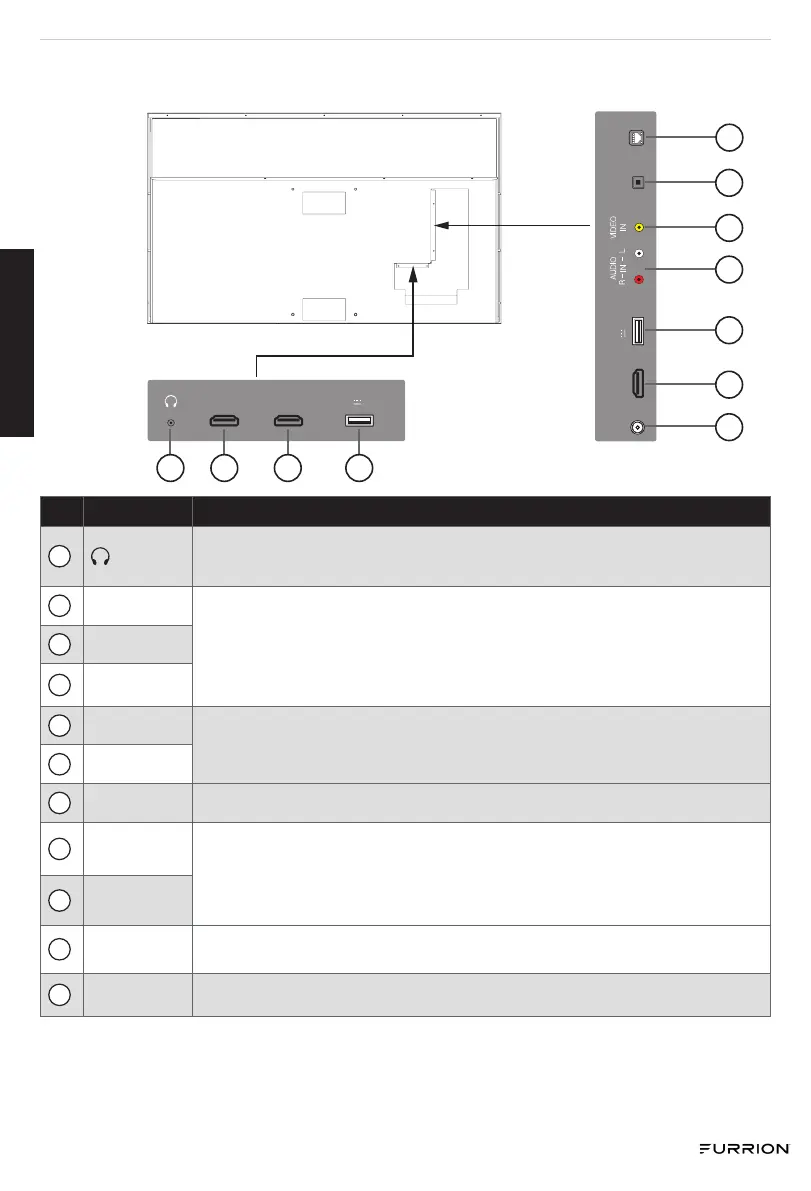

Rear Panel
LAN
OPTICAL
OUT
RF
IN
HDMI3
USB1
DC 5V 500mA
HDMI2
ARC
HDMI1
USB2
DC 5V 500mA
50˝ TV Shown
1 2 3 4
11
10
8
9
7
6
5
No. I/O port Description
1
Connect a stereo headphone for private listening.
2
HDMI 1
Connect to the HDMI OUT port of a DVD Player, Games Console, Cable Box or
other HDMI device.
ARC (Audio Return Channel)
When connected with a HDMI 1.4 cable to an ARC compatible audio system, the
TV links with the device to give extra audio functionality.
3
HDMI 2 ARC
6
HDMI 3
4
USB1
Connect to portable USB device such as USB flash/hard drive.
7
USB 2
5
RF IN
Connect to external modem or network access equipment.
8
AUDIO IN
(R-L)
Connect to the COMPOSITE VIDEO/AUDIO OUT ports of a DVD Player, Cable
Box or other compatible devices.
9
VIDEO IN
10
OPTICAL
OUT
Connect to an AV Receiver for high quality digital audio.
11
LAN
Connect to external modem or network access equipment.
English
C
CD-0007276 Rev: 07-24-23
- 11 -
