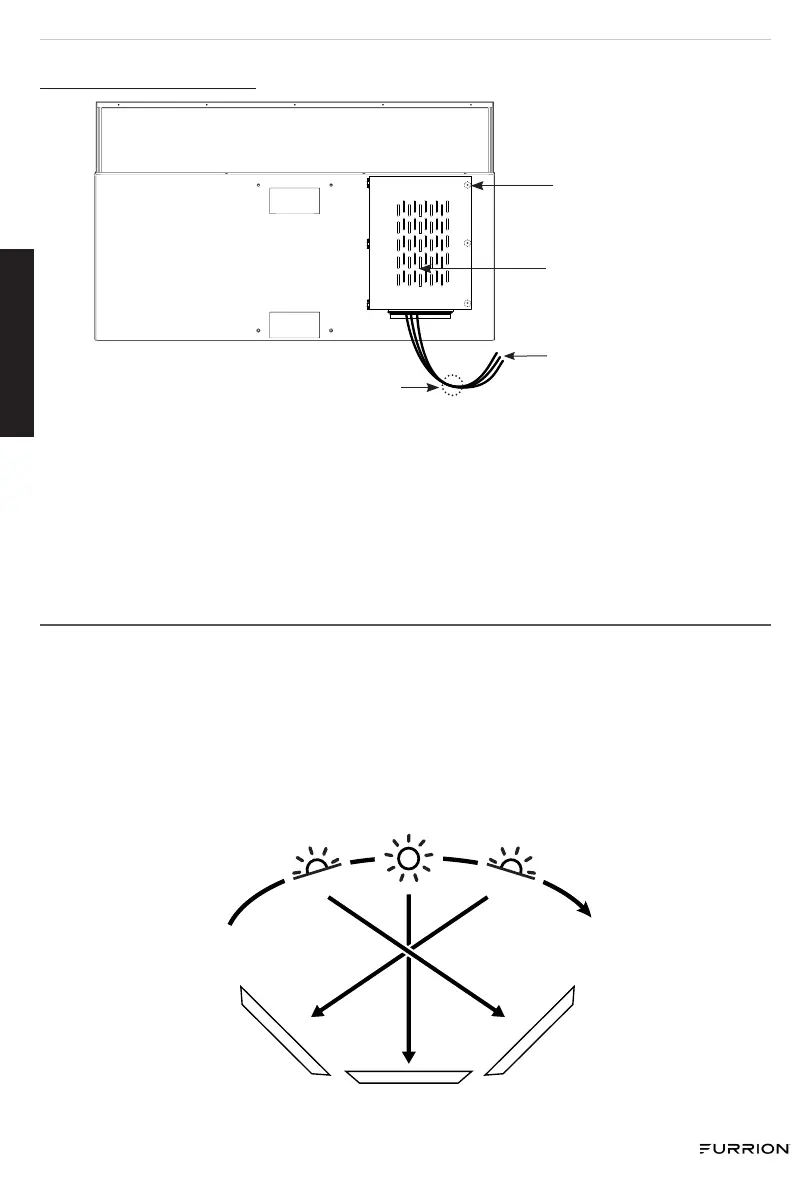

Cable Management
50˝ TV Shown
Cables
Drip Loop
Thumb Screws x 3
Media Bay
– After all connections are completed, lead all connecting cables downwards
through the duct at the bottom of the media bay.
– Leave a drip loop when cables enter the compartment. This will prevent water
from dripping down the cord and possibly entering the media bay area.
– Close the media bay and tighten the thumb screws to avoid moisture from
entering the media bay and coming into contact with the connection points.
INSTALLATION
● The TV should be installed in an area where no direct sunlight hits the LCD screen.
Before mounting your TV, consider the time of the day you would watch the TV
the most and then observe the movement of the sun at different times of the day
to find an optimal location without direct sunlight. Keep in mind that the position of
the Sun may differ at different times of the year. If you intend to mount the TV in an
area with direct sunlight, consider adding a sunshade / awning / gazebo to ensure
the TV is protected from prolonged exposure.
