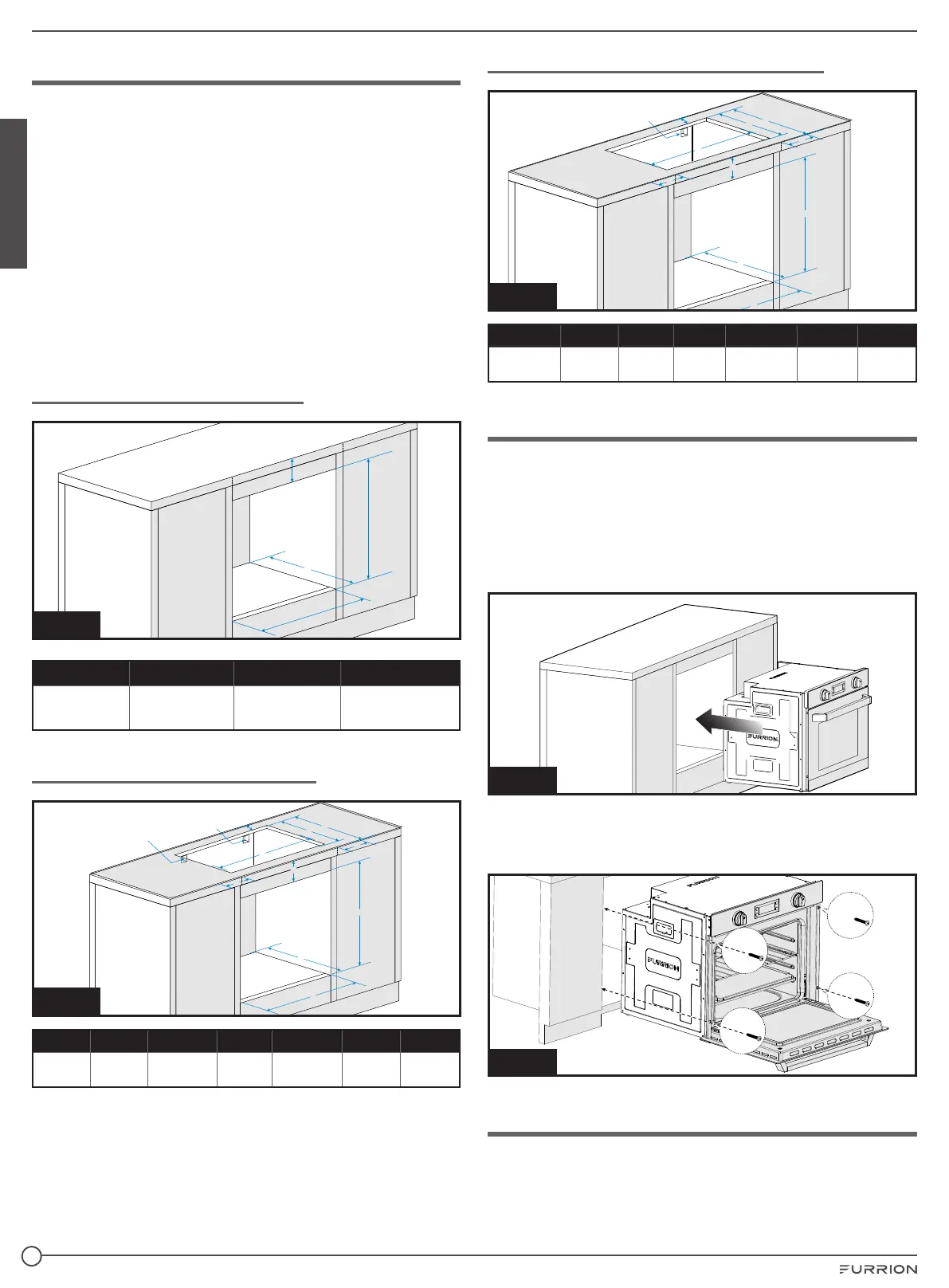

Cabinet Cutout Instructions
● For proper operation of your cooking appliance, the
cabinet must be properly constructed and squared with
respect to the counter top and the cabinet face.
● For proper operation of these units, the cabinet must be
level and the bottom of the appliance must be supported.
NOTE: When use this appliance together with Furrion gas
cooktop or induction cooktop, please ensure the cabinet
cutout must be located with respect to the minimum
clearance to combustible materials (minimum clearances
from combustible materials: 2 inches from the sides and 30
inches from the top if a cooktop is installed). When planning
the location, consider curtains or other combustible materials
installed around the oven. The minimum distance between
the floor and the bottom of the cutout opening is Min. 9¼”
(235mm).
Oven without Cooktop (Fig. 1)
A
B
C
D
Fig. 1
A B C D
20½”
525mm
23½”
597mm
Min. 4”
101mm
Min. 16⅛”
522mm
Oven with Gas Cooktop (Fig. 2)
D
El ect ric al C ord Cu tout
Ga s P ipe Cu tout
El ect ric al C ord Cu tout
D
F
D
C
A
B
E
B
G
Fig. 2
A B C D E F G
20½”
525mm
23½”
597mm
Min. 4”
101mm
Min. 2”
51mm
Min. 16⅛”
522mm
14⅜”
365mm
16½”
419mm
Oven with Induction Cooktop (Fig. 3)
D
D
F
D
C
A
E
B
D
El ect ric al C ord Cutout
Gas Pipe Cutout
El ect ric al C ord Cutout
G
Fig. 3
A B C D E F G
20½”
525mm
23½”
597mm
Min. 4”
101mm
Min. 2”
51mm
Min. 16⅛”
522mm
14¼”
362mm
16½”
419mm
Oven Installation (without Cooktop)
When the cabinet has been prepared according to the
dimensions given.
1. Remove the oven from its packaging carefully and discard
the plastic and foam packaging.
2. Slide the oven into the cabinet opening by grasping the
two built in handles on each side of the oven. Do not use
the handle on the door for lifting the oven. (Fig. 4)
Fig. 4
3. Verify the oven is level from side to side and front to rear.
4. Open the oven door and securely fasten the oven in place
with four screws (Not provided). (Fig. 5)
Fig. 5
Oven Installation (with Cooktop)
NOTE: This oven is designed to be able to be used
with a Furrion gas or induction cooktop,, please refer to
corresponding cooktop instruction manual on how to
construct the cabinet when a cooktop is installed.
