APPENDIX
AP-20

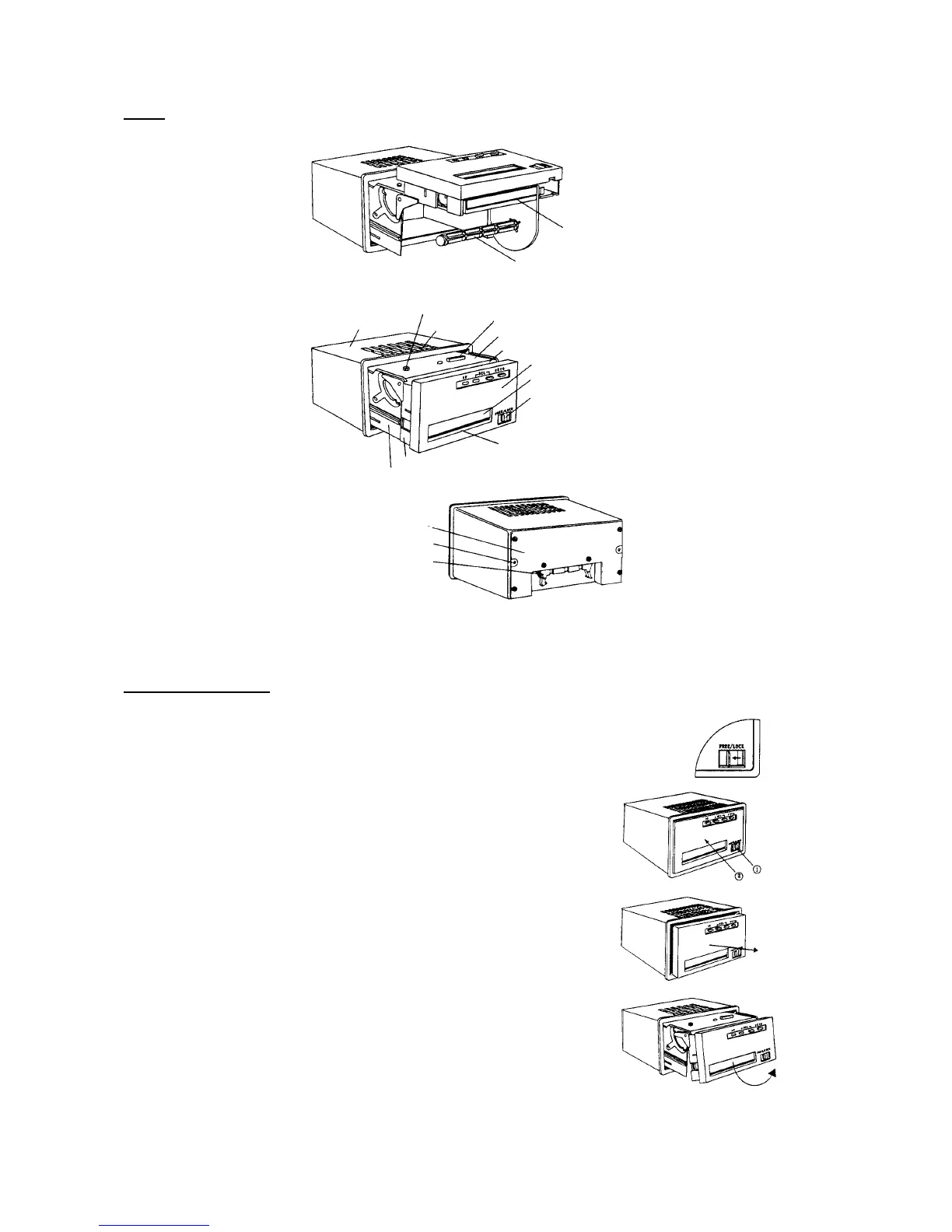

Parts
Paper feed slot
Shaft
VR for adjusting printing density
Case
Vent
DIP switch
Guard plate A
Front panel
Guard plate B
Cutter
Lock lever
Rear panel
Screw hole for fixing case
I/O connector
4. Operation
Loading roll paper
1) Unlocking the Slide lock
Slide the Lock lever at the right bottom of the panel to
the FREE position to unlock the front panel1.
2) Pushing the panel
Push the center of the front panel about 2 mm inward.
Release, and panel pops out by about 10mm 2.
3) Pulling out the panel
Place thumb and index finger at top and bottom of
panel and pull the panel forward until you feel some
resistance.
4) Pulling the panel upward
Pull the panel upward. When you hear a click,
continue pulling the panel upward to 90° until you hear
a click again.
