Hull Unit
CSH-8041
(400 mm travel)
CSH-8040 (600 mm travel)
81 kg 178.6 lb
82 kg 180.8 lb
1650 65.0"
<600 mm travel>
1250 49.2"
<400 mm travel>
250 9.8"
<600 mm travel>
450 17.7"
<400 mm travel>
858 33.8"
<600 mm travel>
703 27.7"
<400 mm travel>
750 29.5"
<600 mm travel>
550 21.7"
<400 mm travel>
600 23.6"
<600 mm travel>
400 15.7"
<400 mm travel>
φ343
13.5"
323
12.7"
Control Unit
CSH-5211
300 11.8"
4- 5
30
21.5
0.9"
75 3.0"
116 4.6"
19.5
0.8"
60 2.4"
42 1.7"
350 13.8"
3.5 kg 7.7 lb
Transceiver Unit
CSH-8030-8L
37 kg 81.6 lb
3-φ12
165
6.5"
165
6.5"
165
6.5"
165
6.5"
425
16.7"
689 27.1"
736 29.0"
715 28.1"
710 28.0"
40
1.6"
308 12.1"
376 14.8"
300 11.8"
4- 7
10
0.4"
385 15.2"
403 15.9"
349 13.7"
31
1.2"
23 0.9"
8 0.3"
7
0.3"
98.5 3.9"
Processor Unit
CSH-5210
3.4 kg 7.5 lb
option or local supply
* For further info, contact our depot

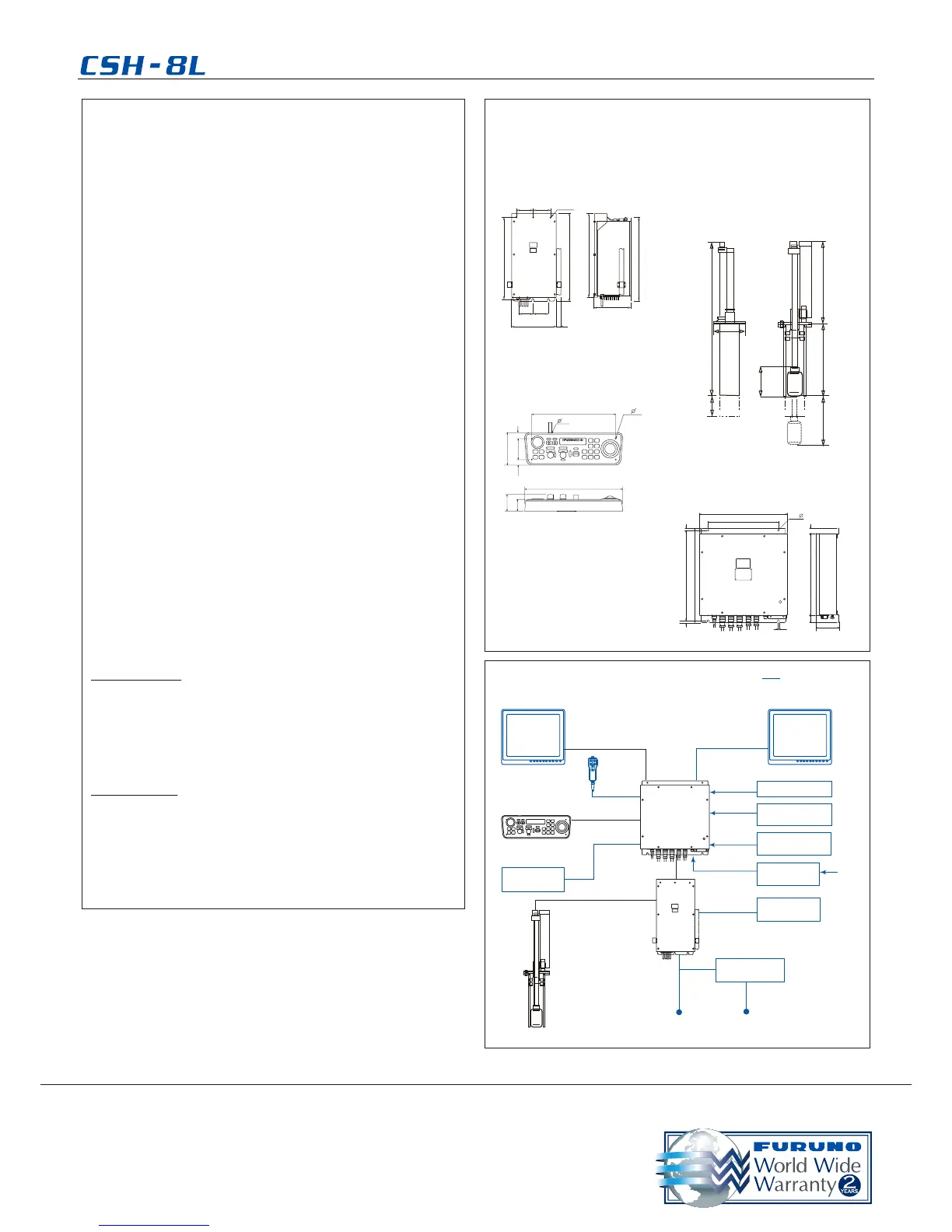

Interconnection Diagram
Dimentions
11091SS Printed in Japan
Catalogue No. E-406a
FURUNO ELECTRIC CO., LTD.
Nishinomiya, Hyogo, Japan
www.furuno.co.jp
FURUNO U.S.A., INC.
Camas, Washington, U.S.A.
www.furunousa.com
FURUNO
(
UK
)
LIMITED
Havant, Hampshire, U.K.
www.furuno.co.uk
FURUNO FRANCE S.A.S.
Bordeaux-Mérignac, France
www.furuno.fr
FURUNO ESPAÑA S.A.
Madrid, Spain
www.furuno.es
FURUNO DANMARK AS
Hvidovre, Denmark
www.furuno.dk
FURUNO NORGE A/S
Ålesund, Norway
www.furuno.no
FURUNO SVERIGE AB
Västra Frölunda, Sweden
www.furuno.se
FURUNO FINLAND OY
Espoo, Finland
www.furuno.
FURUNO POLSKA Sp. Z o.o.
Gdynia, Poland
www.furuno.pl
FURUNO EURUS LLC
St. Petersburg, Russian Federation
www.furuno.com.ru
FURUNO DEUTSCHLAND GmbH
Rellingen, Germany
www.furuno.de
FURUNO HELLAS S.A.
Piraeus, Greece
RICO
(
PTE
)
LTD
Singapore
www.rico.com.sg
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
All brand and product names are registered trademarks, trademarks or service marks of their respective holders
DC-AC Inverter
TR-2451
Transceiver Unit
CSH-8030-8L
Processor Unit
CSH-5210
100/115/200
/220/240 VAC
24 VDC
Control Unit
CSH-5211
Remote Controller
CSH-7040
E/S Interface
VI-1100A
Current Indicator/
Speed Log
GPS/DGPS
15/30/50 m
5 m
2.5 m
5/10 m
5/10 m
NMEA
E/S
Loudspeaker
SEM-21Q
Satellite compass
SC-30*/50/110
Display Unit
MU-150HD
or commercial
monitor
Hull Unit
CSH-8040
(600 mm travel)
CSH-8041
(400 mm travel)
Motion Sensor
MS-100
5/10/15 m
Display Unit
MU-150HD
or commercial
monitor
SPECIFICATIONS OF
PROCESSOR UNIT
Display Mode Single scan, Echo sounder combination* (single
scan and echo sounder), Audio combination
(single scan and audio pictures)
*Echo sounder/Fish nder required
Colors Scan/echo: 16 colors, mark: 1 color
Mark Own ship’s track, Heading line, Direction/
distance, Fish school, Event, Target lock
TRANSCEIVER UNIT
Sonar Frequency 85 kHz
Range Scales 50, 85, 100, 150, 200, 250, 300, 350, 400, 450,
500, 600, 800, 1000, 1200, 1600 m
Pulselength 0.5 to 20 ms (depending on range scales)
Ship Speed 18 Kn max (raise/lower operation up to 16 Kn)
Tilt Manual control: 0° to 55° in 1° steps
Automatic tilt scan: 4° to 52°
Audio Search Sector: 20°, 40°, 80° and 120° selectable
Audio Output: 2 W, Frequency, 1 kHz
INTERFACE
Input Data NMEA 0183 Ver1.5/2.0/2.2
GGA, RMC, GLL, VHW, VTG, HDG, HDM, HDT,
DPT, DBT, DBS, CUR, VDR, GLC, GTD, MTW,
RMA
Log, E/S, KP Speed log pulse (contact signal): 200/400 pulse/NM
Sonde, E/S signal: VI-1100A applicable
External KP: Current loop, 0 to 12V
Output Data NMEA 0183 Ver1.5/2.0/2.2
TLL
Video Signal Output
Method RGB analog, separated synchronization, XGA (VESA)
Resolution 1024 x 768, 65.0 MHz clock
POWER SUPPLY
100/115/200/220/240 VAC, (Standard supply)
50-60 Hz, 0.4 kVA (Raise 1 kVA)
24 VDC (with optional DC-AC inverter)
EQUIPMENT LISTS
Standard Supply
1. Processor Unit CSH-5210
2. Control Unit CSH-5211
3. Transceiver Unit CSH-8030-8L
4. Hull Unit 400 mm or 600 mm travel
5. Installation Materials,
Accessories and Spare Parts
NOTE: Display Unit is not supplied as standard.
Optional Supply
1. DC-AC Inverter TR-2451
2. E/S Interface Unit VI-1100A
3. Retractable Tank OP10-5
4. Speaker SEM-21Q
5. Transducer Cable Extension Kit
6. Motion Sensor MS-100
7. Remote Controller CSH-7040
